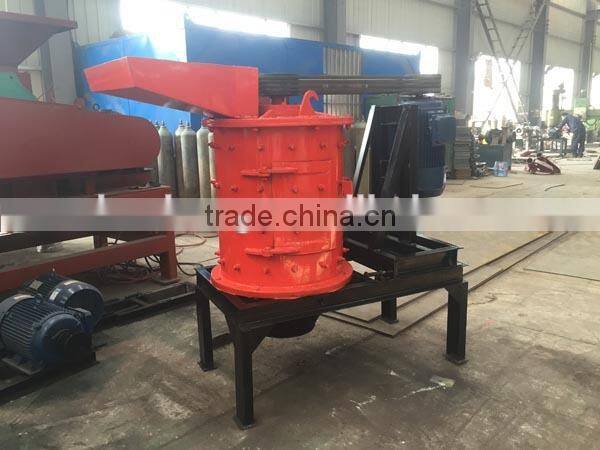

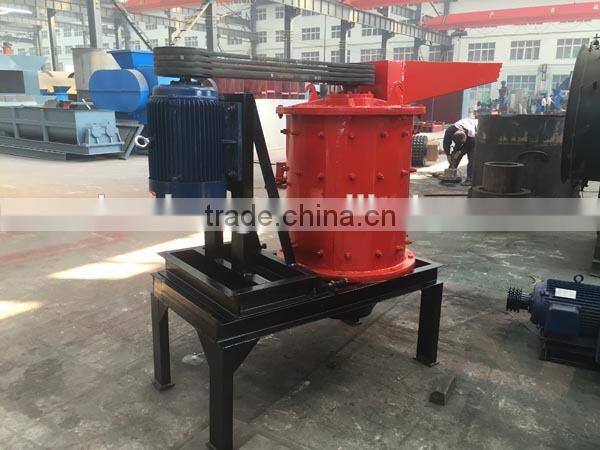

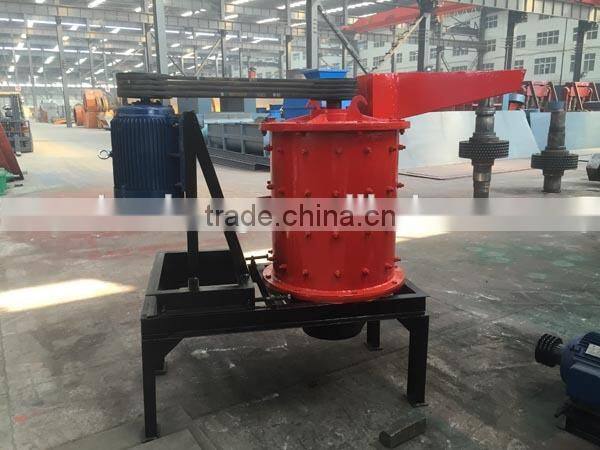

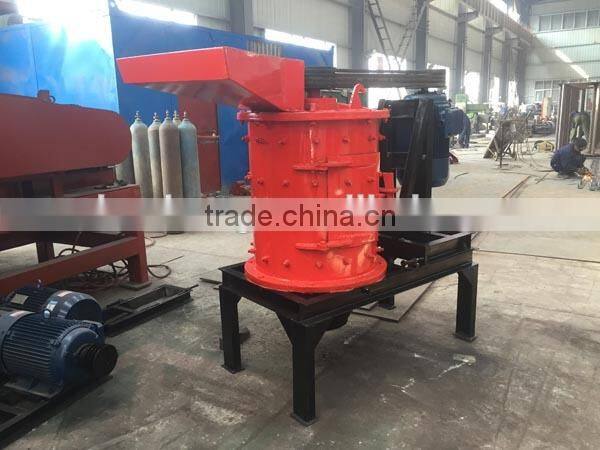

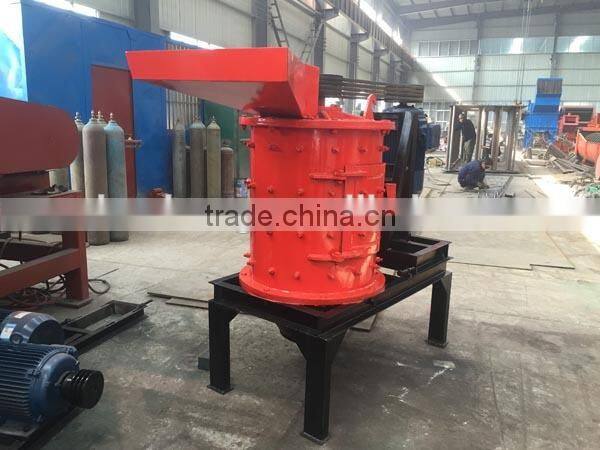

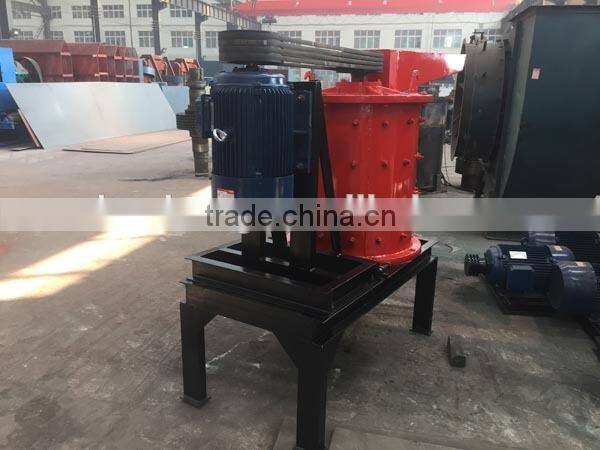

high quanlity vertical crusher, vertical shaft impact crusher price for sale
- 50 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T Credit Card PayPal
You May Like
-
High quality and high efficiency fine crusher for sale
-
Features and Benefits sand recycling machine
-
high recovery rate fine sand recycling machine, Features and Benefits sand recycling machine
-
Simple structure Fine sand recyling machine,sand collecting machine
-
China supplier fine sand recyling machine,sand collecting machine benefits
-
high recovery rate fine sand recycling machine,high efficiency sand recycling machine
Product Details
Condition | New | Type | Cone Crusher | |
Application | limestone,riverstone,pebbles,dolomite,coal,slag,etc. | Power(W) | 75kw | |
Capacity(t/h) | 40-70t | Place of Origin | Henan, China | |
Brand Name | Huahong | Model Number | PFL -1250 | |
Dimension(L*W*H) | 2800*1600*2100mm | Weight | 0.6-4.2t | |
Certification | ISO | Warranty | One Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
standard export package
Product Description
Specifications
1.Simple structure,low operation cost and working noise
2.High broken rate
3.Especially for hard material
Descriptions:
It is optimal designed on the basis of advanced fine crushing technology both at home and abroad. It is mainly adapted to medium-sized raw materials and clinkers, at the same time can also be used for fine-crush dolomite, coke precious stones, lead-zinc, serpentine, blast furnace slag, coal gangue , phosphate rock materials with hhh, especially suitable for hard limestone, dolomite, granite, basalt artificially build sand or highway pavement stone processing.
Working principles of composite crusher
1.Materials fall into the high-speed rotation impeller from the above of machine, under the action of high-speed centrifugal force,
2.It has high-speed impact with another umbrella form materials which flow around the impeller.
3.After they attack each other, then discharged from the bottom, it forms close-circuit and with many times circulation, it can achieve the required product size by screening equipment controlling.
Features of composite crusher
1.Simple structure low operation cost. Using the principle of stone strike stone , smaller wear.
2.Broken rate is high, energy conservation
3.With fine, coarse grinding function
4.Little affected by material moisture content, humidity can reach 8%.
5. Working noise is less than 75 db, less dust pollution.
6. Suitable for breaking medium hard, especially hard materials.
7. Products are cubic, packing density is big, a very small iron pollution
Main technical parameters
Model | Capacity (t/h) | Feeding Grain (mm) | Material-in Size (mm) | Main Shaft Speed (r/min) | Power (KW) | Overall Dimensions (LxWxH) (mm) |
PFL-600 | 5-10 | 100 | 0-5 | 934 | 15 | 1800x720x1750 |
PFL-800 | 10-20 | 100 | 0-5 | 934 | 22 | 2100x1200x1700 |
PFL-1000 | 20-40 | 120 | 0-5 | 769 | 45-55 | 2600x1400x1900 |
PFL-1250 | 40-70 | 150 | 0-5 | 530 | 75 | 2800x1600x2100 |
PFL-1500 | 70-110 | 180 | 0-5 | 495 | 90-110 | 3100x1900x2200 |
PFL-1750 | 130-190 | 200 | 0-5 | 424 | 132-160 | 3710x2360x2390 |
PFL-2000 | 200-260 | 220 | 0-5 | 370 | 185 | 4100x2660x2620 |
Packing details | standard export packing; nude packing, wood case package |
Delivery time | within 5 - 25 days after order confirmed |
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi-Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification. It has won the glory of provincial superior enterprise. Huahong company's quality of products have been in a leading and dominant position in machinery industry of China. Its high-quality products and first-class services were also have been praised by overseas and domestic customers.
