Introduction of dryer :
1. rotary dryer has a strong capacity of anti-overload. It can dry a lot with few fuel consumption and drying cost.
2. It chooses the downstream method for drying, that is, the smoke and wet materials inter into the dryer in the same entrance and get a high evaporation. But the temperature of the exit of the dryer is low. Therefore, it has a high efficiency of heating.
3. It can change the Parameters according to different quality of the materials so as to form a stable full section in the cylinder of the dryer and make a fuller change for materials and heat.
4. It has new equipment for giving and excreting materials. As a result, it avoids the phenomenon of plug, discontinuous and back of materials giving. It also light the burden of the dust eliminating system.
5. The new inner construction strengthen the use of cleaning and heat passing to the separated materials. It also avoids adhesions in the inner wall of the cylinder and has a better adaptability for water and adhesions of the materials.
6. The Coal Slime rotary dryer shows the feature of no help from horizontal push. It decreases the abrasion of roller block and makes the movement of the cylinder stable and reliable.
Working principle :
The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.
Main technical parameter:
|
Model (mm) |
Obliquity(%) |
Rotation speed (r/min) |
Feeding temperature (degree) |
Power (kw) |
Capacity(t/h) |
Weight (t) |
Ø600x6000 |
3-5 |
3-8 |
<=700 |
3 |
0.5-1.5 |
2.9 |
Ø800x8000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.0 |
3.5 |
Ø800x10000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.5 |
4.5 |
Ø1000x10000 |
3-5 |
3-8 |
<=700 |
5.5 |
1.0-3.5 |
5.6 |
Ø1200x10000 |
3-5 |
3-8 |
<=700 |
7.5 |
1.8-5 |
14.5 |
Ø1200x12000 |
3-5 |
3-8 |
<=700 |
11 |
2-6 |
14.8 |
Ø1500x12000 |
3-5 |
2-6 |
<=800 |
15 |
3.5-9 |
17.8 |
Ø1800x12000 |
3-5 |
2-6 |
<=800 |
18 |
5-12 |
25 |
Ø2200x12000 |
3-5 |
1.5-6 |
<=800 |
18.5 |
6-15 |
33 |
Ø2200x18000 |
3-5 |
1.5-6 |
<=800 |
22 |
10-18 |
53.8 |
Ø2200x20000 |
3-5 |
1.5-6 |
<=800 |
30 |
12-20 |
56 |
Ø2400x20000 |
3-5 |
1.5-5 |
<=800 |
37 |
18-30 |
60 |
Ø3000x20000 |
3-5 |
1.5-5 |
<=800 |
55 |
25-35 |
78 |
Ø3000x25000 |
3-5 |
1.5-5 |
<=800 |
75 |
32-40 |
104.9 |
English standard parameters:
|
Model (inches) |
Obliquity(%) |
Rotation speed (r/min) |
Feeding temperature (degree) |
Power (kw) |
Capacity(t/h) |
Weight (t) |
Ø24''x240'' |
3-5 |
3-8 |
<=700 |
3 |
0.5-1.5 |
2.9 |
Ø32''x320'' |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.0 |
3.5 |
Ø32''x400'' |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.5 |
4.5 |
Ø40''x400'' |
3-5 |
3-8 |
<=700 |
5.5 |
1.0-3.5 |
5.6 |
Ø48''x400'' |
3-5 |
3-8 |
<=700 |
7.5 |
1.8-5 |
14.5 |
Ø48''x480'' |
3-5 |
3-8 |
<=700 |
11 |
2-6 |
14.8 |
Ø60''x480'' |
3-5 |
2-6 |
<=800 |
15 |
3.5-9 |
17.8 |
Ø72''x480'' |
3-5 |
2-6 |
<=800 |
18 |
5-12 |
25 |
Ø88''x480'' |
3-5 |
1.5-6 |
<=800 |
18.5 |
6-15 |
33 |
Ø88''x720'' |
3-5 |
1.5-6 |
<=800 |
22 |
10-18 |
53.8 |
Ø88''x800'' |
3-5 |
1.5-6 |
<=800 |
30 |
12-20 |
56 |
Ø96''x800'' |
3-5 |
1.5-5 |
<=800 |
37 |
18-30 |
60 |
Ø120''x800'' |
3-5 |
1.5-5 |
<=800 |
55 |
25-35 |
78 |
Ø120''x1000'' |
3-5 |
1.5-5 |
<=800 |
75 |
32-40 |
104.9 |

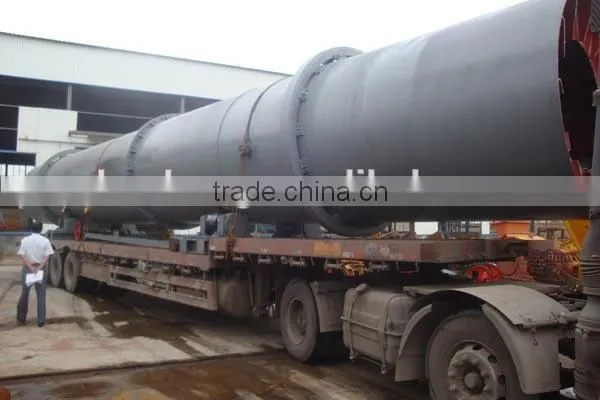

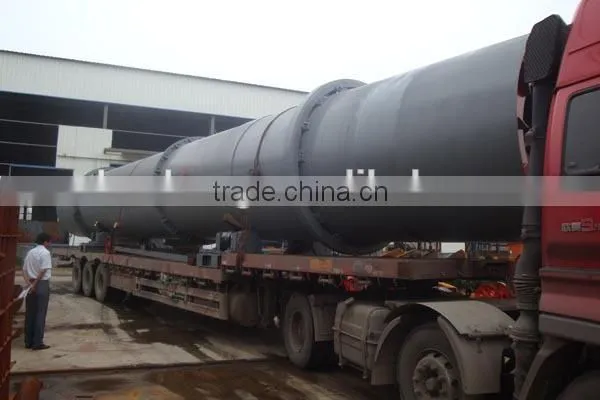

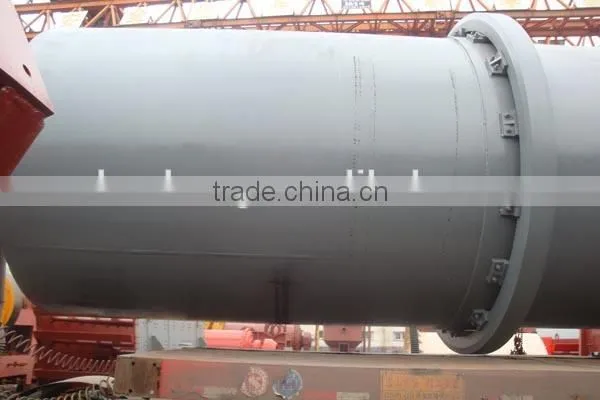

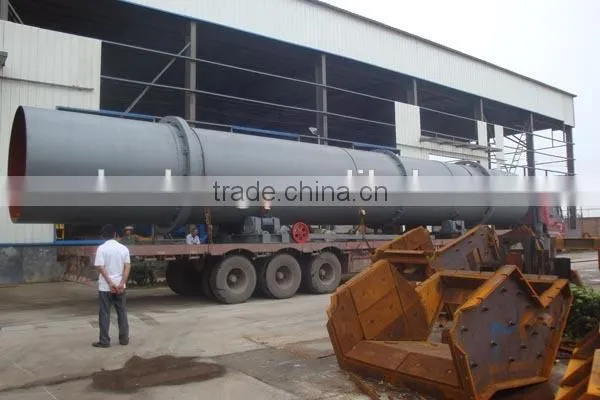

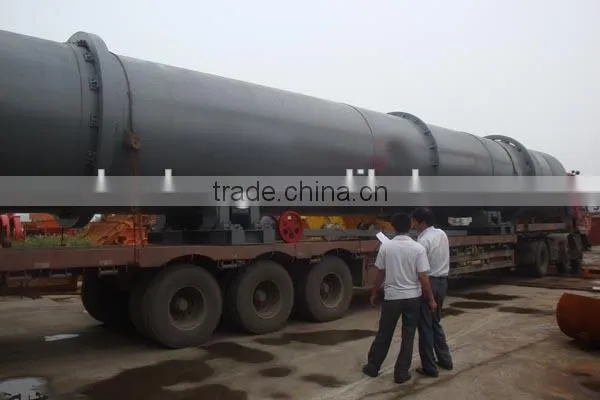

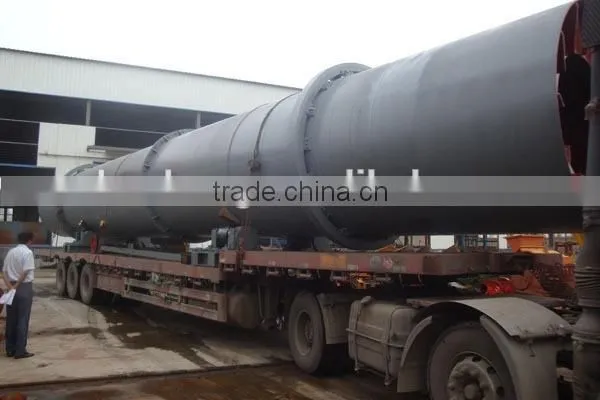

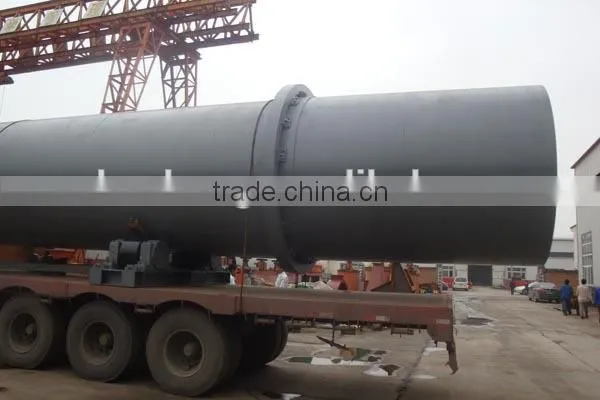

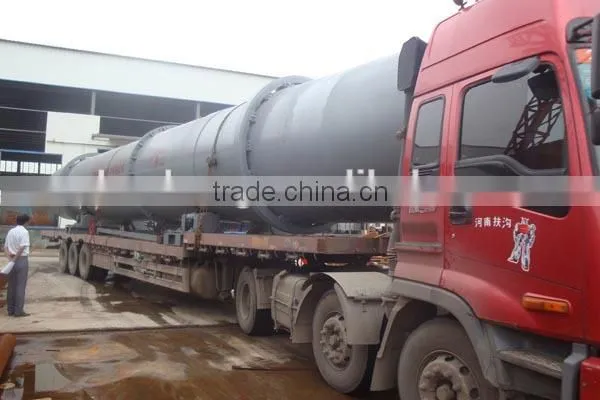

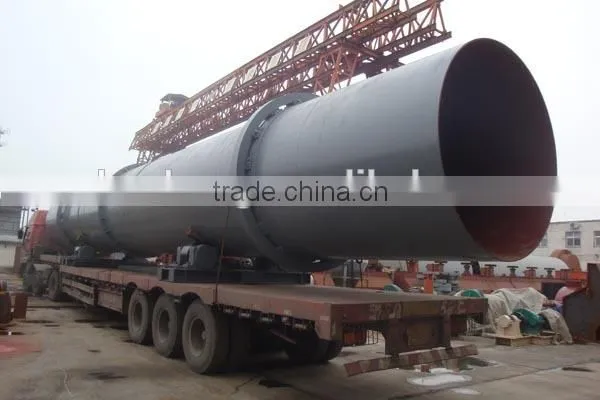

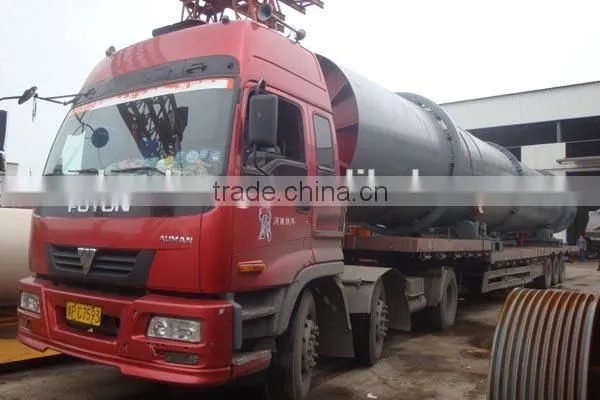

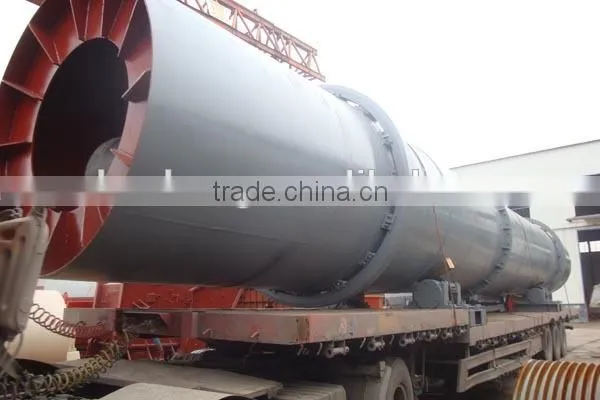

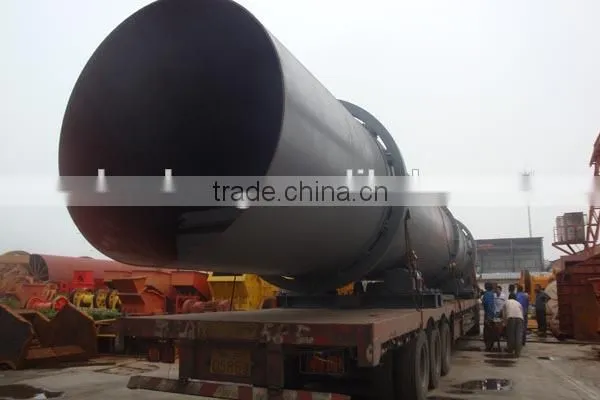

Different views of dryer:
Before sales: Guide customer to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the whole schem.
On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection:Organize to delivery according to the contract.
After sales: Company can send technical persons for guiding to install ,debugg and train the workers.We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Zhengzhou Huahong mechanical equipment Co., Ltd is specialized in heavy equipment like various crushers, magnetic separators, mining machines, bricks and blocks machines, cement production line, AAC block line, etc., which is located in the middle of China. Our competitive price, high quality products and excellent after-sales service had gain us good reputation in this field.
Certification:
If you are interested in our products, please contact me!
