C frame CNC automatic steel bending machine press brake machine WC67Y

CNC automatic hydraulic steel bending machine  press brake machine WC67Y   Features:

1) A fully welded steel construction with full strength and rigidity.

2) Synchronizing mechanism of the ram adopting torque-shaft and mechanical stop unit, stable and reliable.

3) Standard equipped with Estun E21 NC system, motorized ball screw type backgauge. 4) Front-controlled back gauge by power fast-adjustment and manual fine-adjustment.   specifications of  CNC automatic hydraulic steel bending machine  press brake machine WC67Y

CNC automatic hydraulic steel bending machine WC67Y-63x3200 Details of  press brake machine WC67Y

	Chinese brand motor with Sunny brand gear pump and Taifeng brand valve, stable working for high machine performance. Hydraulic oil tank is welded on the frame after special cleaning treatment. Synchronizing mechanism of the ram adopting torque-shaft and mechanical stop unit, stable and reliable
	Motorized backgauge with high quality ball screw and liner guide. Servo motor controlled backgauge is optional.

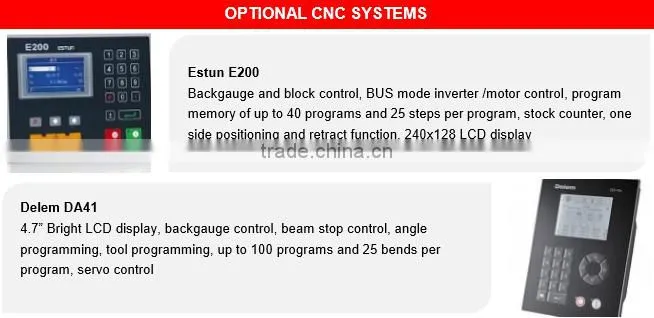

	Estun E21 NC system: Backgauge and block control, control for general AC motor or frequency inverter. Intelligent positioning, one side positioning. Program memory of up to 40 programs and 25 steps per program. Retract function. 160x160 LCD display with Chinese/English words
	Standard equip with upper punches and lower die. Customized punch or die is acceptable. Quick change die clamp is optional.

CNC automatic hydraulic steel bending machine WC67Y-63x3200

Photoes

 CNC automatic hydraulic steel bending machine  press brake machine WC67Y

CNC automatic hydraulic steel bending machine  press brake machine WC67

 CNC automatic hydraulic steel bending machine  press brake machine WC67Y

CNC autom

atic hydraulic steel bending machine WC67Y-63x3200

CNC

automatic hydraulic steel bending machine WC67Y-63x

3200
