250ton straight side double crank mechanical power press
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Mechanical |
Place of Origin: | Jiangsu, China | Brand Name: | World | Model Number: | JW36-250 |
Voltage: | 380V | Power(W): | 30kw | Weight: | 41ton |
Dimension(L*W*H): | 2920x3550x4260mm | Certification: | CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

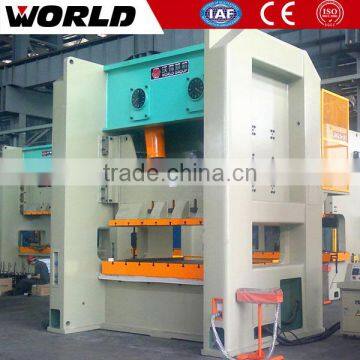

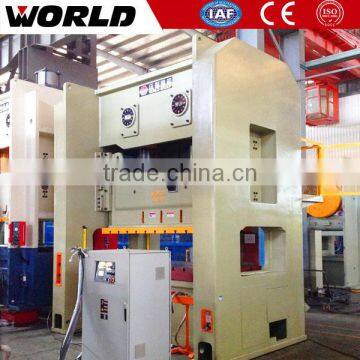

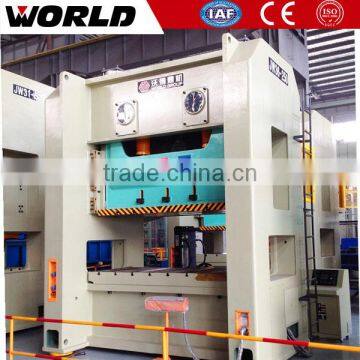

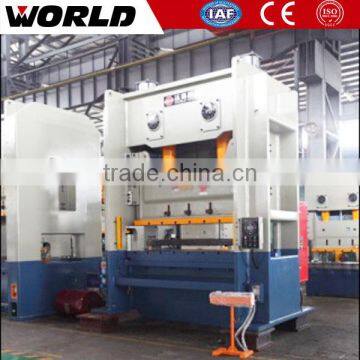

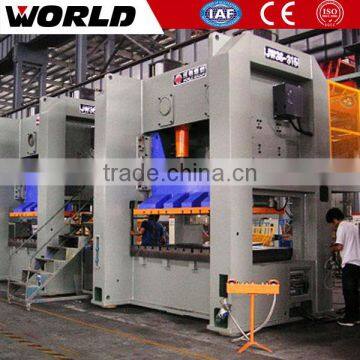

250ton straight side double crank mechanical power press
JW36 series Straight Side Double Crank Press is equipped with a wet clutch and a stronger H frame body. The symmetrical front-rear column structure design minimizes deflection and is most suitable for precision progressive die applications. No inherent angular deflection, which significantly extends die life and reduces cost of tooling maintenance. High rigidity structure ensures consistent dynamic precision. High torque, enclosed wet clutch brake unit requires minimal maintenance, eliminates noise and pollution caused by airborne particles, and significantly extends lining life. The press is designed to allow simple integration with automated auxiliary equipment.
Wet clutch
lower noise, longer service life, made by us, best seals, 3 years warranty
hydraulic overload protected pump
Japanese famous brand
auto grease lubrication pump
center lubrication system
cam controller box
both electric and mechanical cam controller
PLC
famous brand
control panel
with touch screen
1.Steel welded body with high rigidity
The main body is welded with high quality steel plate. Then it will be heat treated and ball blasting treated to release the stress and improve the rigidity. The best boring and milling machine ensures the high precision of the body.
2.High torque low noise wet clutch
World produce the wet clutch. We use the best seals, bearing and friction discs. The wet cultch features lower noise and longer service life.
3.Double crankshafts
Double crankshaft pitmen totally eliminate side forces by reverse rotation. The bigger table and slide area is better for big sheet metal punching or bending etc.
4.High precision slide with hydraulic overload pump
The eight faces guide rails provide higher accuracy and stability. The hydraulic overload pump can protect the press and the die if overload. You can reset the overload pump by the touch screen easily. A thin brake motor is equipped on the slide to adjust the slide easily.
5.Easy and safe control
The control panel includes double hand buttons and emergency stop button. And foot pedal control switch is optional.
The touch screen includes the counter, crankshaft angle displayer, control switches and alarm lights. You can set the press with the touch screen and any defaults of the press can be checked with it.
Hydraulic overload protected pump is used to protect the press and the die if the machine is overloaded. You can reset the overload with the switch on the touch screen easily.
The press has both electric cam controller and mechanical cam controller. The mechanical cam controller can still work if the electric one stops service. And you can select the cam by the touch screen too.
6.Separate electric box
The press is equipped with a separate electric box to avoid the shocking influence. Famous brand PLC and contactors ensure better stability and reliability.
7.High precision processing equipment
The famous Pama brand boring and milling machine ensures the high precision of the press frame and slide.
Factory
Technology support
We have an experienced R&D department and a sales technology support team. We can provide the technology support service as technology communication, training, customized designing, production line designing and so on. Just a call or an email, we will give you a good solution
Our team
Shanghai Yingxin World Machinery Co., Ltd was established in Shanghai which acted as an exporting center of world group
Workshop
The manufacturer base with strong competitive power;
Top-level bending equipment manufacture base;The biggest manufacture of pressing machine.
Delivery time and Package of 30years experience World brand sheet metal power press machine prices(JH21-25)
Delivery time: 30 days after order
Package: steel pallet or steel box
Q: What kind of power press you can supply?
A: We can supply mechanical power press,hydraulic power press,pneumatic power press and high speed power press.
Q: How long is your delivery time?
A: Generally it is 30-35 days after order, it is according to quantity.
Q: What are the brand of your parts?
A: Panasonic PLC and touch screen,Showa overload pump,Toyooki solenoid valve,Nok seals,others are made in China.
Q: What optional parts you can supply?
A: Light curtain,Feeder,Variable speed motor,Decoiler,Frequency inverter,3 in 1 NC feeder,
Piston type air cushion,Die quick change device
