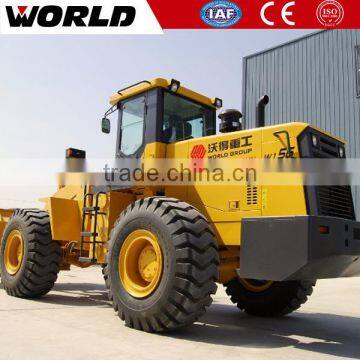

road construction machinery W156 5ton mini front loader

FOB Price

USD $40,000 - $45,000 / Piece

1 Piece(Min.Order)

Product Details

Condition:	New	Brand Name:	World	Model Number:	W156
Place of Origin:	Jiangsu, China	Type:	Front Loader	Moving Type:	Wheel Loader
Dimension(Long * Breadth * High):	8075x2980x3500mm	Rated Load:	5000kg	Certification:	CE GOST-R ISO9001
Warranty:	12 moths	After-sales Service Provided:	Engineers available to service machinery overseas

wheel loader for sale

road construction machinery W156 5ton mini front loader

Main Features of road construction machinery W156 5ton mini front loader

-Cummins engine, 160kw

-3m3 bucket

-5000kg rated load

-A/C cabin,Joystick control,Alarm

-CE marked

Specifications of road construction machinery W156 5ton mini front loader

ITEMS	DESCRIPTION
Model: W156	5 ton wheel loader, with air conditioner

Basic Data
Bucket Capacity	3.0 or 3.6m³
Rated Load	5000kg
Travelling Speed
Forward 1st	0-11.5km/h
Forward 2nd	0-37.5km/h
Reverse 1st:	0-17km/h
Max. Traction	165kN
Max. Break Out Force	150kN
Min. Turning Radius (outside tires)	6700mm
Max. Dumping Height	3100mm
Max. Reach	1200mm
Total Hydraulic Cycle Time	≤11.1s
Full Bucket Lifting Time	5.7s
Dimensions (LxWxH)	8075x2980x3500mm
Min. Clearance Over Ground	450mm
Operating Weight	16200kg

Diesel Engine
Model	CUMMINS 6CTA8.3 or C6121 or WEICHAI WD10G
Type	Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders
Rated Output	162/162/160kW
Rated Speed	2200rpm
Max. Torque	860/860/908N.m

Transmission
Model	ZL50
Manufacturer	Hangzhou Advance Gearbox Group Co., Ltd
Rated Input Power	154kW
Rated Input Speed	2200rpm
Hydraulic Torque Converter Model	Single stage, two phase four components
Torque Ratio When Zero Speed	4
Transmission Type	two forward and one reverse gears/power shift, planet type
Transmission Type	two forward and one reverse gears/power shift, planet type

rosd construction machinery W156 5ton mini front loader
