Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > 3m3 Bucket 5ton Construction Loader Machinery Prices
US$ 40,000 - 45,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
World
Model Number:
W156
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Road Construction Machinery 5ton Wheel Loader Prices(W156)US$ 40,000 - 45,000MOQ: 1 Piece -
3m3 Bucket Capacity 5ton Wheel Loader for SaleUS$ 40,000 - 45,000MOQ: 1 Piece
-
China Made Construction Machinery 5ton Wheel Loader for SaleUS$ 40,000 - 45,000MOQ: 1 Piece
-
New Design ZL5O Gearbox 5ton Construction Machines Wheel Loader PricesUS$ 40,000 - 45,000MOQ: 1 Piece
-
3 Ton Small Hydraulic Pump for Wheel Loader Price on SaleUS$ 23,000 - 26,000MOQ: 1 Piece
Condition
New
Brand Name
World
Model Number
W156
Place of Origin
Jiangsu, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
8075x2980x3500mm
Rated Load
5000kg
Certification
CE GOST-R ISO9001
Warranty
12 moths
After-sales Service Provided
Engineers available to service machinery overseas
3m3 bucket 5ton construction loader machinery prices
Main Features
-Cummins engine, 160kw
-3m3 bucket
-5000kg rated load
-A/C cabin,Joystick control,Alarm
-CE marked
Specifications of 3m3 bucket 5ton construction loader machinery prices
| ITEMS | DESCRIPTION |
| Model: W156 | 5 ton wheel loader, with air conditioner |
| Basic Data | |
| Bucket Capacity | 3.0 or 3.6m³ |
| Rated Load | 5000kg |
| Travelling Speed | |
| Forward 1st | 0-11.5km/h |
| Forward 2nd | 0-37.5km/h |
| Reverse 1st: | 0-17km/h |
| Max. Traction | 165kN |
| Max. Break Out Force | 150kN |
| Min. Turning Radius (outside tires) | 6700mm |
| Max. Dumping Height | 3100mm |
| Max. Reach | 1200mm |
| Total Hydraulic Cycle Time | ≤11.1s |
| Full Bucket Lifting Time | 5.7s |
| Dimensions (LxWxH) | 8075x2980x3500mm |
| Min. Clearance Over Ground | 450mm |
| Operating Weight | 16200kg |
| Diesel Engine | |
| Model | CUMMINS 6CTA8.3 or C6121 or WEICHAI WD10G |
| Type | Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders |
| Rated Output | 162/162/160kW |
| Rated Speed | 2200rpm |
| Max. Torque | 860/860/908N.m |
| Transmission | |
| Model | ZL50 |
| Manufacturer | Hangzhou Advance Gearbox Group Co., Ltd |
| Rated Input Power | 154kW |
| Rated Input Speed | 2200rpm |
| Hydraulic Torque Converter Model | Single stage, two phase four components |
| Torque Ratio When Zero Speed | 4 |
| Transmission Type | two forward and one reverse gears/power shift, planet type |

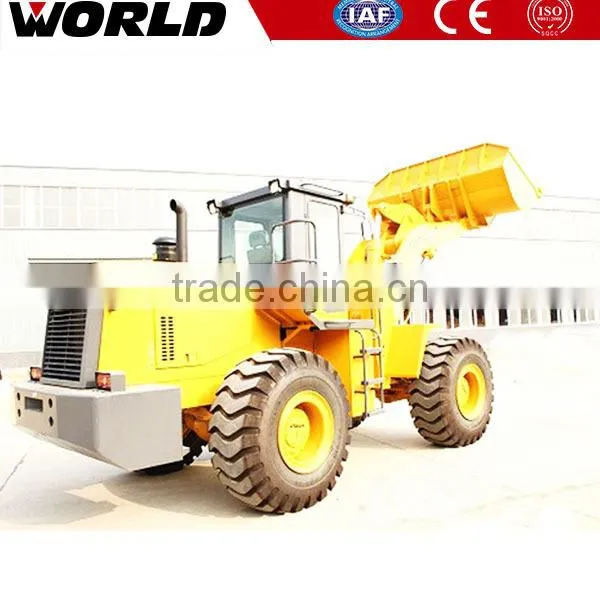

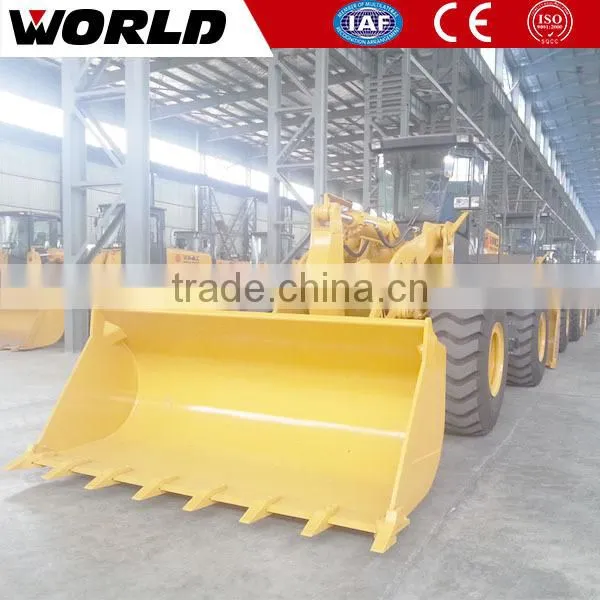

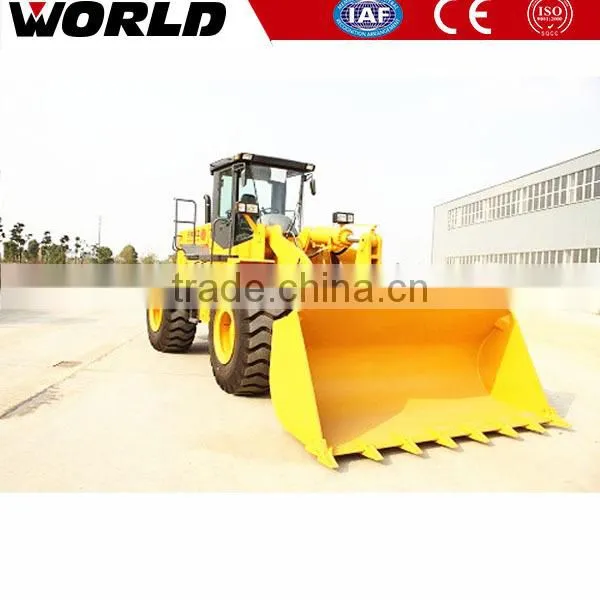

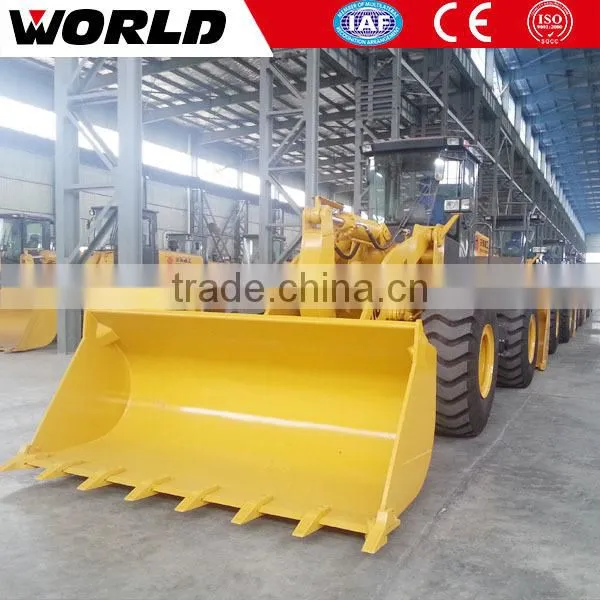

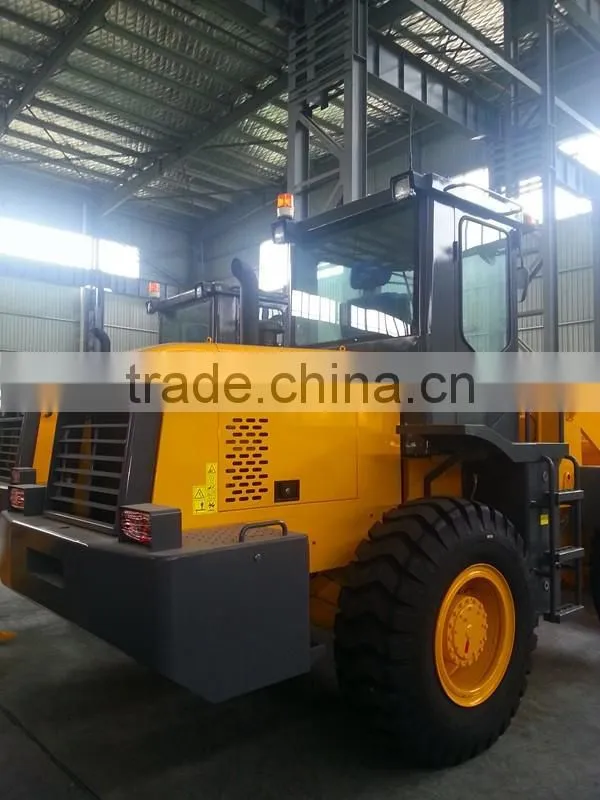

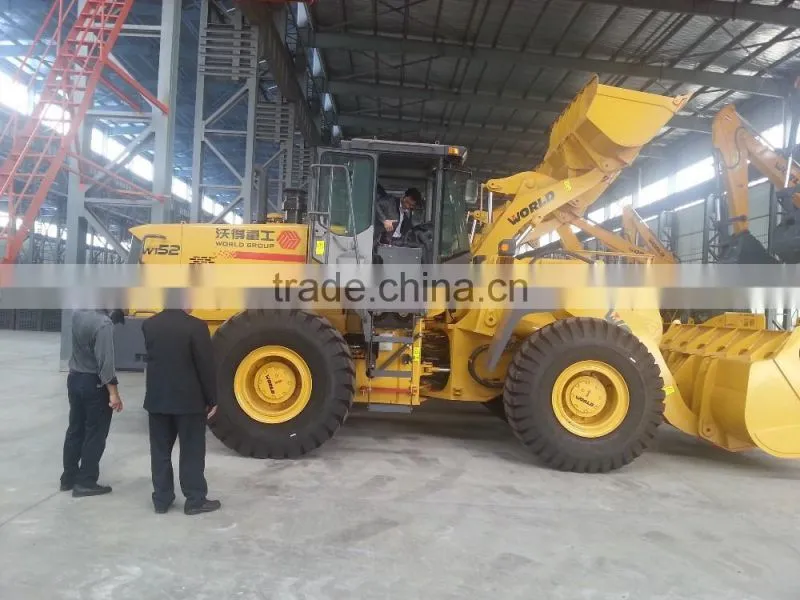

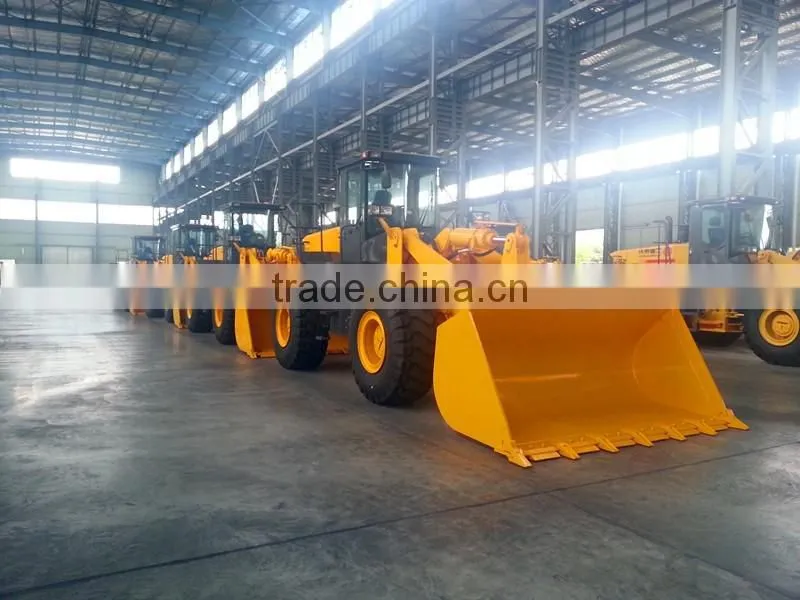

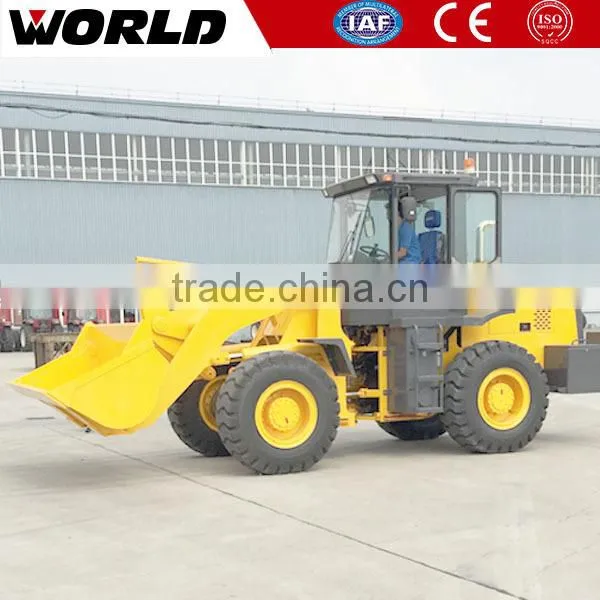

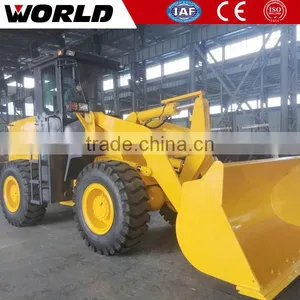

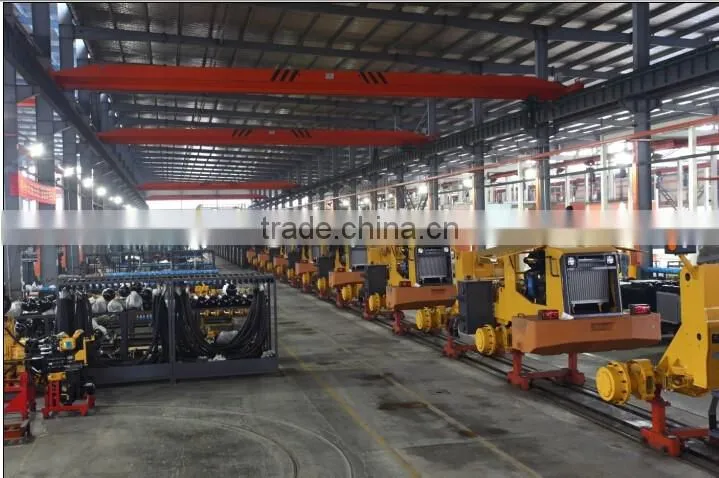

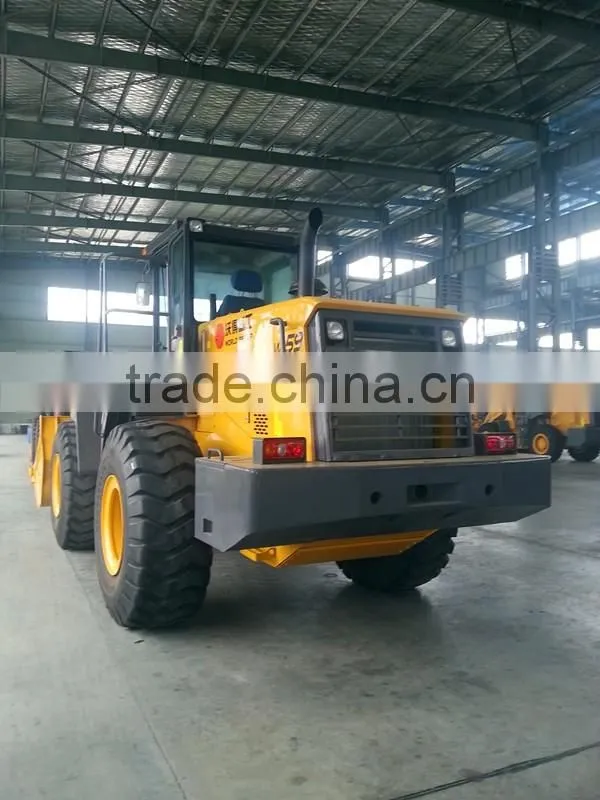

Photos of 3m3 bucket 5ton construction loader machinery prices

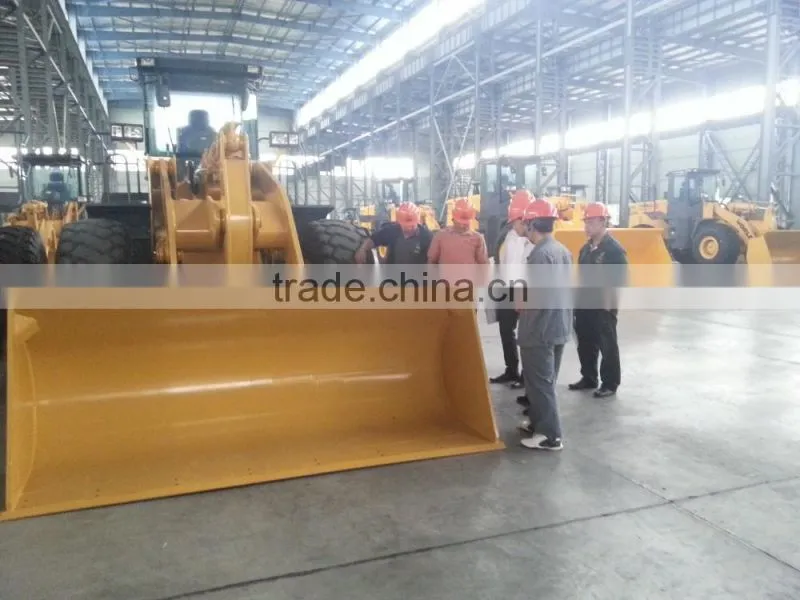

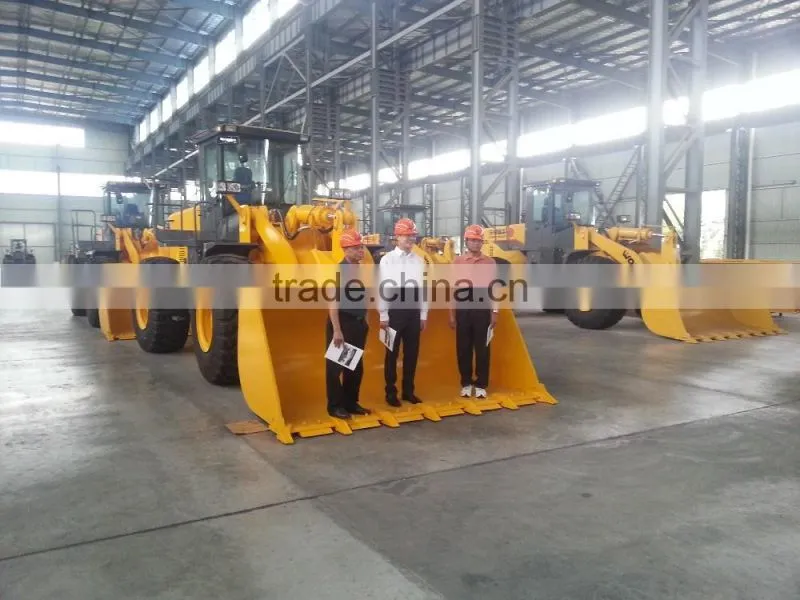

Clients Visit&Fair
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2007
Factory Size
Above 100,000 square meters
Total Employees
Above 1000 People
