160T CNC Mechanical Punching Machine/mechanical Power Press

World Heavy Industry (China) Co., Ltd.
160T CNC Mechanical Punching Machine/mechanical Power Press thumbnail-1
160T CNC Mechanical Punching Machine/mechanical Power Press thumbnail-2
160T CNC Mechanical Punching Machine/mechanical Power Press thumbnail-3
160T CNC Mechanical Punching Machine/mechanical Power Press thumbnail-4

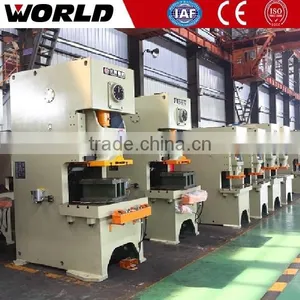

160T CNC Mechanical Punching Machine/mechanical Power Press thumbnail-5
160T CNC Mechanical Punching Machine/mechanical Power Press thumbnail-6
160T CNC Mechanical Punching Machine/mechanical Power Press photo-1
160T CNC Mechanical Punching Machine/mechanical Power Press photo-2
160T CNC Mechanical Punching Machine/mechanical Power Press photo-3
160T CNC Mechanical Punching Machine/mechanical Power Press photo-4

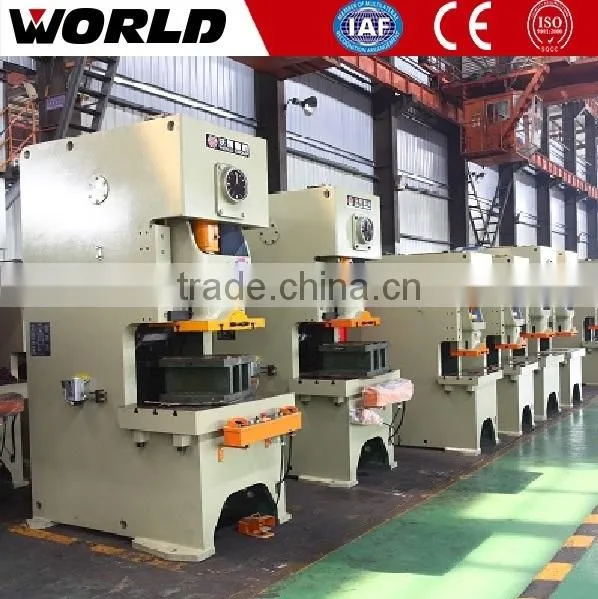

160T CNC Mechanical Punching Machine/mechanical Power Press photo-5

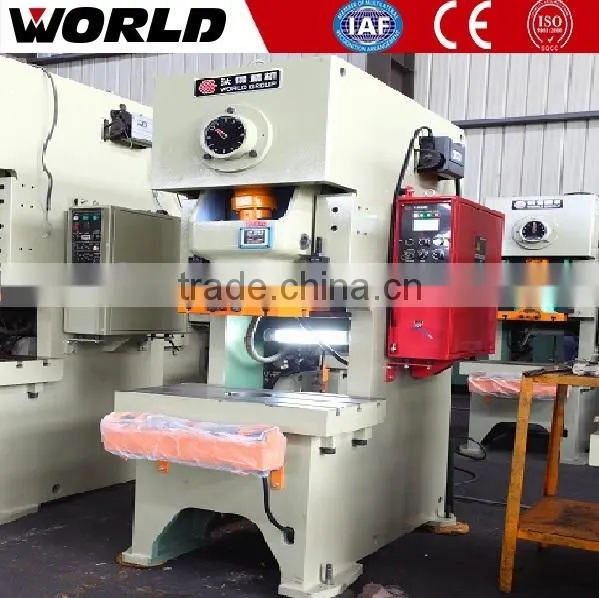

160T CNC Mechanical Punching Machine/mechanical Power Press photo-6
US$ 28,000 - 33,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Power Source Mechanical
Place of Origin Jiangsu, China
Brand Name WORLD
Model Number JH21-160
Voltage 380V
Power(W) 15kw
Weight 13600kg
Dimension(L*W*H) 3215x1420x2305mm
Certification CE, ISO
Warranty 12months
After-sales Service Provided Overseas service center available

160T CNC Mechanical Punching Machine/mechanical power press



Features:

1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;

2.Vertical located crankshaft, compact structure;

3.The crankshaft undergoes grinding treatment after high frequency quenching;

4.Lengthened rectangular guideway with a surface of bronze plate;

5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;

6.PLC control and imported safety dual valve;

7.Wet clutch and hydraulic overload protector.

160T CNC Mechanical Punching Machine/mechanical power press



Photos of 160T CNC Mechanical Punching Machine/mechanical power press

160T CNC Mechanical Punching Machine/mechanical power press160T CNC Mechanical Punching Machine/mechanical power press



Specifications of 160T CNC Mechanical Punching Machine/mechanical power press


ITEMUNITJH21-25JH21-45JH21-60JH21-80JH21-125JH21-160JH21-200JH21-250JH21-315JH21-400
Nomonal CapacityKN250450600800125016002000250031504000
Slide Strokemm80120140160180200250250250270
Slide StrokesTimes/min60-10050-8045-7040-6035-5030-4525-4520-3020-3020-30
Max. Die Heightmm250270300320350400450500500550
Die Height Adjustmentmm5060708090100110120120120
Throat  Depthmm210225270310350400430450450490
Distance Between Uprightsmm4505155606106707369109809801050
Slide Bottom SizeForward - Rearmm250340400460520580650700700750
Left - Rightmm3604104805406207008809509501020
Shank Hole SizeDiametermm40505050707070707070
Depthmm6560706590100100130130130
Bolster SizeForward - Rearmm400440520600680760840880880950
Left - Rightmm720825930950110011701390150015401700
Thicknessmm80110130140155165180190190210
Bed Opening Hole Diametermm150150150150160180200200200200
Overall DimensionsForward -Rearmm1496158515401765204023052600266027202850
Left - Rightmm945107512001200132014201540164016801750
Heightmm2120239125702725303532153800386538654150
Motor PowerKW35.55.57.5111518.5223037
Weight(approximate)kg245035505150645095501360019200232002660031600



Details of 160T CNC Mechanical Punching Machine/mechanical power press

160T CNC Mechanical Punching Machine/mechanical power press
