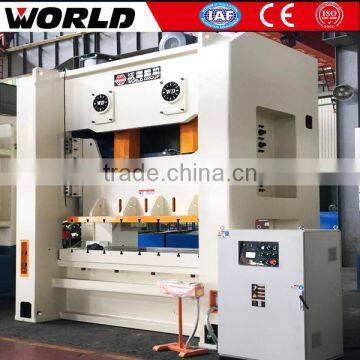

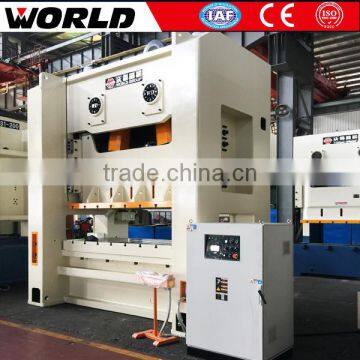

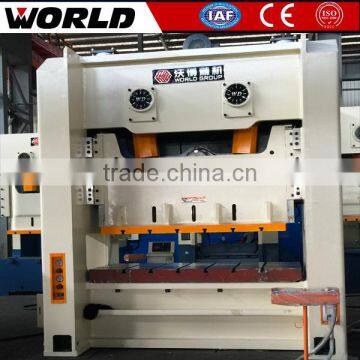

China Price of Pneumatic Power Press Machine for tinplate with CE
China Price of Pneumatic Power Press Machine for tinplate with CE
Features
1. Welded steel plate framework, H frame body, high intensity and rigidity;
2. Double crankshaft pitmen totally eliminating side forces by reverse rotation;
3. Combined wet multi discs friction clutch and brake;
4. Hydraulic overload protecting device;
5. Eight-side lengthen guide with high precision;
6. Electric die height adjustment with digital display;
7. Electric cam device with intelligent top dead center stop function and several safety unction;
8. Balancing cylinder adopts manual lubrication system.
China Price of Pneumatic Power Press Machine for tinplate with CE
China Price of Pneumatic Power Press Machine for tinplate with CE
Standard Equipments: Optional Equipments:
1) Wet clutch 1) Dry clutch
2) PLC 2) Light curtain
3) Hydraulic overload protecting pump 3) Inverter
4) Touch screen 4) Variable speed motor
5) Cam controller 5) Foot pedal
6) Die height adjusted motor 6) Cushion
7) Auto lubrication system 7) Auto feeding shaft
8) Manual lubrication system 8) NC feeder
9) Double hand control panel 9) Die quick change device
10) Electronic crankshaft angle indicator
11) Predetermined counter
12) Balance cylinders for slide and upper die
13) Work light
14) Absorbing pads
Technical data of China Price of Pneumatic Power Press Machine for tinplate with CE
| ITEM | UNIT | JW36-110 | |
| Nominal Capacity | KN | 1100 | |
| Slide Stroke | mm | 180 | |
| Slide Strokes | Fixed | Times/min | 65 |
| Variable(optional) | Times/min | 35-65 | |
| Max.Die Height | mm | 400 | |
| Die Height Adjustment | mm | 90 | |
| Side Hole Size | Forward-Rear | mm | 650 |
| Height | mm | 350 | |
| Distance Between Uprights | mm | 1890 | |
| Bolster Size | Forward-Rear | mm | 700 |
| Left-Right | mm | 1800 | |
| Thickness | mm | 155 | |
| Slide Bottom Size | Forward-Rear | mm | 600 |
| Left-Right | mm | 1500 | |
| Bolster Surface Height | mm | 900 | |
| Overall Dimensions | Forward-Rear | mm | 2150 |
| Left-Right | mm | 2820 | |
| Height | mm | 3100 | |
| Motor Power | KW | 11 | |
| Weight(approximate) | kg | 19000 | |

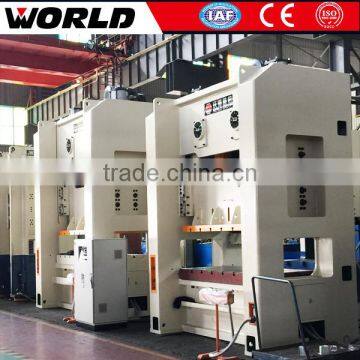

Details China Price of Pneumatic Power Press Machine for tinplate with CE
China Price of Pneumatic Power Press Machine for tinplate with CE
China Price of Pneumatic Power Press Machine for tinplate with CE
China Price of Pneumatic Power Press Machine for tinplate with CE
Our certificates
China Price of Pneumatic Power Press Machine for tinplate with CE
Delivery time:45-60 days after order
Package:steel box
Warranty period:one year
Technical service:available
Operation and maintenance manual(English):provided
110ton new punch press machine for tinplate with CE
