5ton Chinese Small Hydraulic Front Wheel Loader for Sale

Name: 5ton Chinese Small Hydraulic Front Wheel Loader for Sale
Brand: World
SKU: 140752896
Availability: InStock

US$ 40,000 - 50,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

World

Model Number:

W156

World Heavy Industry (China) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name World

Model Number W156

5ton chinese small hydraulic front wheel loader for sale

Main Features:

-Cummins/Shangchai C6121 engine

-Bucket 3m3

-Rated load 5000kg

-Mechanical transmission 2forward and 2reverse

-A/C,Airseat,Joystick

-Operating weight 16200kgs

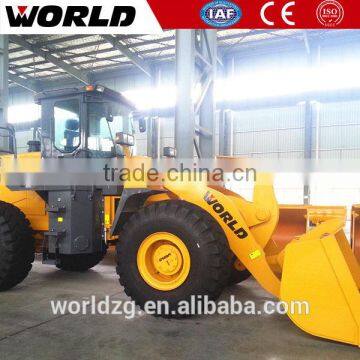

Photos of 5ton chinese small hydraulic front wheel loader for sale

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty

period is one year. During the warranty period, our company provides free maintenance and replacement parts,

if these parts or damages are out of quality problems. In the meantime, the machine should be under normal

operation by the buyers. (Except for improper operation or man-made damage by the buyers.) We can send the

parts by courier if urgently needed while the buyer should pay the freight.

Packing and loading:

-one unit per 40HQ container

-disassemble the bucket, axle, tyres and cabin

-easy to assemble at buyer's side as all are bolted on

Specifications of 5ton front end wheel loader price

Items	Model: W156
Bucket Capacity (m³)	3.0 or 3.6 or 4.0
Rated Load (kg)	5000
Max. Breakout Force (kN)	150
Max. Traction (kN)	165
Forward Speed 1^st (km/h)	0-11.5
Forward Speed 2^nd (km/h)	0-37.5
Reverse Speed (km/h)	0-17
Max. Dumping Height (mm)	2970
Max. Dumping Reach (mm)	1200
Min. Turning Radius (mm)	6700
Min. Clearance Over Ground (mm)	380
Wheel Base (mm)	3427
Tread Width (mm)	2300
Total Hydraulic Cycle Time (s)	11.1
Full Bucket Lifting Time (s)	5.7
Overall Dimensions (mm)	L:8075xW:2960xH:3500
Operating Weight (kg)	16200
Diesel Engine
Brand	Weichai Steyr or Cat6121 or Cummins
Type	Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders
Rated Output (kw)	162/162/160
Rated Speed (rpm)	2200
Max. Torque (N.m)	855/860/908
Transmission
Type	Planet type
Rated Input Speed (rpm)	2200
Transaxle & Tire
Rear Axle Oscillation	Center oscillation
Oscillating Angle Of Rear Axle (°)	13
Pressure Of Tire (MPa)	0.28-0.32
Working Hydraulic System
Working Pump Type	Gear pump
Working Pressure (MPa)	17
Lifting Cylinder Bore x Stroke (mm)	165x757
Tilting Cylinder Bore x Stroke (mm)	200x540
Steering System
Steering Pump Type	CBGJ2080
Working Pressure (MPa)	12
Steering Cylinder Bore x Stroke (mm)	100x342
Max. Steering Angle (°)	35
