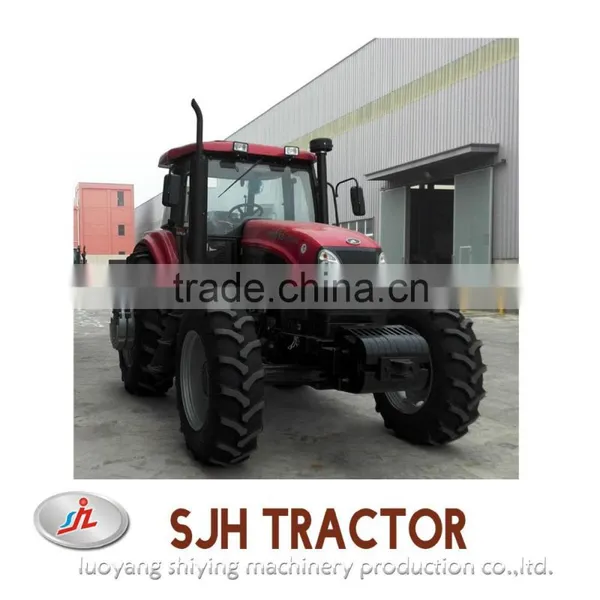

new design agricultural tractor SJH 130HP 4WD SJH1304 Tractor

FOB Price

USD $25,000 - $43,000 / Unit

1 Unit(Min.Order)

Supply Ability 3000 Unit / Units per Month
Port Qingdao/Shanghai/tianjin
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Wheel Tractor	By wheel:	4WD
Usage:	Other, Farm Tractor, farm tractor	Drive Type:	Gear Drive	Power(W):	95.5KW
Certificate:	Other, Other, CE	Brand Name:	SJH	Model Number:	SJH1304
Place of Origin:	Henan, China	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

one 40HQ load 3 units, In nude .well fixed by iron

Product Description

>Main features of agricultural tractor
1. Appearance with a new streamlined design, high-grade paint, bright colors, beautiful

and stylish.
2. Match dragged YTO engine power, low fuel consumption, better power ability and economy.
3. Full hydraulic steering system, light and flexible of manipulation, small turning radius and good maneuverability.
4. Full stand-alone power output shaft, which can meet the demand of rotary tillage,

straw, harvesting, planting, fertilizing and other operations.
5.Suspension system to enhance the force, can be suspended with large farm machinery and other agricultural operations.
6.Traction, optional air brake device for towing vehicles for transport operations.
7.1-3 slices optional hydraulic output multi-way valve used tomanipulate the folded target,

flip plow a variety of farm implements and shovel carriers, motor graders and dump trailers.

Model			SJH1254	SJH1304	SJH1354
Type			4×4	4×4	4×4
Exterior size(mm)		Length	5250	5250	5250
		Width	2400	2400	2400
		Height(up to muffle)	3030	3030	3030
Exterior Power(hp)			125	130	135
Engine Speed(r/min)			2400	2400	2400
Wheel Tread(mm)		Front	1900	1900	1900
Wheel Tread(mm)		Rear	(1700~2300for option)	(1700~2300for option)	(1700~2300for option)
Min.Ground Clearance(mm)			400	400	400
Structure Weight(kg)	With Cabin		6850	6850	6850
Structure Weight(kg)	Without Cabin		5800	5800	5800
Turning Radius(m)			4.6-5.7	4.6-5.7	4.6-5.7
Rated Drawbar Pull(kN)			28	28	28
Ballast(kg)		Front	Max.440	Max.440	Max.440
Ballast(kg)		Rear	Max.480	Max.480	Max.480
E N G I N E		Brand	YTO	YTO	YTO
		Type	Water cooled, vertical, 4 strokes	Water cooled, vertical, 4 strokes	Water cooled, vertical, 4 strokes
		Cylinder	6	6	6
		Bore×stroke(mm)	See the engine specification	See the engine specification	See the engine specification
		Rated power(kW)	92	95.6	99.3
		Rated speed(rpm)	See the engine specification	See the engine specification	See the engine specification
Tire size		F.wheel	14.9-28	14.9-28	14.9-28
Tire size		R.wheel	18.4-38	18.4-38	18.4-38
gears			16F+16R	16F+16R	16F+16R
Speed(km/h)			2.79~33.91	2.79~33.91	2.79~33.91
