Help Center2016 CE 6ton ZL60 Wheel Front End Loader
Related Products
-
2016 CE D25 Multi-functional Mini LoaderUS$ 13,279 - 13,935MOQ: 1 Unit -
2016 2.0Ton ZL20 CE Wheel LoaderUS$ 13,771 - 14,400MOQ: 1 Unit
-
2016 1.2ton ZL12 CE Mini Front Wheel LoaderUS$ 8,688 - 9,017MOQ: 1 Unit
-
2016 Hot 1.2ton ZL12 Hot Sale CE Mini Wheel LoaderUS$ 8,688 - 9,017MOQ: 1 Unit
-
2016 Hot CE D25 Multi-functional Mini Wheel Shovel LoaderUS$ 13,279 - 13,935MOQ: 1 Unit
1.A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.

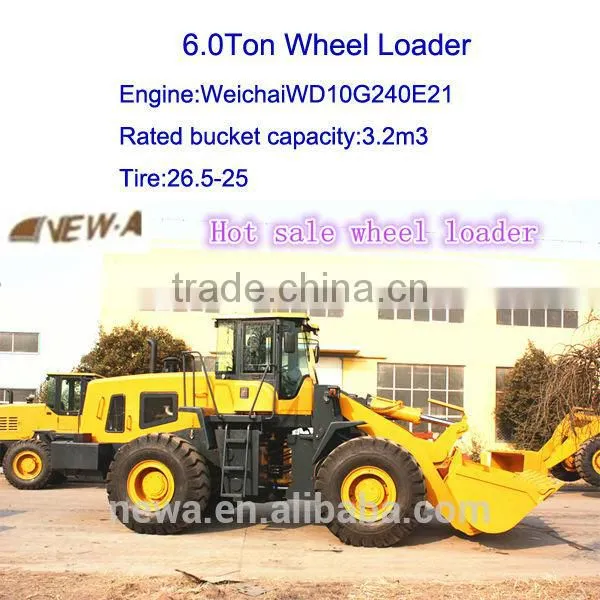

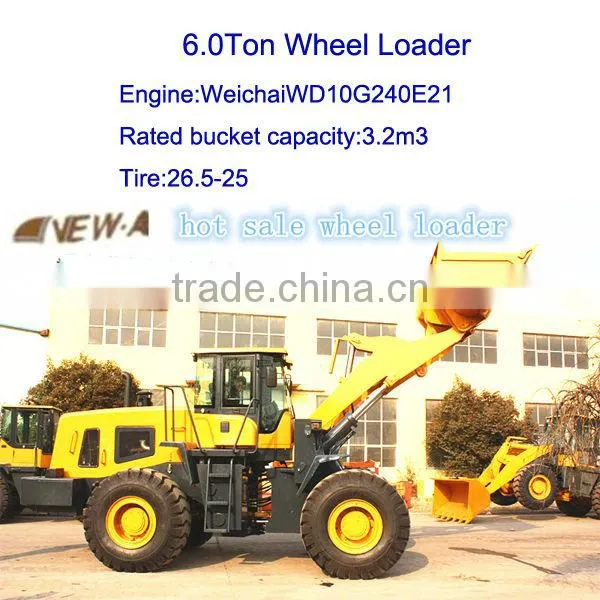

CE 6ton ZL60 wheel front end loader
loader 6.0ton ZL60
1.Engine: WeichaiWD10G240E21
2.Power:175KW
3.Bucket Capacity:3.2m3
4.Rated Load:6000kg
Standard packing
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.ZL60.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Performance | |
Overall dimension(mm) |
8,360 x 2,950 x 3,600 |
Rated loading weight(kg) |
6,000kg |
Overall weight |
19,000kg |
Rated bucket capacity(m3) |
3.2 |
Max. breakout force(kn) |
200 |
Max. dump height(mm) |
3160 |
Max. dump reach(mm) |
1200 |
Engine | |
Engine Model |
WeichaiWD10G240E21 |
Engine type |
Turbocharger, inline, water cooled, direct injection |
Rated Power(kw)/(ps) |
175/240 |
Rated Speed(r/min) |
2200 |
Max. torque(N.m) |
920 |
Max. torque speed(r/min) |
1200-1400 |
Lifting, unloading and descending total time(s) |
11.48 |
Displacement |
9.726 |
Transmission system | |
Model of torque converter |
YJSW315-6H |
Pattern |
Single stage two phase four components |
Transmission type |
Power shift plant structure |
Number of gear |
2 forward, 1 reverse |
Max. travel speed |
38km/h |
Drive axle | |
Main reducer pattern |
Spiral bevel gear first reduction |
Pattern of wheel side moderation |
Single stage planetary |
Tire | |
Tires |
26.5-25 |
Steering system | |
Pattern |
Full hydraulic steering system |
Max. turning radius (outside of bucket)(mm) |
7260 |
Max. turning angle |
35°±1 |
Hydraulic system | |
Implement pump |
P7600-F125 |
Displacement(L/min) |
275 |
System working pressure(Mpa) |
18 |
Distribution device model |
DF32 |
Pilot valve model |
DJS |
Brake system | |
Service brake |
Air assisted oil disc on four wheel |
Parking brake |
Soft control, disc type |
Remarks:
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery date: 25-30 days after we receive the deposit
3) Quotation valid date: within 30 days
4)The MOQ:One Set
