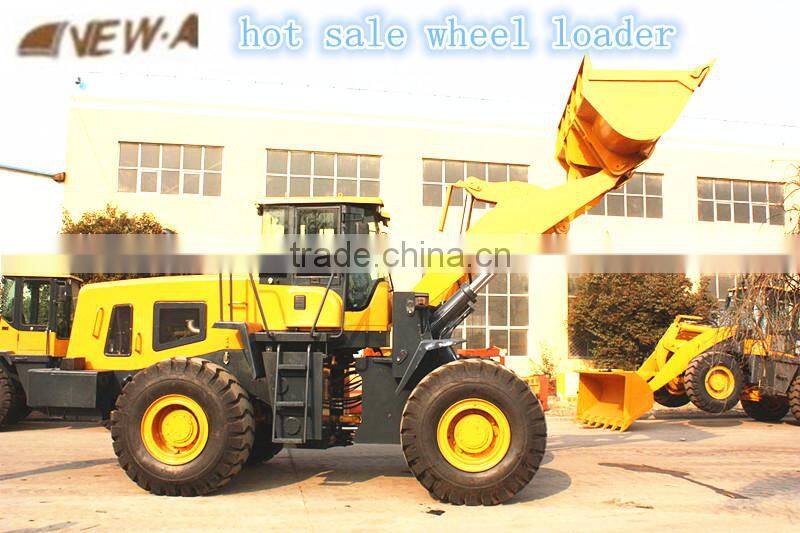

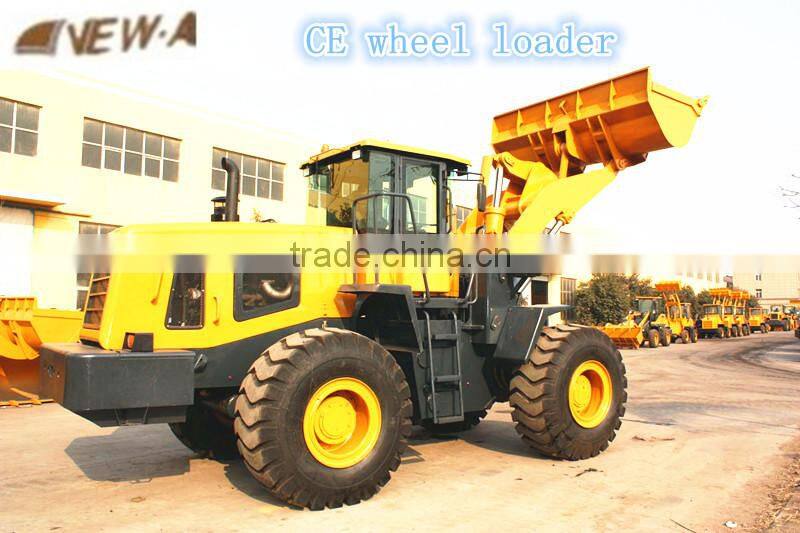

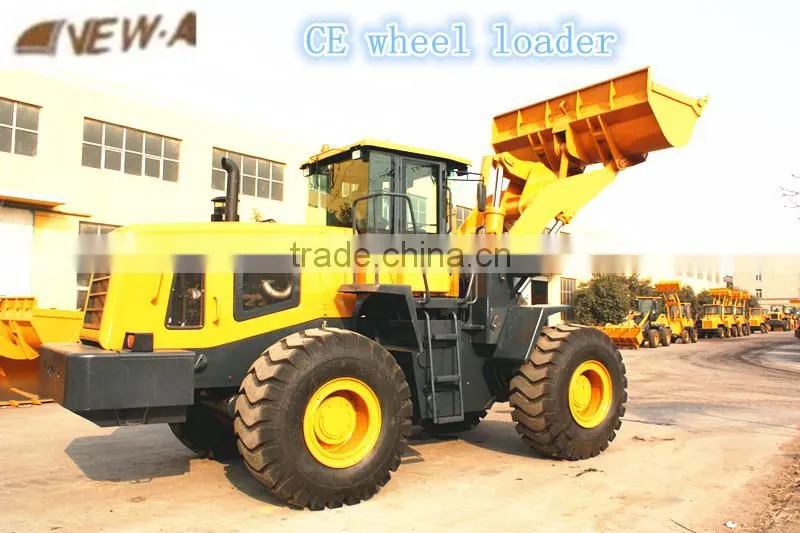

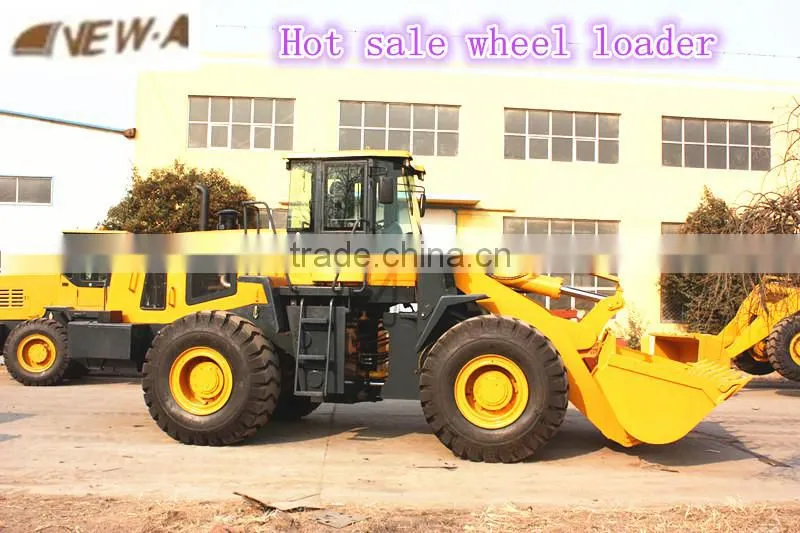

2016 new model 6ton CE ZL60 wheel loader

Performance

Overall dimension(mm)

8,360 x 2,950 x 3,600

Rated loading weight(kg)

6,000kg

Overall  weight

19,000kg

Rated bucket capacity(m3)

3.2

Max. breakout force(kn)

200

Max. dump height(mm)

3160

Max. dump reach(mm)

1200

Engine

Engine Model

WeichaiWD10G240E21

Engine type

Turbocharger, inline, water cooled, direct injection

Rated Power(kw)/(ps)

175/240

Rated Speed(r/min)

2200

Max. torque(N.m)

920

Max. torque speed(r/min)

1200-1400

Lifting, unloading and descending total time(s)

11.48

Displacement

9.726

Transmission system

Model of torque converter

YJSW315-6H

Pattern

Single stage two phase four components

Transmission type

Power shift plant structure

Number of gear

2 forward, 1 reverse

Max. travel speed

38km/h

Drive axle

Main reducer pattern

Spiral bevel gear first reduction

Pattern of wheel side moderation

Single stage planetary

Tire

Tires

26.5-25

Steering system

Pattern

Full hydraulic steering system

Max. turning radius (outside of bucket)(mm)

7260

Max. turning angle

35°±1

Hydraulic system

Implement pump

P7600-F125

Displacement(L/min)

275

System working pressure(Mpa)

18

Distribution device model

DF32

Pilot valve model

DJS

Brake system

Service brake

Air assisted oil disc on four wheel

Parking brake

Soft control, disc type
