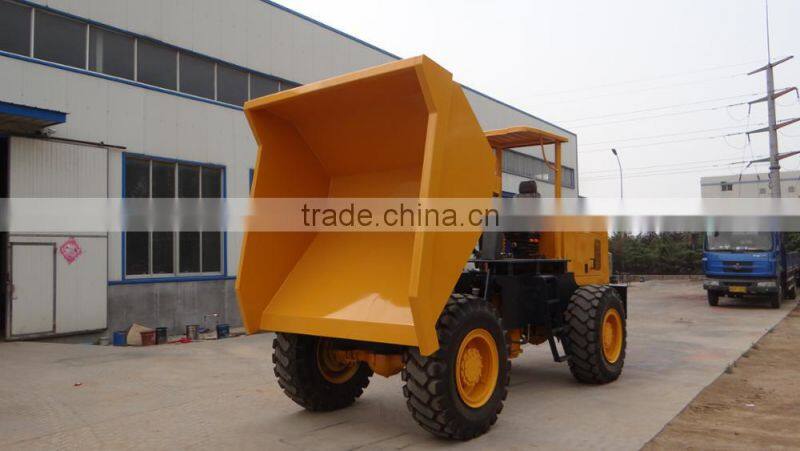

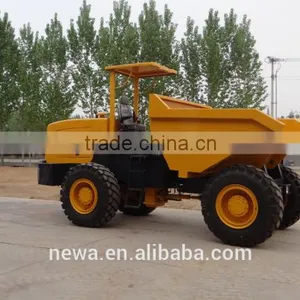

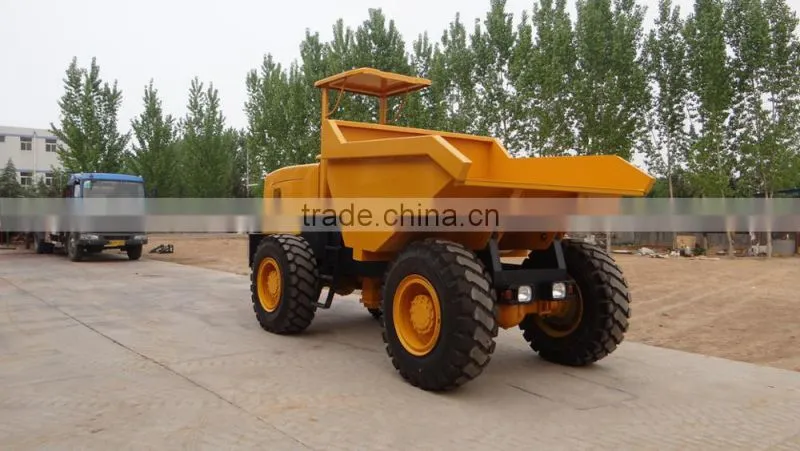

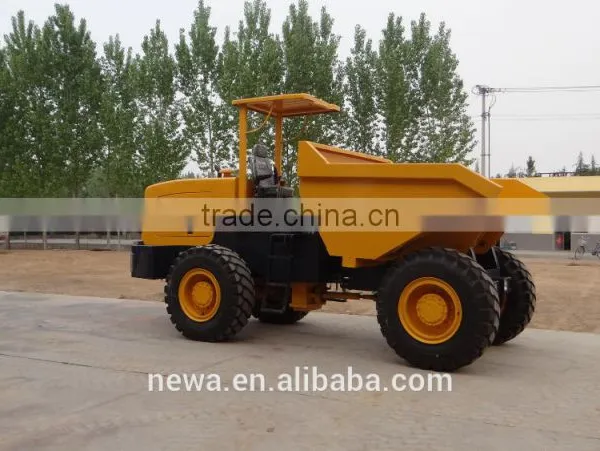

CE 10ton FCY100 hydraulic electric dump truck
hydraulic truck with front dumper FCY100
Loading weight:10000kgs
Bucket capacity:4.0m3
Engine:Deutz engine
Loading weight:10000kgs
Bucket capacity:4.0m3
Engine:Deutz engine
Dumpers brief introduction:
As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on.
1. more than 10 years production experience
2. own a super technical team, can finish some adjustment to adapt the using environment and the market
3. production capacity: 300 units/month
. | Payload |
| 10000kg |
2. | Operating weight |
| 4760 kg |
3. | Hopper capacity |
| 4.0 m3 |
4. | Maximum speed |
| 25 km/h |
5. | Handbrake available on grade |
| 18% |
6. | Max grade ability |
| 251% |
7. | Distance of road after brake |
| ≤2.5m with load and speed 10km/h |
8. | Minimum turn radius |
| 4 m |
9. | Ground clearance |
| 248 mm |
10. | Noise level |
| ≤102 db(A) |
11. | Loading discharge angle |
| 48.40 |
12. | Time of discharge |
| 6s |
13. | Hydraulic pressure |
| 16 Mpa |
14. | Wheel base |
| 2800 mm |
15. | Wheel tread |
| 1880 mm |
16. | Engine power | DEUTZ 97KW | |
17. | Dimensions (LxWxH) | 4990x2440x3750 mm | |
Advantages to work with us:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.
3)Unparalleled after sales service

Remarks:
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery date: 25-30 days after we receive the deposit
3) Quotation valid date: within 30 days
4)The MOQ:One Set
