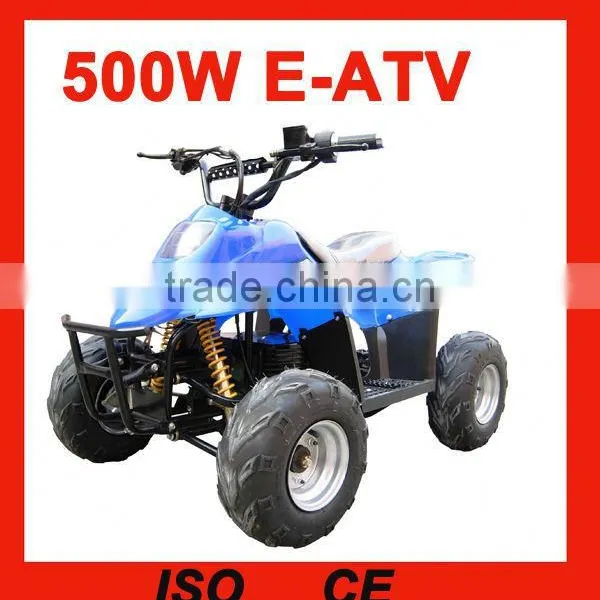

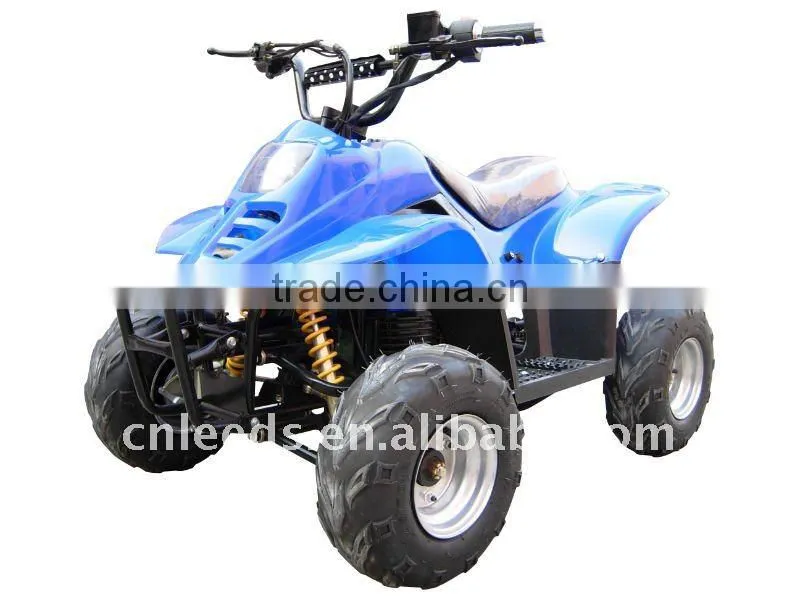

500W ELECTRIC ATV FOR KIDS(MC-207)

500W ELECTRIC ATV FOR KIDS

(MC-207)

FEATURES AND SPECIFICATION:

Motor:

1) Output:500W
2) Voltage:36VDC    Rated current:17A
3) Rated speed:450RPM
Chassis:

l) Brakes (Front/Rear):drum/Hydraulic disc
2) Absorber (front/rear):Spring - absorber
3) Tires(Front/Rear):14.5x7-6 /14.5x7-6
4) Drive train:Chain
Dimensions:

l) Seat height:630mm
2) Wheel base:850 mm
3) Ground clearance:110mm
4) Products size:1220x800x490mm
5) Max speed:60km/h
6) Max load capacity: 120Kgs
Packing:
l) G.W:94kgs  N.W:82kgs
2) Package measure: 1150x690x590mm
Conveyance:
 Qty/20Fcl: 48pcs Qty/40Fcl:102pcs   Qty/40HQ: 136pcs
