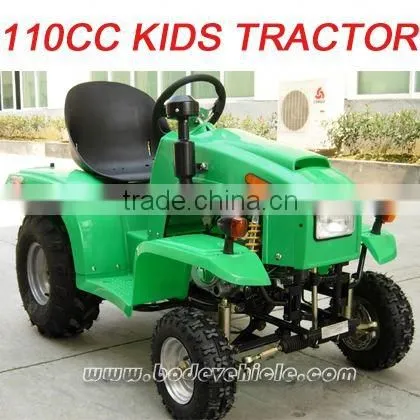

110CC KIDS TRACTOR

1) L*W*H(mm)...........1320*70*80
2) Model of engine........152FMH
3) Wheel base ..............860mm
4) Bore*troke ............52.4*49.5mm
5) Tire tread..................front 790mm  rear823mm
6) Working volume of the cylinder......107ML
7) Min. ground clearance......................80mm
8) Compression ratio............................9.1:1
9) Diameter of turning circle.................3000MM
10) Min. stable idle speed r/min.............1500(+ -)150
11) Rated power............................4.7kW /8500r/min
12) Integral mass........................110kg
13) Max. torque.........................6.5N.m/6000(r/min)
14) Rated loading capacity.........200kg
15) Type of carburetor...............plunger type PZ24
16) Highest speed....................4 km/h
17) Type of clutch....................manual waterish multichip
18) Capacity of fuel tank...........6.5L
19) Type of plug.......................A7RTC
20) Type of front /rear shock absorber....Hydraulic shock absorber
21) Type of vent silencer........Cylinder type silencer
22) Specification of front /rear tire.....19*7.00-8/13*7.00-6
23) Transmission mode............chain
24) Ignition mode...CDI
25) Language Option Switch languge to help reading:  French German Italian Russian Spanish Portuguese  French
German Italian Russian Spanish Portuguese
26) Min. stable idle speed r/min......1500(+ -)150
