Home > Products > Gasoline engine > Chongqing Made Good Quality Small Engine

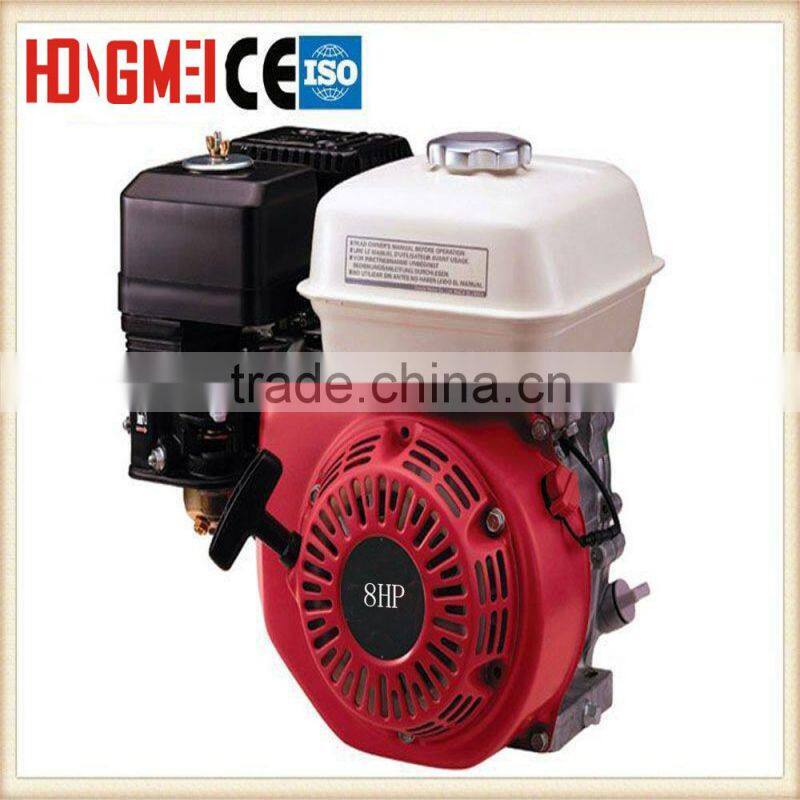

Chongqing Made Good Quality Small Engine
- 3000 Piece / Pieces per Month
- Chongqing/Shanghai/Shenzhen
- T/T
Product Details
| Condition: | New | Usage: | Other, used as power source for other machines | Fuel: | Gasoline |
| Stroke: | 4 Stroke | Cylinder: | Single Cylinder | Cold Style: | Other, Air-cooled |
| Start: | Kick Start | Place of Origin: | Chongqing, China | Brand Name: | HONGMEI |
| Model Number: | HM173 | Dimension(L*W*H): | 490*450*535 | Weight: | 20KG |
| Certification: | CE ISO9001:2008 | Warranty: | 1 YEAR | After-sales Service Provided: | No overseas service provided |
Product Description
Chongqing Made Good Quality Small Engine
| ENGINE TYPE | ||||||||
| model | HM168FA | HM168FB | HM170F | HM173 | HM177 | HM182 | HM188 | HM190F |
| power | 5.5HP | 6.5HP | 7HP | 8HP | 9HP | 11HP | 13HP | 16HP |
| max output(hp/rpm) | 5.5/3600 | 6.5/3600 | 7/3600 | 8/3600 | 9/3600 | 11/3600 | 13/3600 | 16/3600 |
| max torque(N.W/rpm) | 4.5/2500 | 4.5/2500 | 4.5/2500 | 16.6/2500 | 18.5/2500 | 23.5/2500 | 26.5/2500 | 28.5/2500 |
| bore*stroke(mm) | 68*45 | 68*54 | 70*54 | 73*58 | 77*58 | 82*64 | 88*64 | 90*66 |
| displacement(CC) | 169ml | 196ml | 210ml | 242ml | 270ml | 337ml | 389ml | 420ml |
| compression ration | 8.5:1 | 8.5:1 | 8.5:1 | 8.2:1 | 8.2:1 | 8.2:1 | 8.0:1 | 7.8:1 |
| start system | recoil | recoil | recoil | recoil | recoil | recoil | recoil | recoil |
| fuel tank capacity | 3.6L | 3.6L | 3.6L | 6L | 6L | 6.5L | 6.5L | 6.5L |
| oil capaticity | 0.6L | 0.6L | 0.6L | 1.1L | 1.1L | 1.1L | 1.1L | 1.1L |
| lubrication type | Splashing | |||||||
| fuel consumption | ≤374g/kw.h | |||||||
| noise(Away from 7 meters) | 74db | |||||||
| dimension(L*W*H)mm | 410*380*400 | 490*450*535 | ||||||
| net weight (kg) | 16KG | 20KG | 20KG | 25KG | 27KG | 32KG | 34KG | 36KG |
most popular model gasoline engine china factory made
7.0hp is the most popular and widely used engine model, our HM170F is born with an attractive looking, high quality materials, high performance and well function, it seldom has problem under normal working condition even in serious conditions. This gasoline engine is widely used on constructional machinery, reaping machines, tilling machines, irrigation machines etc. We also provide 1/2 speed reduction for this model. Well warmly welcome distributors and friends from all over the world to cooperate with us.
1.Low noise (less than 74db away from 7 meters )
2.Easy start
3.4 Stroke Motor
4.Saving fuel (<=374g/kw.h)
PACKING PLASTIC +CARTON +PLASTIC +WEAVE BELT
CE
ISO
Eatablisen in the year 1990,Chongqing Hongmei Technology Co.,Ltd is a high-ended agricultural machinery company which is specilised in R&D. manufacuring and marketing of general purpose power and agricultural machinery and started in this field since the year 2004.It started to apply for goverment allowance for agriculture machinery since the year 2008.
1) honor
Our company has passed ISO9001:2000 internatiioinal quality certification ,gained national"3C", certification ,"Chongqing famous product""Authentlcation and Marketing permission for agricultural machinery "for 13 models of products.
2) products widely accepted
We mainly specilise in manufacturing agricuture machinery such as gasoline engines water pumps gasoline generators power tillers harvesters .The products have been sold to over 20 countries all over the world until now
Chongqing Hongmei Technology Co.,Ltd looks forward to cooperating with you and creating a prosperous future.
Sunny Deng
M:+8613883932297
whatsapp:+8613883932297
Skype :Sunnydeng91
Web site :www.cqhongmei .en.china.cn
