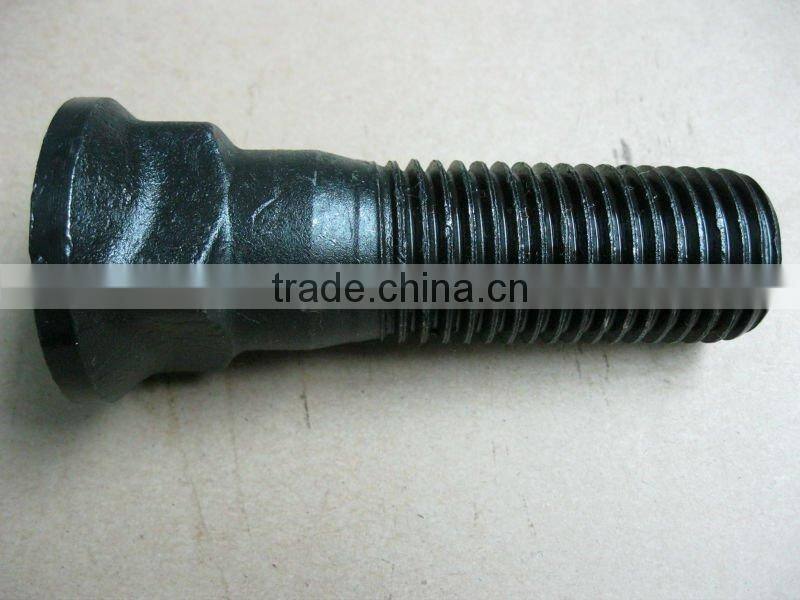

Track Bolt&nut,Sprocket Bolt And Nut

Track Bolt&nut,Sprocket Bolt And Nut thumbnail-1
Track Bolt&nut,Sprocket Bolt And Nut photo-1
US$ 0.2 - 10 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
NANTE
Model Number:
Din933,Din934
Contact Supplier Request Quote Chat Now
Jiangxi Nante Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NANTE
Model Number Din933,Din934

Specifications

1.material:40Cr, 35CrMo
2.surface:zinc plated,phosphated
3.size:M8-M48
4.grade:8.8,10.9,12.

Bolts and nuts:



Mechanical Properties

1, Material:  40 Cr.

2, Tensile strength:  Mpa quartile 1220 (magnitude 12.9) .

3, Tension loading:  N quartile 40600 N.

4, Adjusting quality:  HRC34 °-  39 °.

In add:But according to the clients sample production .

TRACK BOLT  &  NUT list

PART no. PART NAME SIZE
2A3223 TRACK  BOLT 1/2' -20UNFX47
7H3596 TRACK  BOLT 9/16' -18UNFX51
7H3597 TRACK  BOLT 5/8' -18UNFX54
5H8756 TRACK  BOLT 5/8' -18UNFX57
1S1859 TRACK  BOLT 3/4' -16UNFX55
7H3598 TRACK  BOLT 3/4'-16UNFX61
6V1792 TRACK  BOLT 3/4'-16UNFX61D
7H3599 TRACK  BOLT 7/8'-14UNFX67
6V1723 TRACK  BOLT 7/8'-14UNFX87
2M5657 TRACK  BOLT 1'-14UNSX75
3T6308 TRACK  BOLT 1'-14UNSX80
6T2638 TRACK  BOLT 1'-14UNSX90
6V1726 TRACK  BOLT 1'-14UNSX101
7T1000 TRACK  BOLT 1-1/8'-12UNFX96
6S3419 SQUARE  NUT 1/2'-20UNF(19X15)
7K2017 SQUARE  NUT 9/16'-18UNF(22X18)
1M1408 SQUARE  NUT 5/8'-18UNF(25X18)
1S1860 SQUARE  NUT 3/4'-16UNF(28.6X19)
2S2140 SQUARE  NUT 7/8'-14UNF(33X22.5)
1S6421 SQUARE  NUT 1'-14UNS(38X25)
2M5656 HEX  NUT 1'-14UNS(38X25)
7G6442 SPL.SQ.NUT 7/8'-14UNF(33X34.5)
7G0343 SPL.SQ.NUT 1'-14UNS(38X40)
5P8221 SPL.SQ.NUT 1-1/8'-12UNF(42X43)
101-32-11210 TRACK  BOLT M12X1.5X40
79039443 TRACK  BOLT M18X1.5X55F
79004259 TRACK  BOLT M18X1.5X60
20Y-32-11210 TRACK  BOLT M20X1.5X56F
9W3619 TRACK  BOLT M20X1.5X55D
71401179 TRACK  BOLT M20X1.5X62F
6Y0846 TRACK  BOLT M20X1.5X63
71401192 TRACK  BOLT     M20X1.5X65F
154-32-31210 TRACK  BOLT M20X1.5X70
207-32-51210 TRACK  BOLT M22X1.5X56F
71428357 TRACK  BOLT M22X1.5X62F
6Y9024 TRACK  BOLT M22X1.5X67D
76007851 TRACK  BOLT M22X1.5X70F
208-32-51210 TRACK  BOLT M24X1.5X65F
21M-32-11260 TRACK  BOLT M24X1.5X72
175-32-11210 TRACK  BOLT M24X1.5X78
195-32-11210 TRACK  BOLT M27X1.5X82
6Y7432 TRACK  BOLT M27X1.5X90
195-32-61210 TRACK  BOLT M30X2.0X96
M12X1.5NUT SQUARE  NUT M12X1.5(19X1.5)
4982325 SQUARE  NUT M18X1.5(27X19)
9W3361 SQUARE  NUT M20X1.5(28.6X22)
170-32-11222 SQUARE  NUT M22X1.5(32X22)
178-32-11220 SQUARE  NUT M24X1.5(35X24)
195-32-11221 SQUARE  NUT M27X1.5(41X27)
195-32-61221 SQUARE  NUT M30X2.0(46X38)
01803-02026 HEX  NUT M20X1.5(30X24)
01803-02430 HEX  NUT M24X2.0(36X24)

Satisfactory services

We can produce centre bolts as per your drawing and/samples.

We can supply package by your design.

Other services can be consulted in dealing.Track Bolt&nut,Sprocket Bolt And NutTrack Bolt&nut,Sprocket Bolt And NutTrack Bolt&nut,Sprocket Bolt And NutTrack Bolt&nut,Sprocket Bolt And Nut
