Specifications
1.With CE certificate2.One year warranty
3.With high reliability
4.With advanced engine and motor
5.With great working mass
Hot sale!! 18 ton single drum dual-amplitude vibratory road roller using advanced motor and engine
1.Main Features of QLN618S
1. Adopt SC8D180 extra-pressure diesel engine,made by shanghai diesel engine factory with big power man reserving coefficiency, which comply with the operating conditions above 4000meters altitud
2. Mechanical drive ,double frequency,double anplitude,hydraulic vibration and steering with optimal function price ratio and performance;
3. Two sets of brake devices ,and hand brake and foot pedal brake,assure the machine's safety and dependability;
4. Spacious and comfortable cab mounted on top quality rubber damping elements,with hydraulic upturn to faciliate the repairand maintenance;
5. Vibration system adopts imported hydraulic components;
6. Enhanced and special gearbox has reliable performance;
7. Smothe drum and padfoot drum can be replaced each other at any time broadening the operating space;
2.Main Technical Parameter of QLN618S
| Model | QLN618S | |
| Operating mass | kg | 18000 |
| Static linear load | N/cm | 470 |
| Vibrating amplitude | mm | 1.9/0.95 |
| Vibrating frequency | Hz | 28/35 |
| Centrifugal force | KN | 390/280 |
| Travel speed | km/h | 10.5 |
| Grade ability | % | 30 |
| Turning radius | mm | 7500 |
| Overall dimension | mm | 6435x2280x3090 |
| Vibration round width | mm | 2100 |
| Wheelbase | mm | 3380 |
| Diesel model | SC8D180 | |
| Diesel power | KW | 132 |
3.Usage of QLN618S
The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction.
This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. The machine is an ideal equipment for expressway, mining road, embankment, sea port and industrial sites.

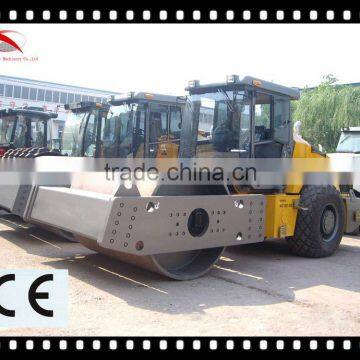

4.Pictures of QLN618S
Details
Certificates
NOTE: ^_^
We offer low price products with highest performance cost ratio.
If you are interested in our road roller, please feel free to contact us.
Electronic catalog will be sent to you upon receipt of your inquiries.
