High Quantity of Sale 85HP 4WD Agricultural Tractor With Cabin and Paddy Tyre QLN854B

High Quantity of Sale 85HP 4WD Agricultural Tractor With Cabin and Paddy Tyre QLN854B thumbnail-1
High Quantity of Sale 85HP 4WD Agricultural Tractor With Cabin and Paddy Tyre QLN854B photo-1
US$ 15,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Henan Qianli Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 62.5
Certificate Other, ISO
Brand Name QLN
Model Number QLN854B
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.4 cylinder advanced YTO engine
2.dual-stage clutch
3.hydraulic hitch system with partial separated units
4.double speed PTO

High quantity of sale 85HP 4WD agricultural tractor with cabin and paddy tyre QLN854BHigh quantity of sale 85HP 4WD agricultural tractor with cabin and paddy tyre

 --------QLN854B

 High quantity of sale 85HP 4WD agricultural tractor with cabin and paddy tyre QLN854B

Basic Configuration

Dimention: 4010*1915*2750

Engine :4 cylinder diesel engine

Rated speed(r/min):2300

PTO speed(rpm):540/760

Clutch: Single,dry ,double-acting method

Gearbox: F8+R2 shuttle gear

Linkage:  CategoryⅡrear-mounted 3-point linkage

The smallest clearance(mm):340



Technical data

Model  QLN854B
Drive type  4*4
Engine
Engine model  YC4A100-T20
Capacity of fuel tank(L) 78
Rated speed (r/min) 2300
Engine power (kw)  62.5
rated fuel consumption (g/kw·h) ≤235
Transmission
Clutch  Single chip,dry chip,double-acting method
PTO Speed(rpm)  540/760
Gearshift  F8+R2
Hydraulic system
Hydraulic output valve  one group
Three point linkage
Category of 3-point link  CategoryⅡ
Lifting capacity(at point of 610mm)KN   15
Technical parameter
Dimension (LxWxH )mm 4010*1915*2750
Wheel base(mm) 2236
Track base(mm) front wheel 1460
Track base(mm) rear wheel 1530~1830
The smallest clearance(mm) 340
Front tyre  8.3-24
Rear tyre  14.9-30

 Mail specification of 80B Series Tractors

Item

unit

QLN

QLN

700

750

800B

850B

704

754

804B

854B

Wheel type

--

4*2

4*4

Dimension(L*M*H)

mm

4010*1915*2750

Engine specifications

engine type



4 cylinder in-line, water cooled, 4-stroke, direct injection

rated power

kW

51.5

55

59

62.5

51.5

55

59

62.5

rated speed

r/min

2300(YCD4J11T,LR4B5,YC4A100),       2200(YT4B,YC4A90)

PTO power

kW

43.8

46.9

50.2

53.2

43.8

46.9

50.2

53.2

Fuel tank (volume)

L

78

Hydraulic output valve

--

one group

Transmission System

clutch

--

Single chip, dry chip, double-acting method

gearbox

--

2×(4+1)2×(4+1)×2combined sliding sleeve gear change

PTO speed

rpm

540/760

Suspension system

suspension type

--

three-point suspension

lifting capacity

≥kN(

12.4

13.3

14.2

15

12.4

13.3

14.2

15

Walking device

power output

type

--

rear mounted detached or semi-detached

speed

r/min

540/760 (or 540/1000;or 540;or 760;or 1000)

the smallest clearance

mm

430 front axle tie-rod

340 transfer case

wheel base

mm

2188

2236

front tyre

mm

6.5-20

8.3-24

rear tyre

mm

14.9-30

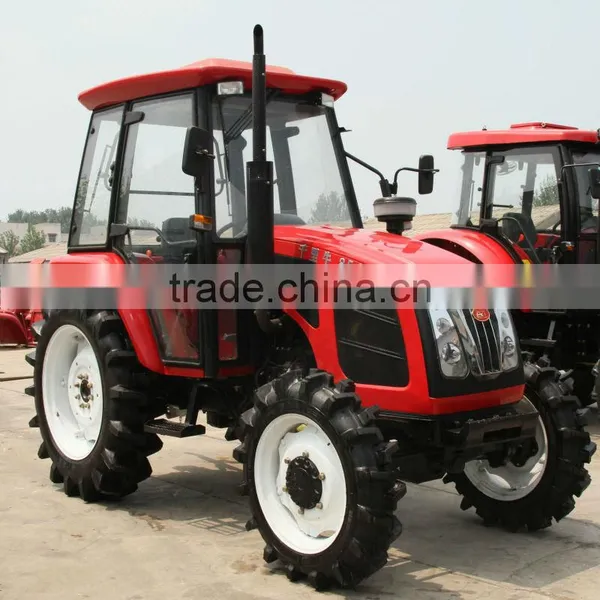

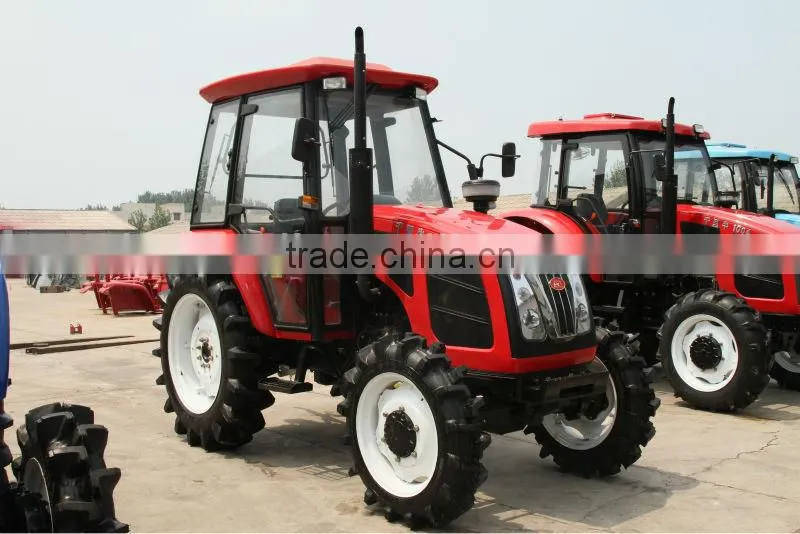

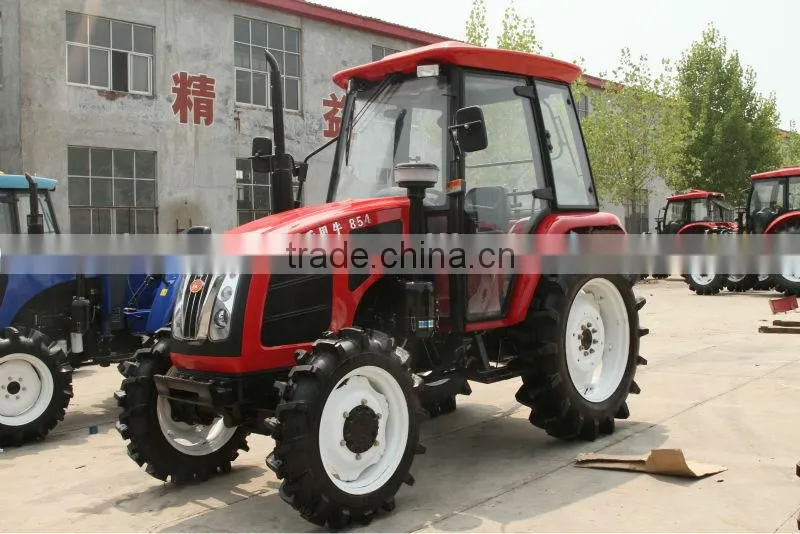

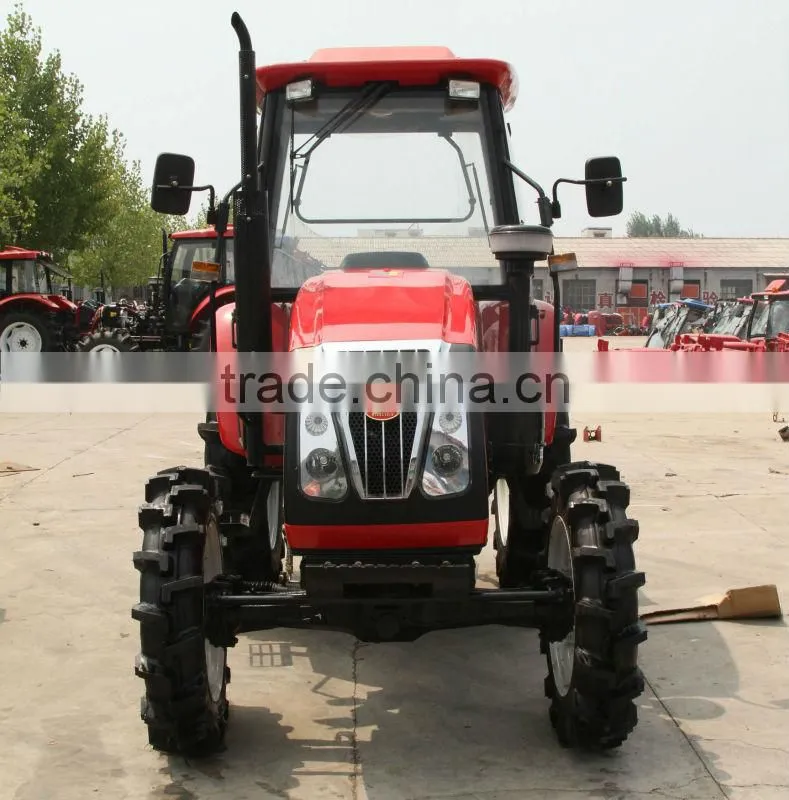

Picture of QLN854B

High quantity of sale 85HP 4WD agricultural tractor with cabin and paddy tyre QLN854B

 High quantity of sale 85HP 4WD agricultural tractor with cabin and paddy tyre QLN854B

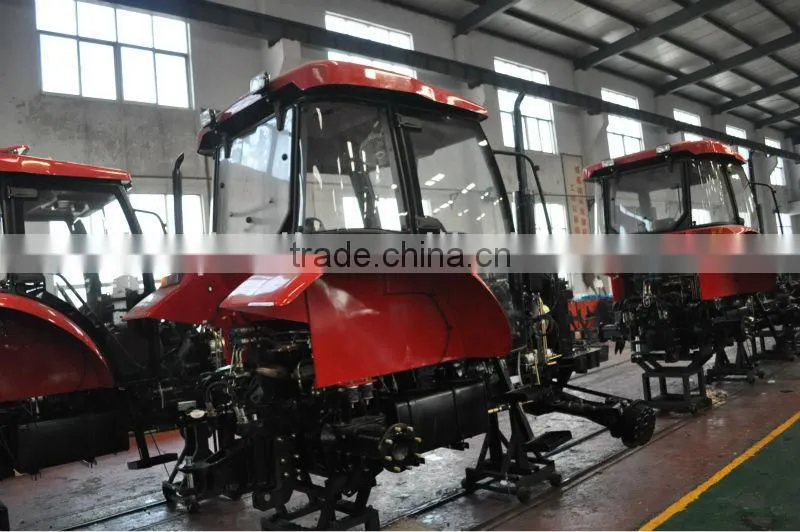

Assemble line of QLN854B

High quantity of sale 85HP 4WD agricultural tractor with cabin and paddy tyre QLN854B

our foreign clients

 High quantity of sale 85HP 4WD agricultural tractor with cabin and paddy tyre QLN854B







High quantity of sale 85HP 4WD agricultural tractor with cabin and paddy tyre QLN854B

Any questions and inquires are welcomed !!!

High quantity of sale 85HP 4WD agricultural tractor with cabin and paddy tyre QLN854B
