Specifications
Seed planter for tractor1.70hp 4wd tractor
2.Famous engine like YTO,Lovol,etc
3.Reinforced PTO,hi-reliability
Welcome to Qianli Machinery Co., Ltd.
Henan Qianli Machinery Co., Ltd, is a professional manufacturer of agricultural machines. With 25 years development, Qianli now covers an area of 11 hectare and has 13 modernized process lines. Our products have been exported to many other countries, such as Romania, Russia, Ukraine, Tanzania, Thailand, Australia, etc.
1.PARAMETER

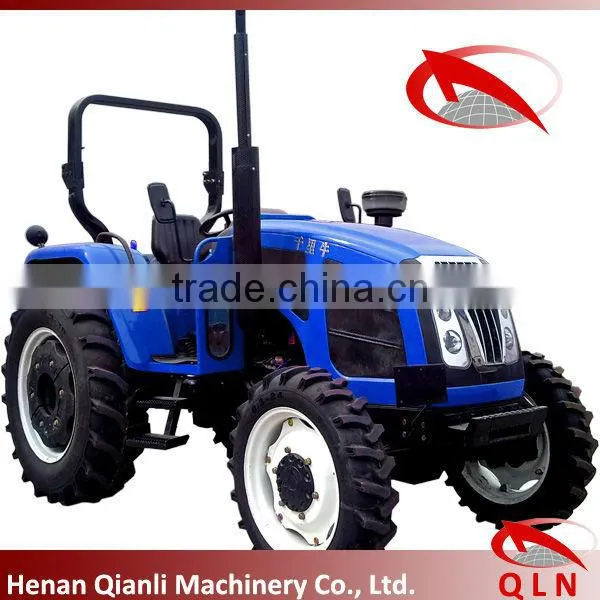

(1)70hp 4wd tractor
(2)Famous engine like YTO,Lovol,etc
(3)Reinforced PTO,hi-reliability
Seed planter for tractor
| Model | QLN704 (70HP) |
| Drive type | 4×4 |
| Technical parameter | |
| Dimension(L×W×H)(mm) | 4010×1915×2750 |
| Wheel base (mm) | 2236 |
| Wheel tread F/R (mm) | 1460/1530~1830 |
| Adjust mothed of wheel tread | Unadjustment/Level adjustment |
| Min. ground clearance (mm) | 340 |
| Ballast F/R (KG) | 220/480 |
| Engine | |
| Engine type | Vertical, water cooled, 4-stroke, direct injection |
| Manufacturer | YTO; Yuchai |
| Volume of fuel tank (L) | 78 |
| Rated power (kW) | 51.5 |
| Rate oil consumption rate | ≤2.04 |
| Transmission | |
| Clutch | Single wet duel-stage |
| Gear box | F8+R2 |
| Speed of PTO (r/min) | 540/760 |
| Steering system | |
| Steering system type | Mechanical feedback hydrostatic steering |
| Working device | |
| Model of suspension mechanism | Rear mounted,3-point linkage, categoryⅠor Ⅱ |
| Tilling depth control type | Floating control |
| Max. lifting force at suspension point 610 mm (kN) | 12.4 |
| Hydraulic output valve | A pair or 2-pair (multi-way valve) |
| PTO shaft size | Φ38×8 |
2.Tractors with cabin
70HP tractor with ROPS
QLN 704 4wd with paddy tyres
Front face of tractor
The backside of the tractor
QLN 80 series tractors
QLN tractor have over 70 types tractor main in 6 series.Let me show you below:
1.35 series 250-354 (from 25hp-35hp 2/4wd)
2.40 series 400-554B (from 40hp-55hp 2/4wd)
3.50 series 550-654 (from 55hp-65hp 2/4wd)
4.80B series 700-854B (from 70hp -85hp 2/4wd)
5.80A series 800-1004 (from 80hp-100hp 2/4wd)
6.100 series 1104-1304 (from 110hp-130hp 4wd)
Comprehensive product series make your purchasing easily ! ! !
3.More Details
4.QLN’ Production line
5. Visitors from the world
Welcome to visit our factory
6.Kinds of farm equipment
7.Quality guarantee
8.Sales network
With good quality and competitive price, our products have beenexported to Romania,Russia, Ukraine,Tanzania, Congo, Iraq,Thailand, Malaysia,Australia, Venezuela,Chile, etc.
Customer First,
Contact us now!!!
Cindy Yang
Mob:+86-15515861437
Tel:+86-371-55051327
Fax:+86-371-65316358
E-mail;sales06(at)
Skype;QLN.Cindy.Yang
Website;http://hnqljx.en.china.cn/
http://hnqianli.en.china.cn/
If you are interested in our tractor, we will give you the reasonable price and the best quality guarantees!!
