Specifications
Equipped with famous engine12F+12R collor shift
Good quality Chinese tractor
NEW 50hp 4WD Farm Wheel BIG Tractor
Welcome to Qianli Machinery Co., Ltd.
Henan Qianli Machinery Co., Ltd, is a professional manufacturer of agricultural machines. With 25 years development, Qianli now covers an area of 11 hectare and has 13 modernized process lines. Our products have been exported to many other countries, such as Romania, Russia, Ukraine, Tanzania, Thailand, Australia, etc.

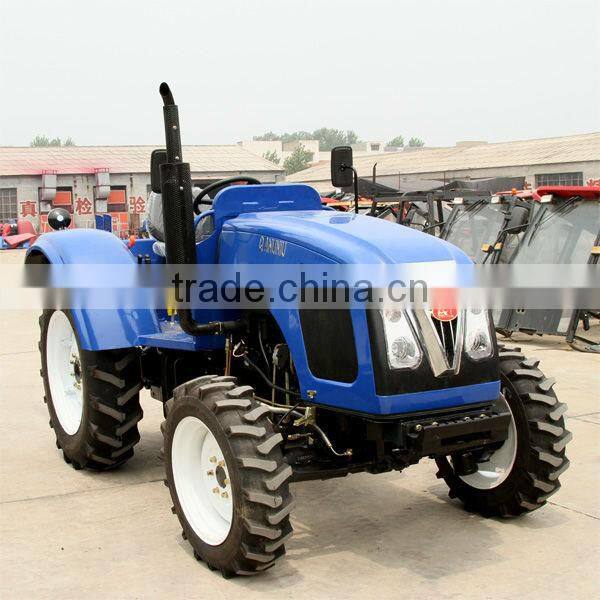

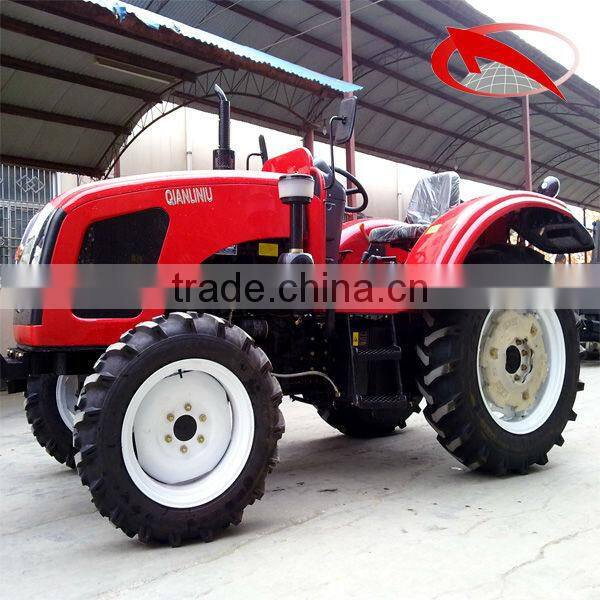

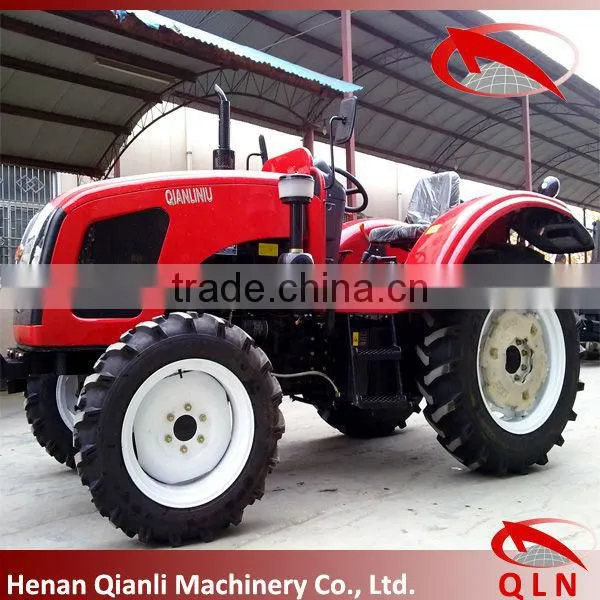

1.QLN504 4WD 55HP Tractor with cabin
Famous engine featuring strong power, high reliability, and large torque reserve factor.
2.More details
Steering wheel
Comfortable seat
Work device
QLN tractor have over 70 types tractor main in 6 series.Let me show you below:
1.30 series 250-354 (from 25hp-35hp 2/4wd)
2.40 series 400-554B (from 40hp-55hp 2/4wd)
3.50 series 550-654 (from 55hp-65hp 2/4wd)
4.80 series 700-854B (from 70hp -85hp 2/4wd)
5.90 series 800-1004 (from 80hp-100hp 2/4wd)
6.100 series 1104-1304 (from 110hp-130hp 4wd)
Comprehensive product series make your purchasing easily ! ! !
- Famous brand with " QLN " has long history and famous in and abroad;
- Best and famous brand engines which feature large reserve power, low oil consumption, easy starting, and good economic performance;
- Most advanced chasis design, more power and more stable performance;
- Diverse gears, shuttle shift, creeper shift, speed more reasonable, operation comfortable;
- Strong lift force, matching all kinds of agricultural machinery;
3.PARAMETER
| Model | QLN 504 |
| Drive type | 4×4 |
| Technical parameter | |
| Dimension(L×W×H)(mm) | 3980×1635×2130 |
| Wheel base (mm) | 1990 |
| Wheel tread F/R (mm) | 1400/1300~1600 |
| Adjust method of wheel tread | Level adjustment |
| Min. ground clearance (mm) | 325 |
| Ballast F/R (KG) | 144/360 |
| Engine | |
| Engine type | Vertical ;water cooled ; 4-stroke ;direct injection |
| Brand | Quanchai ;YTO ; Yuchai |
| Volume of fuel tank (L) | 43 |
| Rated power (kW) | 36.8 |
| Rate oil consumption rate | ≤2.04 |
| Transmission | |
| Clutch | Single,dry,dual-stage |
| Gear box | 12F+12R |
| Speed of PTO (r/min) | 540/760 |
| Steering system | |
| Steering system type | Hydraulic steering |
| Working device | |
| Model of suspension mechanism | Rear mounted, 3-point linkage, categoryⅠ or Ⅱ |
| Tilling depth control type | Floating control (separated) |
| Max. lifting force at suspension point 610 mm (kN) | ≥8.3 |
| Hydraulic output valve | A pair (multi-way valve) |
| PTO specification | Φ38×8 or Φ35×6 or Φ34.67×21 |
(1)Equipped with famous engine
(2)12F+12R collor shift
(3)Good quality Chinese tractor
(4)NEW 50hp 4WD Farm Wheel BIG Tractor
4. Tractor in the exhibition
5.Kinds of farm equipment
6.Quality guarantee
Customer First,
Contact us now!!!
With good quality and competitive price, our products have been exported to Romania, Ukraine,Tanzania, Congo, Iraq,Thailand, Malaysia,Australia, Venezuela,Chile, etc.
