Specifications
farm machinery & equipment1. E-MARK certificate
2. High agricultural adaptability
3. Reinforced PTO, hi-reliability

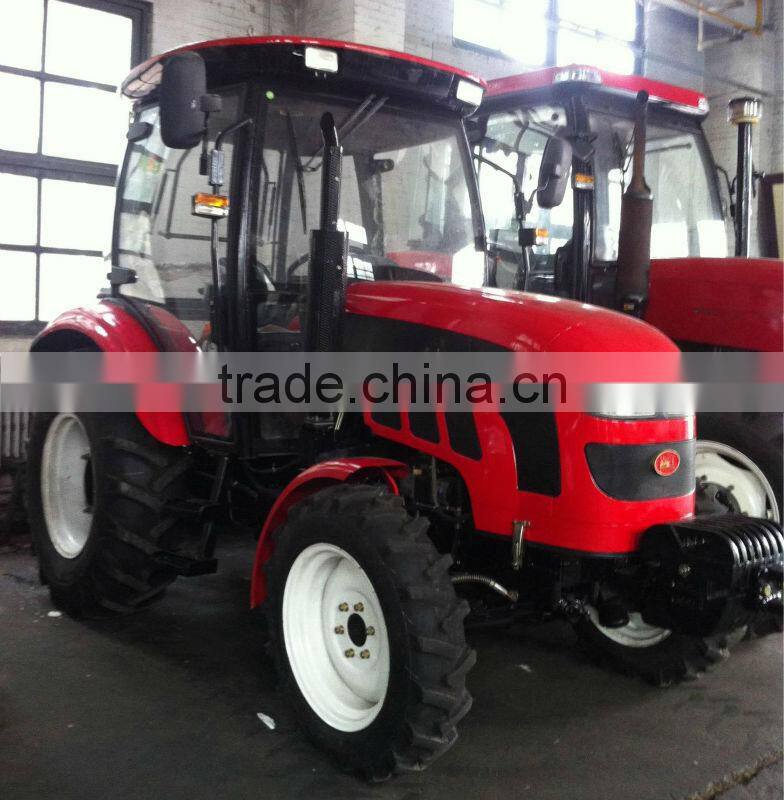

2013 new style farm machinery & equipment
Advantages
- 12+12 shuttle gear change, all gears are arranged in order, good adaptability in all agriculture conditions.
- Closed paddy rice front drive axle, high operation efficiency and suitable for paddy operation
- Optional air brake can complete more farm work and transport operation.
- Reinforced PTO shaft, hi-reliability.
- Can install famous domestic engines like Guangxi Yuchai, YTO Brands, powerful and reliable.

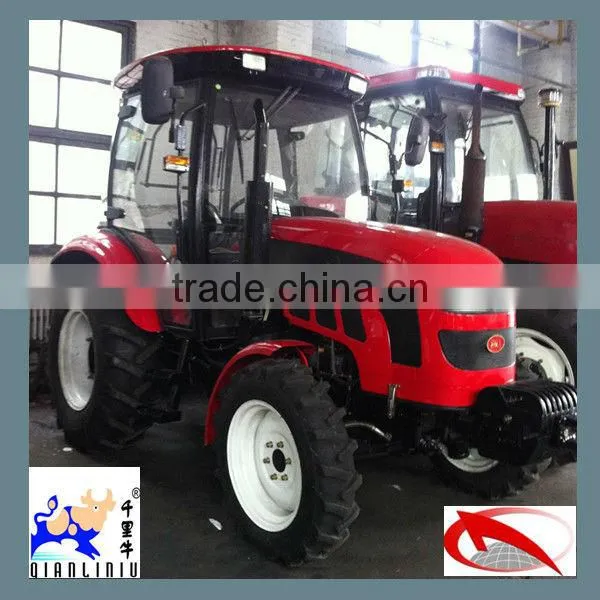

product pictures
QLN tractor have over 70 types tractor main in 6 series.
1.30 series 250-354 (from 25hp-35hp 2/4wd)
2.40 series 400-554B (from 40hp-55hp 2/4wd)
3.50 series 550-654 (from 55hp-65hp 2/4wd)
4.80 series 700-854B (from 70hp -85hp 2/4wd)
5.90 series 800-1004 (from 80hp-100hp 2/4wd)
6.100 series 1104-1304 (from 110hp-130hp 4wd)
technical parameters
| Model | QLN 504 |
| Drive type | 4×4 |
| Technical parameter | |
| Dimension(L×W×H)(mm) | 3980×1635×2130 |
| Wheel base (mm) | 1990 |
| Wheel tread F/R (mm) | 1400/1300~1600 |
| Adjust method of wheel tread | Level adjustment |
| Min. ground clearance (mm) | 325 |
| Ballast F/R (KG) | 144/360 |
| Engine | |
| Engine type | Vertical ;water cooled ; 4-stroke ;direct injection |
| Brand | Quanchai ;YTO ; Yuchai |
| Volume of fuel tank (L) | 43 |
| Rated power (kW) | 36.8 |
| Rate oil consumption rate | ≤2.04 |
| Transmission | |
| Clutch | Single,dry,dual-stage |
| Gear box | 12F+12R |
| Speed of PTO (r/min) | 540/760 |
| Steering system | |
| Steering system type | Hydraulic steering |
| Working device | |
| Model of suspension mechanism | Rear mounted, 3-point linkage, categoryⅠ or Ⅱ |
| Tilling depth control type | Floating control (separated) |
| Max. lifting force at suspension point 610 mm (kN) | ≥8.3 |
| Hydraulic output valve | A pair (multi-way valve) |
| PTO specification | Φ38×8 or Φ35×6 or Φ34.67×21 |
agricultural implements
our clients
Our company
Basic Information
| Product/Service (We Sell): | Wheel Tractor, Walking Tractor, Cultivator |
| Number of Employees: | 301 - 500 People |
Trade & Market
| Main Markets: | Southeast Asia |
| Main Customers: | Ukraine,Russia,Congo,etc |
| Total Annual Sales Volume: | US$2.5 Million - US$5 Million |
| Export Percentage: | 21% - 30% |
| Total Annual Purchase Volume: | Above US$100 Million |
Factory Information
| Factory Size (ters): | Above 100,000 square meters |
| Factory Location: | No. 1, Fuxing Road, Industrial Cluster, Weishi County, Kaifeng City, Henan Province, China |
| Number of Production Lines: | Above 10 |
| Number of R&D Staff: | Less than 5 People |
| Number of QC Staff: | 5 - 10 People |
| Management Certification: | ISO 9001:2008 ISO 14001:2004 GB/T 28001-2001 2004 |
| Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
Our honors
attention :
QLN is the most popular Chinese tractors for export in China now.
QLN Two-wheel drive or four-wheel drive wheeled tractors are series tractors which feature large tractive force,
low fuel consumption, varied functions, and being easy to operate, wide applications and reliable operations
Please do not hesitate to contact us , if you are interested in our products.
we will try our best to meet your needs !!!
looking forward to cooperating with you !!!
