Henan Qianli Machinery Very Good Diesel Engine Tractor QLN 50-65hp Big Agricultural Wheeled Tractor

Specifications

Large chassis ,smooth operation;
ISO9001 Certified and CE, E-mark on the way;
QLN 50-65hp big agricultural wheeled tractor

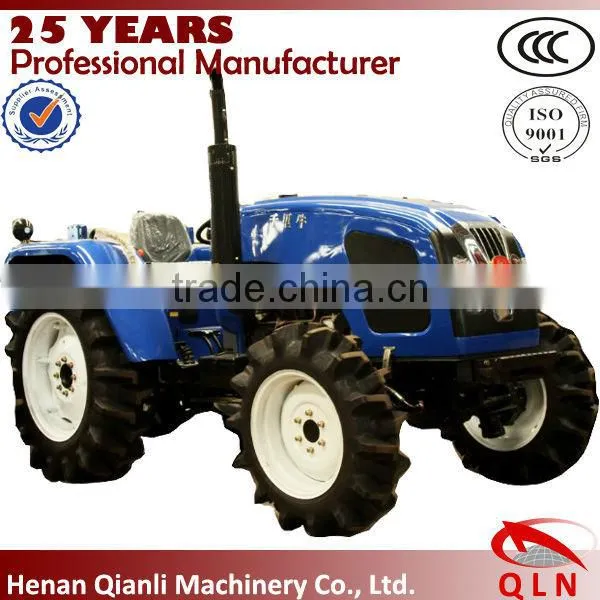

25 YEARS PROFESSIONAL MANUFACTURER



25-130HP TRACTORS ARE SATISFIED ALL YOUR REQUIREMENTS!!!



HURRY UP AND TAKE ACTION!!!







QLN tractor have over 70 types tractor main in 6 series. Let me show you below:

1.35 series QLN250-354 (from 25hp-35hp 2/4wd)

2.40 series QLN400-554B (from 40hp-55hp 2/4wd)

3.55 series QLN550-654 (from 55hp-65hp 2/4wd)

4.80 series QLN700-854B (from 70hp -85hp 2/4wd)

5.90 series QLN800-1104 (from 80hp-110hp 2/4wd)

6.100 series QLN1204-1304 (from 120hp-130hp 4wd)

Comprehensive product series make your purchasing easily! ! !







QLN 654 HIGH QUALITY AGRICULTURAL TRACTOR



Main Features:

1. The diesel engine .which is manufactured using advanced British technology. Delivers large torque, high fuel efficiency and low emission. PERKINS engine is also optional.
2. The transmission system is made on the basis of Italian technology. The top speed can be more than 35km/h
3. The full hydraulic steering system is utilized for easy operation.
4. High safety is ensured due to the use of the wet disc brake.
5. Optional new cab is not only elegant but also can be equipped with an air conditioning system so as to lifer the driver a high level of comfort. Our tractor adopts double action clutch.





BASIC SPECIFICATION:



Model	QLN 654 (65HP)
Drive type	4×4
Technical parameter
Dimension(L×W×H)(mm)	3980×1635×2150
Wheel base (mm)	2150
Wheel tread F/R (mm)	1400/1300~1600
Adjust mothed of wheel tread	Level adjustmeng
Min. ground clearance (mm)	325
Ballast F/R (KG)	144/360
Engine
Engine type	Vertical ;water cooled ;                    4-stroke ;direct injection
Brand	Quanchai ;YTO ; Yuchai
Volume of fuel tank (L)	43
Rated power (kW)	48
Rate oil consumption rate	≤2.04
Transmission
Clutch	Single,dry,dual-stage
Gear box	12F+12R
Speed of PTO (r/min)	540/760
Steering system
Steering system type	Hydraulic front wheel steering
Working device
Model of suspension mechanism	Rear mounted, 3-point linkage, category Ⅰor Ⅱ
Tilling depth control type	Floating control (separated)
Max. lifting force at suspension point 610 mm (kN)	≥11.0
Hydraulic output valve	A pair or 2-pair (multi-way valve)
PTO specification	Φ38×8 or Φ35×6 or Φ34.67×21



 Large chassis ,smooth operation.

 ISO9001 Certified and CE, E-mark on the way.

  QLN 50-65hp big agricultural wheeled tractor







MORE DETAILS SHOW:

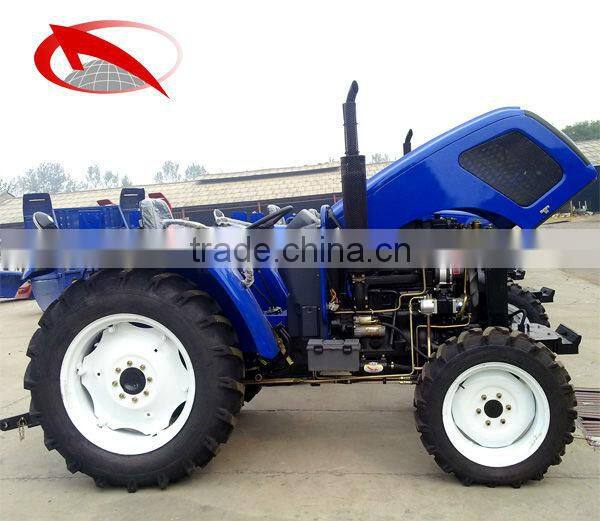

QLN 654 FARM TRACTORS



 A COMPLETE SET OF MACHINERY:



  Henan Qianli Machinery very good diesel engine tractor QLN 50-65hp big agricultural wheeled tractor
