small mini tractors for sale QLN 55hp 4wd

Specifications

small tractors for sale
1.YTO/YUCAI 4 diesel engine
2.High efficiency,Low fuel consumption
3.more powerful



   small mini tractors for sale QLN 55hp 4wd



1.Company's introduction

Henan Qianli mechinery co.,LTD is located in China's first major agricultural province of henan. It is 40 kilometers, the ancient capital of kaifeng zhongyuan international airport 45 kilometers,   the geographical position is superior, the transportation is convenient. the geographical position is superior, the transportation is convenient. We are one of the key enterprises specializing in manufacturing and exporting Chinese farm machines. one of the famous manufacturers specializing in producing tractors and other farm equipment.







2.QLN554 Farm tractor product introduction



The basic configuration:





Basic configuration
Model	QLN-550A/554A
Dimensions	Length×Width×Height(mm)	3980×1635×2150
	Wheel Tread(mm)	Front Wheel(mm)	1200—1500(4WD)         1400(2WD)
		Rear Wheel(mm)	1300—1600
	Min.Ground Clearance(mm)	325
Dry Mass	With Cab(kg)	2140(2WD) 2370(4WD)
	Without Cab(kg)	1960(2WD) 2190(4WD)
Engine	Trade Mark or Brand	YTO/YUCHAI
	Engine Model	Vertical Water Cooled 4-stroke
		Directly Injection
	Number of Cylinder	4
	Cooling System Type	Water Cooled
	Rated Power(kw)	40.5KW
	Max. Torsion(N.M)	225
	Rated Speed(r/min)	2200(YCD4J11T-65),2300(YT4A2-23)
Fuel Tank	Volume(L)	43
Transmission System	Clutch	Single,Dry,Dual Stage Type
	Gear Box	F12+R12
	Differential	Closed 4-planetary Gears
	Differential Lock	Mechanical Sliding Sleeve
Braking System	Wet Double Plate Disc Brake
Running System	Tyre Model	F/R(2WD)	6.0—16/12.4—28
		F/R(4WD)	8.3—20/12.4—28
Steering System	Hydraulic Wheel Steering
Working Device	Hydraulic System Type	Partial seperated lifter

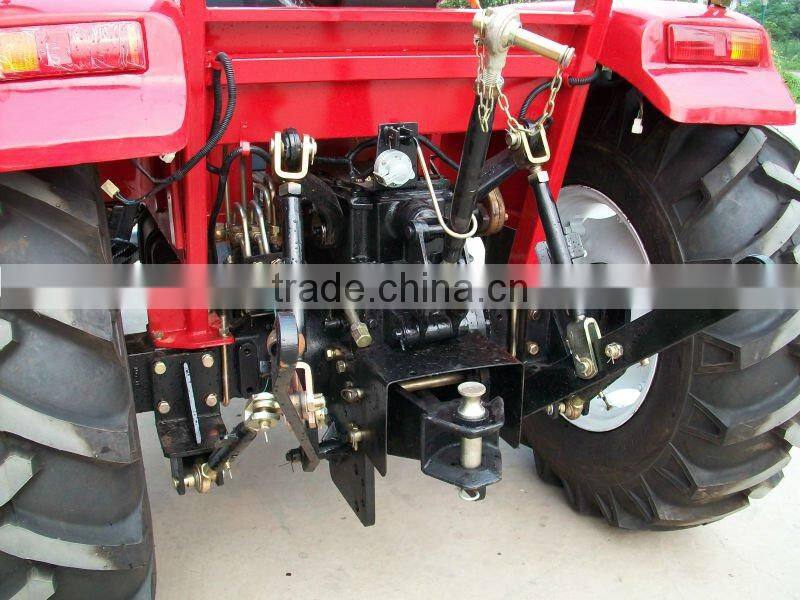

	Linkage Type	II Rear Mount 3-point Linkage
	PTO(Standard)	φ38,8teeth φ35,6teeth
	PTO Speed(r/min)	540/760
	Drawbar Type	Fixed Drawbar
Optional configuration
Cab	AC	Heater	Air-brake
Adjustable Seat	Multiple Unit Valve	ROPS	Sunvisor
Radio
Bob-weight	Frontballest	8×13=104kg 13kg/pcs
	Rearballast	2×80=160kg 80kg/pcs
Paddy Tyre	Front Tyre	8.3—20
	Rear Tyre	12.4/11—28

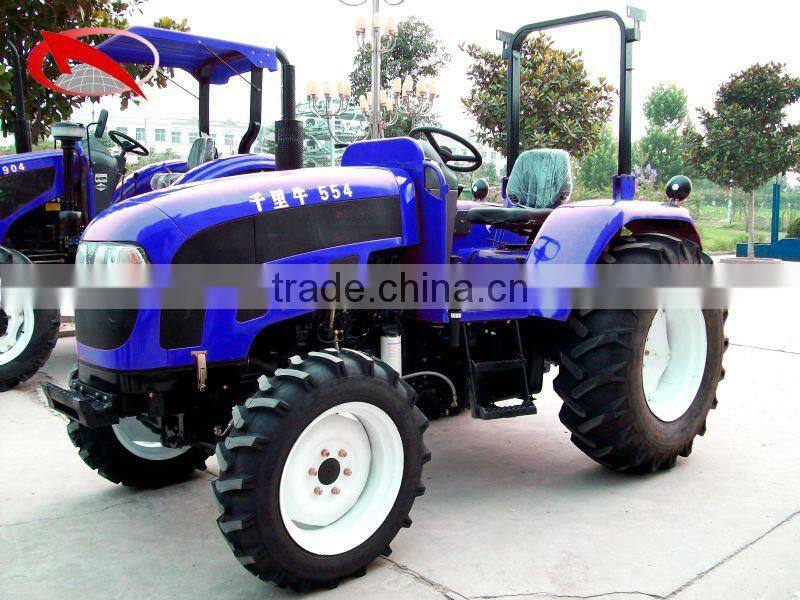

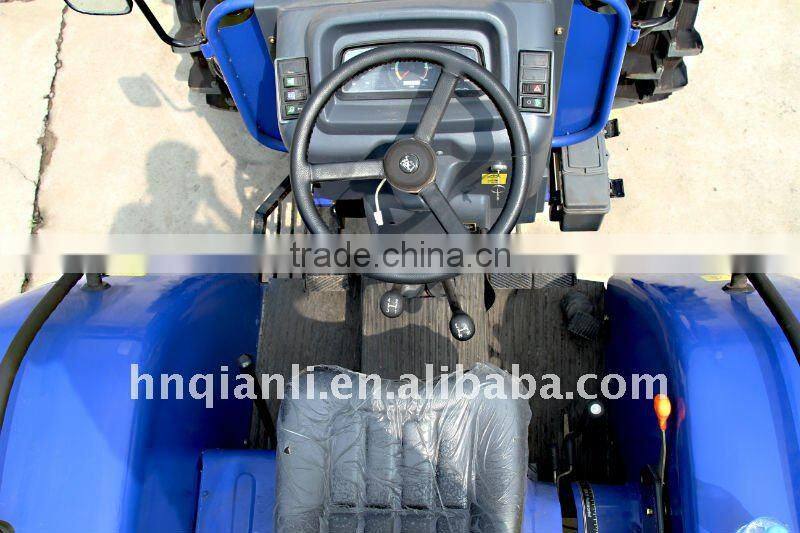

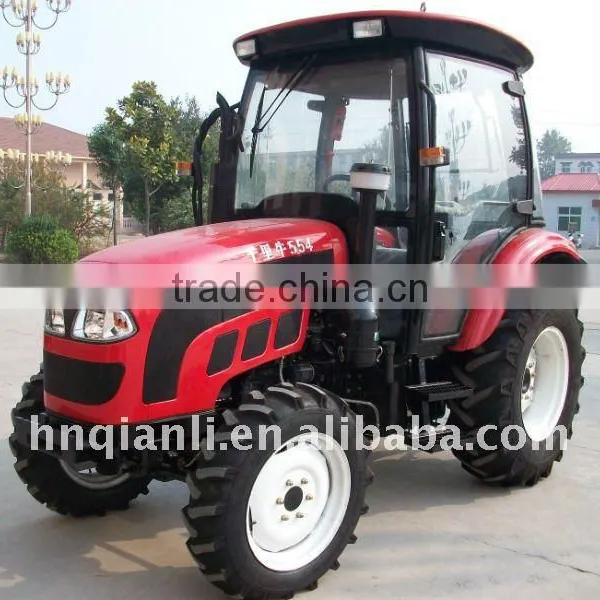

3.QLN-554 pictures









4.Agricultural implements







5.Certificates
