QLN504 with ce certification mini farm tractor for sale qln504

Specifications

farm tractor for sale qln504 :
1. E-MARK certificate
2. High agricultural adaptability
3. Reinforced PTO, high reliability

        QLN504 with ce certification mini farm tractor for sale qln504



Specifications



• 12+12 shuttle gear change, all gears are arranged in order, good adaptability in all agriculture conditions.
• Closed paddy rice front drive axle, high operation efficiency and suitable for paddy operation
• Optional air brake can complete more farm work and transport operation.
• Reinforced PTO shaft, hi-reliability.
• Can install famous domestic engines like Guangxi Yuchai, YTO Brands, powerful and reliable.

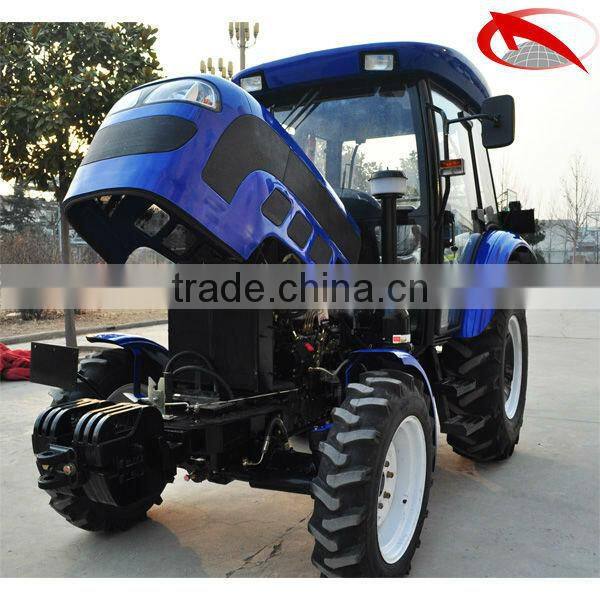

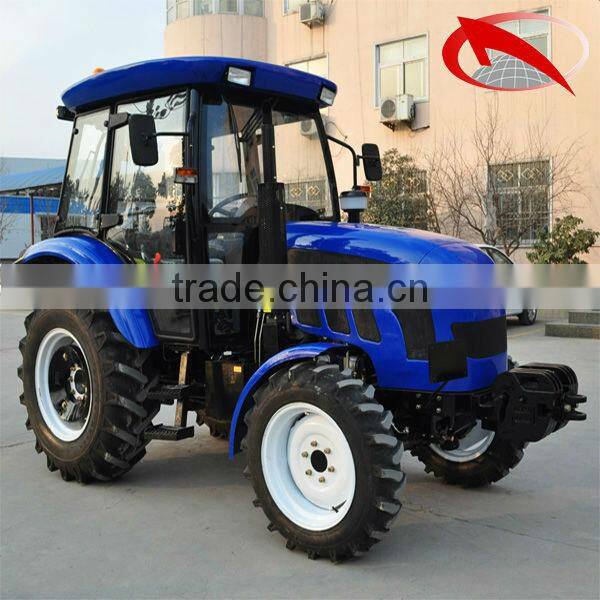

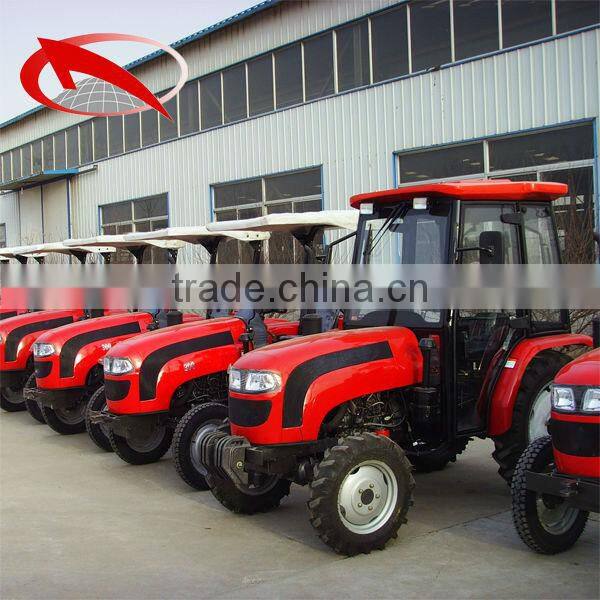

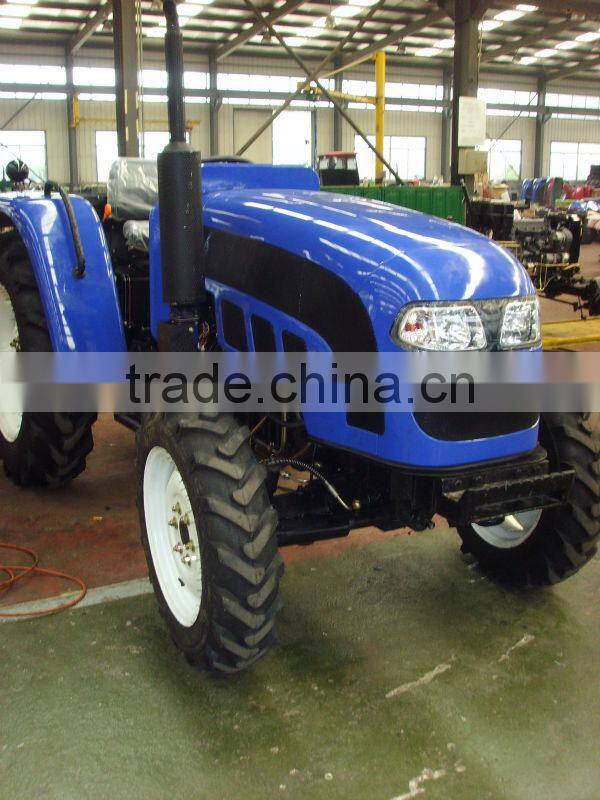

product pictures















 QLN tractor have over 70 types tractor main in 6 series.





1.30 series 250-354 (from 25hp-35hp 2/4wd)



2.40 series 400-554B (from 40hp-55hp 2/4wd)



3.50 series 550-654 (from 55hp-65hp 2/4wd)



4.80 series 700-854B (from 70hp -85hp 2/4wd)



5.90 series 800-1004 (from 80hp-100hp 2/4wd)



6.100 series 1104-1304 (from 110hp-130hp 4wd)











  technical parameters





Model	QLN 504
Drive type	4×4
Technical parameter
Dimension(L×W×H)(mm)	3980×1635×2130
Wheel base (mm)	1990
Wheel tread F/R (mm)	1400/1300~1600
Adjust method of wheel tread	Level adjustment
Min. ground clearance (mm)	325
Ballast F/R (KG)	144/360
Engine
Engine type	Vertical ;water cooled ; 4-stroke ;direct injection
Brand	Quanchai ;YTO ; Yuchai
Volume of fuel tank (L)	43
Rated power (kW)	36.8
Rate oil consumption rate	≤2.04
Transmission
Clutch	Single,dry,dual-stage
Gear box	12F+12R
Speed of PTO (r/min)	540/760
Steering system
Steering system type	Hydraulic steering
Working device
Model of suspension mechanism	Rear mounted, 3-point linkage, categoryⅠ or Ⅱ
Tilling depth control type	Floating control (separated)
Max. lifting force at suspension point 610 mm (kN)	≥8.3
Hydraulic output valve	A pair (multi-way valve)
PTO specification	Φ38×8 or Φ35×6 or Φ34.67×21











 agricultural implements







our clients











  Our company





Basic Information



	Product/Service (We Sell):	Wheel Tractor, Walking Tractor, Cultivator
	Number of Employees:	301 - 500 People



Trade & Market



	Main Markets:	Southeast Asia Africa Oceania
	Main Customers:	Ukraine,Russia,Congo,etc
	Total Annual Sales Volume:	US$2.5 Million - US$5 Million
	Export Percentage:	21% - 30%
	Total Annual Purchase Volume:	Above US$100 Million



Factory Information



	Factory Size (ters):	Above 100,000 square meters
	Factory Location:	No. 1, Fuxing Road, Industrial Cluster, Weishi County, Kaifeng City, Henan Province, China
	Number of Production Lines:	Above 10
	Number of R&D Staff:	Less than 5 People
	Number of QC Staff:	5 - 10 People
	Management Certification:	ISO 9001:2008   ISO 14001:2004   GB/T 28001-2001   2004
	Contract Manufacturing:	OEM Service Offered   Design Service Offered   Buyer Label Offered













 Our honors









 attention :



QLN is the most popular Chinese tractors for export in China now.



QLN Two-wheel drive or four-wheel drive wheeled tractors are series tractors which feature large tractive force,

low fuel consumption, varied functions, and being easy to operate, wide applications and reliable operations







Please do not hesitate to contact us , if you are interested in our products.



we will try our best to meet your needs !!!











 looking forward to cooperating with you !!!
