Specifications
cheap tractor1.use for farm or garden
2.famous brand famous engine
3.one year quality guarantee
4.optional devices
tractor 55hp seed planter for tractor

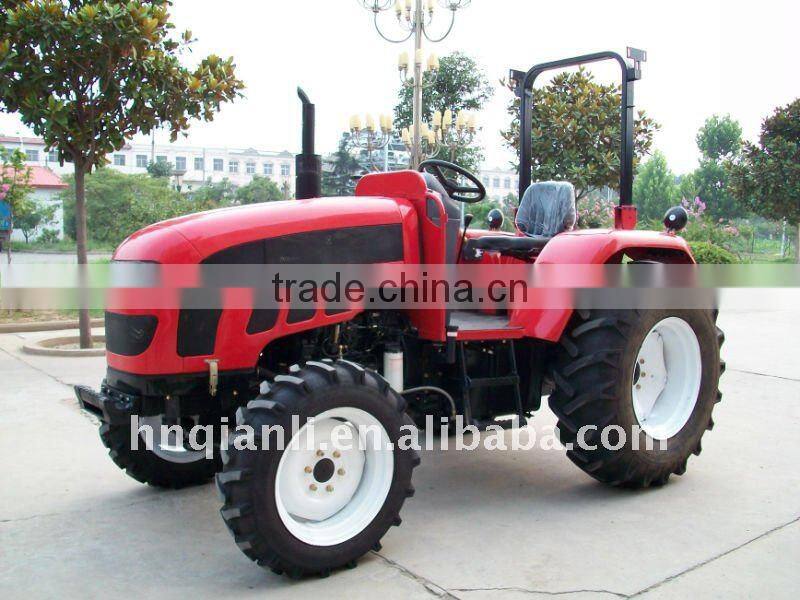

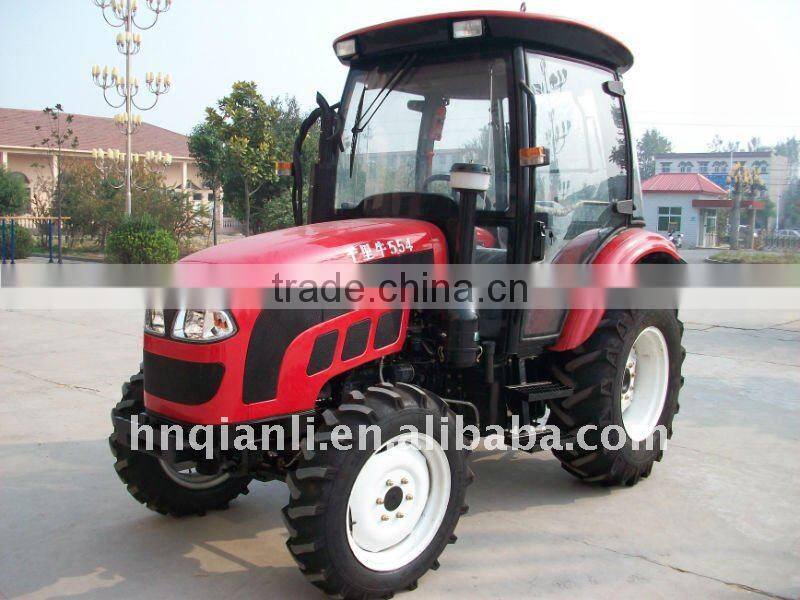

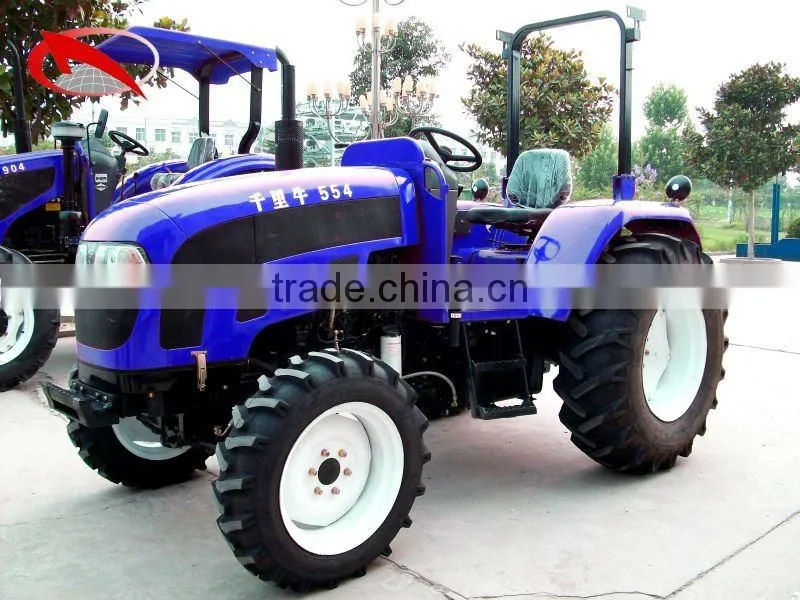

QLN-554 pictures show

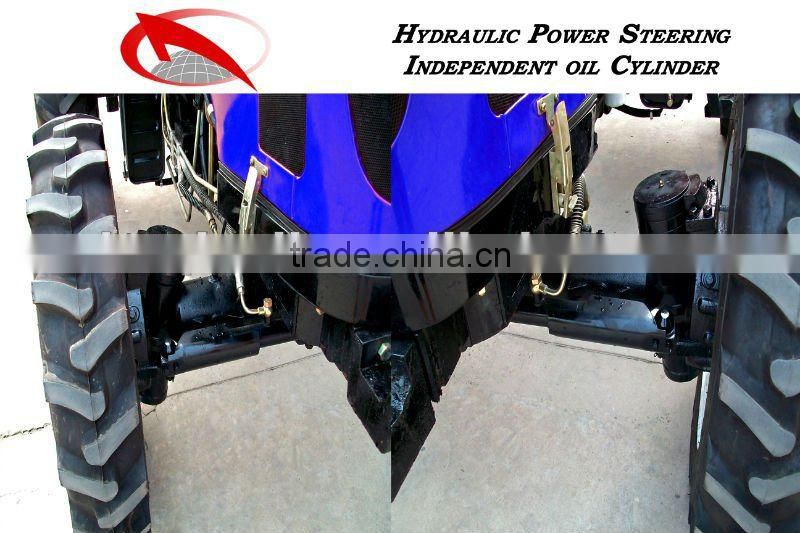

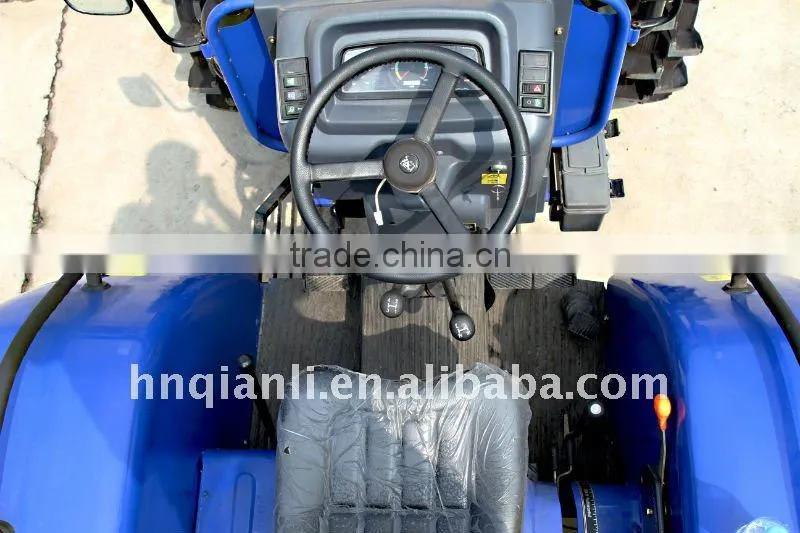

QLN-554 details pictures
QLN-554 parameters
| Basic configuration | |||
| Model | QLN-550A/554A | ||
| Dimensions | Length×Width×Height(mm) | 3980×1635×2150 | |
| Wheel Tread(mm) | Front Wheel(mm) | 1200—1500(4WD) 1400(2WD) | |
| Rear Wheel(mm) | 1300—1600 | ||
| Min.Ground Clearance(mm) | 325 | ||
| Dry Mass | With Cab(kg) | 2140(2WD) 2370(4WD) | |
| Without Cab(kg) | 1960(2WD) 2190(4WD) | ||
| Engine | Trade Mark or Brand | YTO/YUCHAI | |
| Engine Model | Vertical Water Cooled 4-stroke | ||
| Directly Injection | |||
| Number of Cylinder | 4 | ||
| Cooling System Type | Water Cooled | ||
| Rated Power(kw) | 40.5KW | ||
| Max. Torsion(N.M) | 225 | ||
| Rated Speed(r/min) | 2200(YCD4J11T-65),2300(YT4A2-23) | ||
| Fuel Tank | Volume(L) | 43 | |
| Transmission System | Clutch | Single,Dry,Dual Stage Type | |
| Gear Box | F12+R12 | ||
| Differential | Closed 4-planetary Gears | ||
| Differential Lock | Mechanical Sliding Sleeve | ||
| Braking System | Wet Double Plate Disc Brake | ||
| Running System | Tyre Model | F/R(2WD) | 6.0—16/12.4—28 |
| F/R(4WD) | 8.3—20/12.4—28 | ||
| Steering System | Hydraulic Wheel Steering | ||
| Working Device | Hydraulic System Type | Partial seperated lifter | |

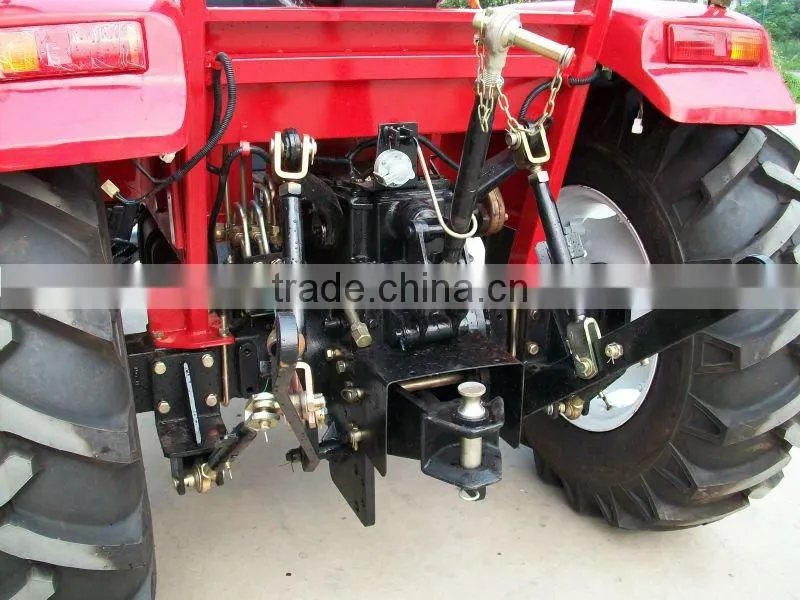

| Linkage Type | II Rear Mount 3-point Linkage | ||
| PTO(Standard) | φ38,8teeth φ35,6teeth | ||
| PTO Speed(r/min) | 540/760 | ||
| Drawbar Type | Fixed Drawbar | ||
| Optional configuration | |||
| Cab | AC | Heater | Air-brake |
| Adjustable Seat | Multiple Unit Valve | ROPS | Sunvisor |
| Radio | |||
| Bob-weight | Frontballest | 8×13=104kg 13kg/pcs | |
| Rearballast | 2×80=160kg 80kg/pcs | ||
| Paddy Tyre | Front Tyre | 8.3—20 | |
| Rear Tyre | 12.4/11—28 | ||
QLN-554 features
1.This tractors with strong power, compact structure, advanced design, and complete function.
2.Equipped with good quality engine showing advanced capacity, low fuel consumption and high economic efficiency
3.It has flat floor, right side installed operation system, all these characteristics makes operation comfortable and efficiency.
4.43L enlarged fuel tank, ensure long working time
5.F12+R12 shuttle type shift Transmission type, with reasonable matching of gear position and strong agricultural adaptability.
6. Independent hydraulic fuel system with high reliability.
7. Strengthened chassis having great extension capacity and high reliability.
8. Intensified pressured lifter may be optimal with higher lifting, better operation and high reliability.
9. Carbon fiber composite material is used for driving cab and covers with tensile strength 8 times of steel and gravity 1/4 of steel.

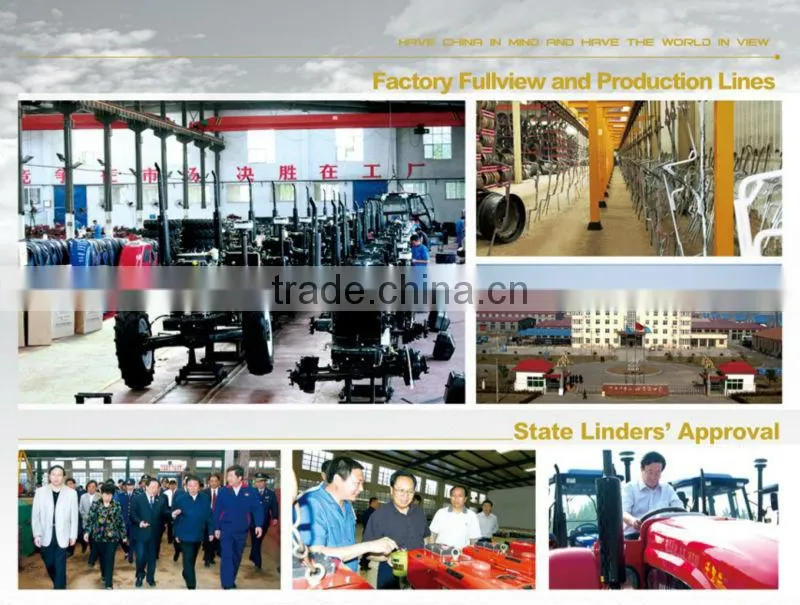

Our factory
Our honors
Our product line
Our exhibition

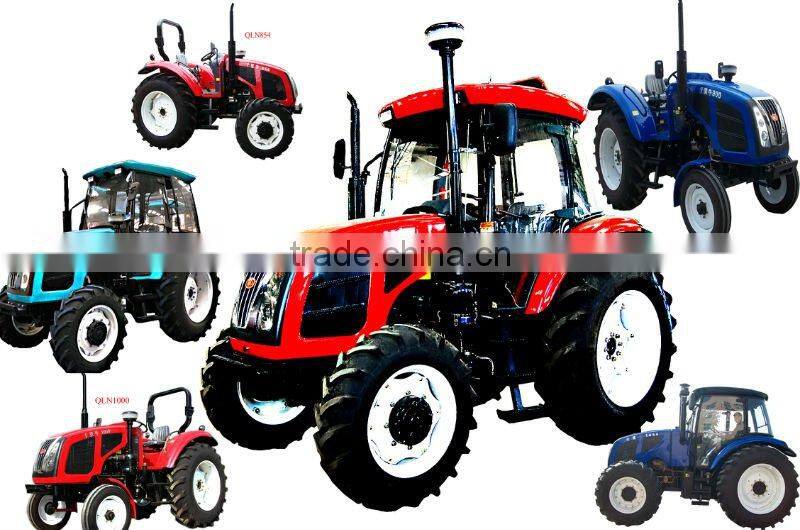

Our series of products(part and all)
part--80A series
All
Optional devices
We provide onestop service for you, and let your purchase
more quickly and more safety!!!
