Home > Products > 40 series (40-55HP) wheel tractor > 45hp 33KW 4WD curtis tractor cab

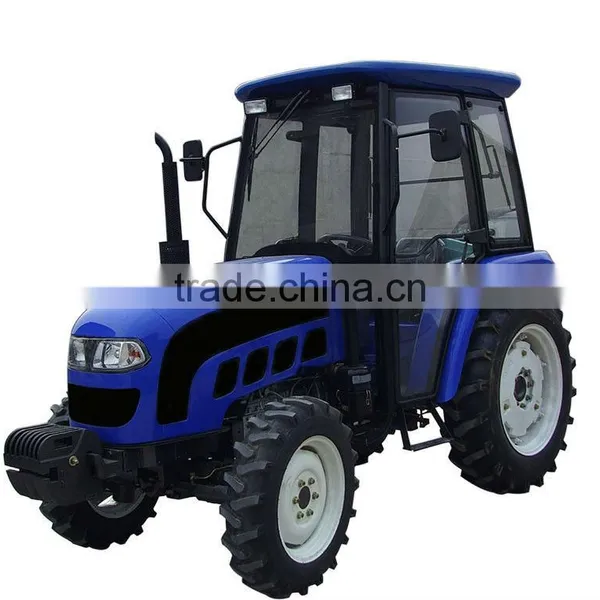

45hp 33KW 4WD curtis tractor cab
- 5000 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | Other, ISO |
Usage: | Garden Tractor | Drive Type: | Gear Drive | Power(W): | 33KW |
Certificate: | Other, ISO | Brand Name: | Qianli Niu | Model Number: | QLN-454 |
Place of Origin: | Henan, China | After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
45hp 33KW 4WD curtis tractor cab1.JIANGDONG Engine
2.dual-stage clutch
3.China Top Brand
4.Partial separated lifter
TECHNOLOGY CREATING THE FUTURE
Qianli is the most popular Chinese tractors for export .
Qianli two-wheel drive or four-wheel drive wheeled tractors are series tractors which feature large tractive force,
low fuel consumption,varied functions, and being easy to operate,wide applications and reliable operations.
45hp 33KW 4WD curtis tractor cab
Specification:
Basic configuration | |||
Model | QLN-450/454 | ||
Dimensions | Length×Width×Height(mm) | 3615×1750×2150 | |
Wheel Tread(mm) | Front Wheel(mm) | 1300 | |
Rear Wheel(mm) | 1300—1500 1300nomally | ||
Min.Ground Clearance(mm) | 325 | ||
Dry Mass | Complete tractor weight(KG) | 2200 | |
Engine | Trade Mark or Brand | JIANGDONG | |
Engine Mode | Vertical Water Cooled 4-stroke | ||
Directly Injection | |||
Number of Cylinder | 4 | ||
Cooling System Type | Water Cooled | ||
Rated Power(kw) | 33.1 | ||
Fuel Tank | Volume(L) | 43 | |
Transmission System | Clutch | Single,Dry,Dual Stage Type | |
Gear Box | F8+R4 | ||
Differential | Closed 4-planetary Gears | ||
Differential Lock | Mechanical Sliding Sleeve | ||
Braking System | Mechanical,dry type | ||
Running System | Tyre Model | F/R(2WD) | 6.0-16/12.4-28 |
F/R(4WD) | 8.3-20/12.4-28 | ||
Steering System | Mechanical for 2wd tractor and Hydraulic steering for 4wd tractor | ||
Working Device | Hydraulic System Type | Partial separated Lifter | |
Linkage Type | I Rear Mount 3-point Linkage | ||
PTO(Standard) | Φ38×8 or Φ35×6 or Φ34.67×21 | ||
PTO Speed(r/min) | 540/760 | ||
Drawbar Type | Fixed Drawbar | ||
Optional configuration | |||
Cab with Heater | Multiple Unit Valve | ROPS | Sunvisor |
Adjustable Comfort Seat | Paddy Tyre | ||
Bob-weight | Front BallAst | 8x10=80kg 10kg/pcs | |
Rear Ballast | 2x30=60kg 30kg/pcs |
45hp 33KW 4WD curtis tractor cab
Pictures:
45hp 33KW 4WD curtis tractor cab
Details:
1. Adopt JIANGDONG diesel engines, better reliability, more back coefficient for torsion.
2. Clutch with independent operation and double actions(only 4WD).
3. Gear-box shows F8+R4, namely 8 forwards, 4 returns, shift in mesh.
4. Driving force output device with postposition, peaceful and stable.
5. Transmission, stronger bear the weight of loading.
6. Adopt front-wheel turning with full liquid-pressure and independent oil way, turn agilely, reliably, power-saving.
7. Adopt partial separated lifter, independent oil supply, system performance reliable; multi-liquid output optional.
8. The final driving is planet-gear style, smaller volume, bigger decelerating ratio.
9. Installed adjustable chair with elasticity and shock absorption, comfortable driving.
10. The tractor is beautiful, taste, modern, fashion.
45hp 33KW 4WD curtis tractor cab
Optional configuration:
45hp 33KW 4WD curtis tractor cab
Match agricultural implements:
45hp 33KW 4WD curtis tractor cab
Certificates:
45hp 33KW 4WD curtis tractor cab
Factory:
We'll serve you good quality products with suprising prices.
Welcome to contact us!!!
45hp 33KW 4WD curtis tractor cab
