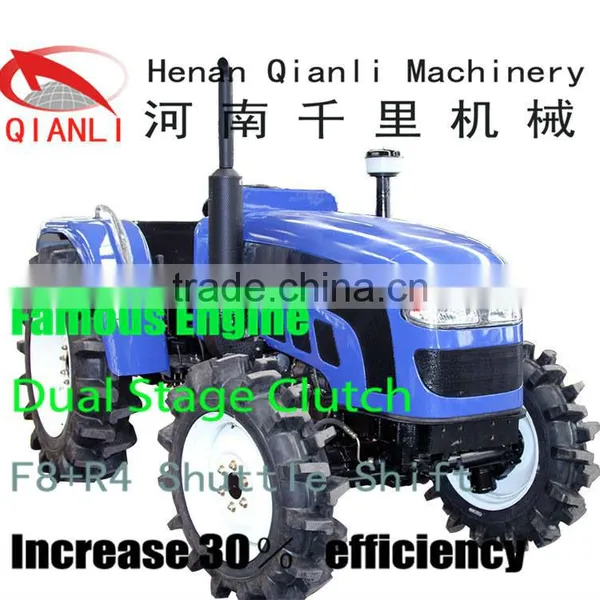

45hp 33KW 4WD Beautiful Wheel Tractor

Specifications

45hp 33KW 4WD beautiful wheel tractor
1.JIANGDONG Engine
2.dual-stage clutch
3.China Top Brand
4.Partial separated lifter

                                                          TECHNOLOGY CREATING THE FUTURE

Qianli is the most popular Chinese tractors for export .

Qianli two-wheel drive or four-wheel drive wheeled tractors are series tractors which feature large tractive force,

low fuel consumption,varied functions, and being easy to operate,wide applications and reliable operations.





45hp 33KW 4WD beautiful wheel tractor

Specification:

Basic configuration
Model	QLN-450/454
Dimensions	Length×Width×Height(mm)	3615×1750×2150
	Wheel Tread(mm)	Front Wheel(mm)	1300
		Rear Wheel(mm)	1300—1500 1300nomally
	Min.Ground Clearance(mm)	325
Dry Mass	Complete tractor weight(KG)	2200
Engine	Trade Mark or Brand	JIANGDONG
	Engine Mode	Vertical Water Cooled 4-stroke
		Directly Injection
	Number of Cylinder	4
	Cooling System Type	Water Cooled
	Rated Power(kw)	33.1
Fuel Tank	Volume(L)	43
Transmission System	Clutch	Single,Dry,Dual Stage Type
	Gear Box	F8+R4
	Differential	Closed 4-planetary Gears
	Differential Lock	Mechanical Sliding Sleeve
Braking System	Mechanical,dry type
Running System	Tyre Model	F/R(2WD)	6.0-16/12.4-28
		F/R(4WD)	8.3-20/12.4-28
Steering System	Mechanical for 2wd tractor and Hydraulic steering for 4wd tractor
Working Device	Hydraulic System Type	Partial separated Lifter
	Linkage Type	I Rear Mount 3-point Linkage
	PTO(Standard)	Φ38×8 or Φ35×6 or Φ34.67×21
	PTO Speed(r/min)	540/760
	Drawbar Type	Fixed Drawbar
Optional configuration
Cab with Heater	Multiple Unit Valve	ROPS	Sunvisor
Adjustable Comfort Seat	Paddy Tyre
Bob-weight	Front BallAst	8x10=80kg   10kg/pcs
	Rear Ballast	2x30=60kg   30kg/pcs















45hp 33KW 4WD beautiful wheel tractor

Pictures:









45hp 33KW 4WD beautiful wheel tractor

Details:



1. Adopt JIANGDONG diesel engines, better reliability, more back coefficient for torsion.



2. Clutch with independent operation and double actions(only 4WD).



3. Gear-box shows F8+R4, namely 8 forwards, 4 returns, shift in mesh.



4. Driving force output device with postposition, peaceful and stable.



5. Transmission, stronger bear the weight of loading.



6. Adopt front-wheel turning with full liquid-pressure and independent oil way, turn agilely, reliably, power-saving.



7. Adopt partial separated lifter, independent oil supply, system performance reliable; multi-liquid output optional.



8. The final driving is planet-gear style, smaller volume, bigger decelerating ratio.



9. Installed adjustable chair with elasticity and shock absorption, comfortable driving.



10. The tractor is beautiful, taste, modern, fashion.







45hp 33KW 4WD beautiful wheel tractor



Optional configuration:











45hp 33KW 4WD beautiful wheel tractor

Match  agricultural implements:









45hp 33KW 4WD beautiful wheel tractor

Certificates:









45hp 33KW 4WD beautiful wheel tractor
