QLN254 small tractor /25hp mini tractor

Specifications

mini tractor
1.Compact structure
2.Mini size, reduced turning radius
3.1 year gurantee service
4.Sincere service

QLN254 small tractor /25hp mini tractor

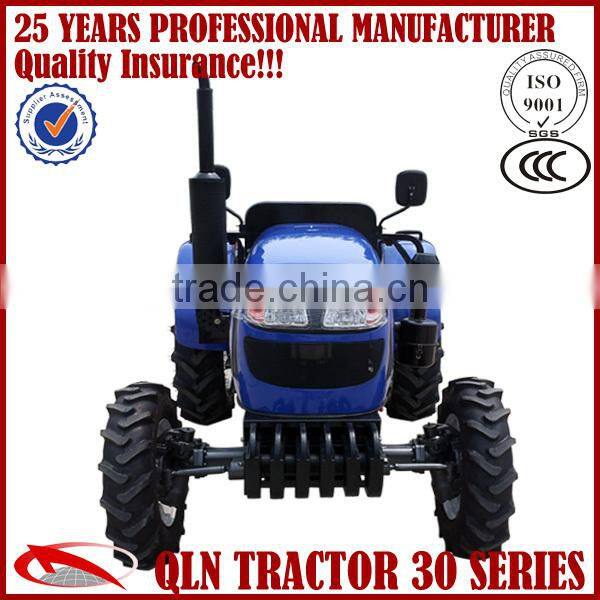

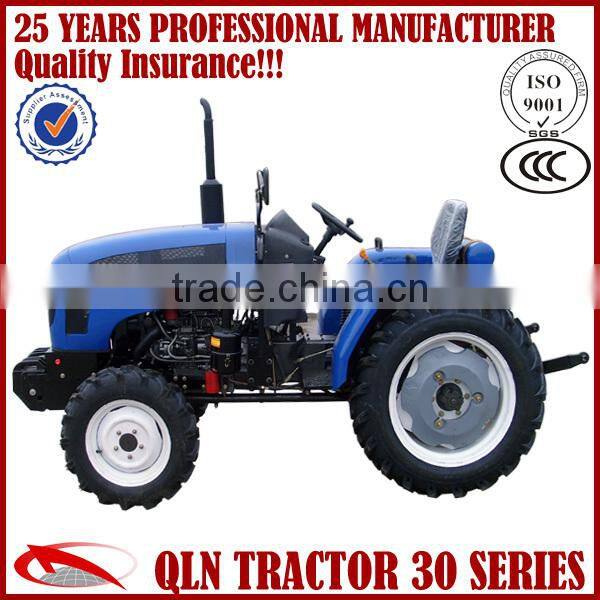

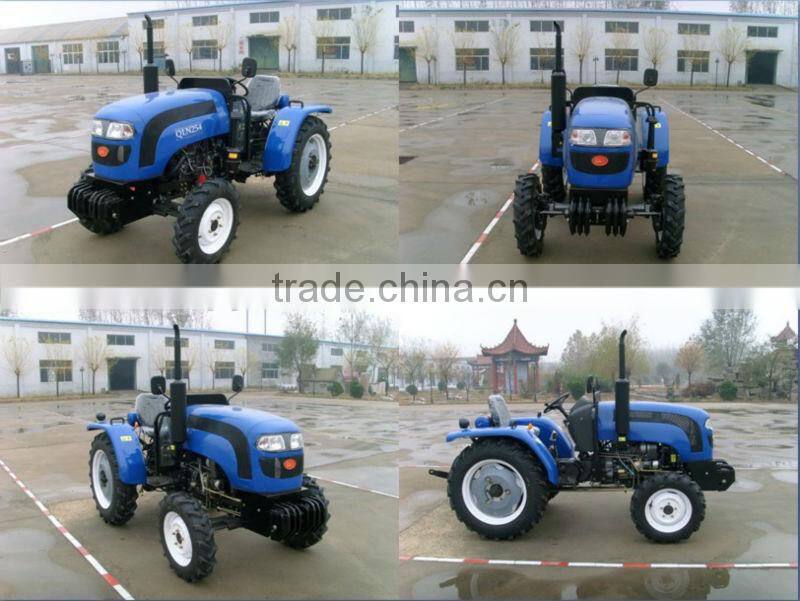

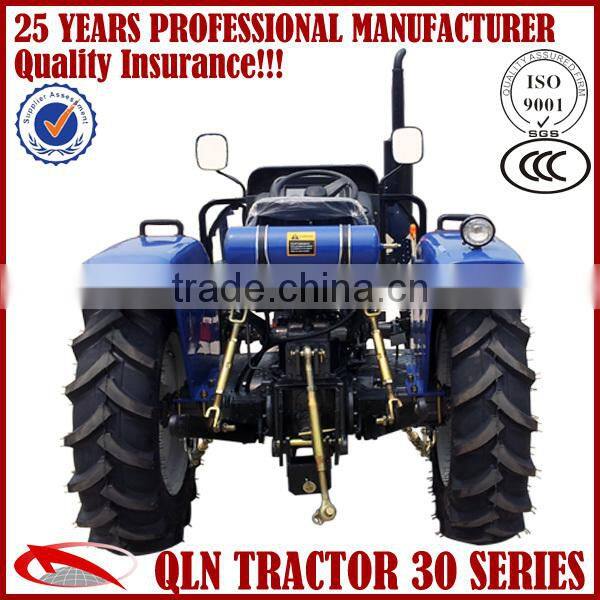

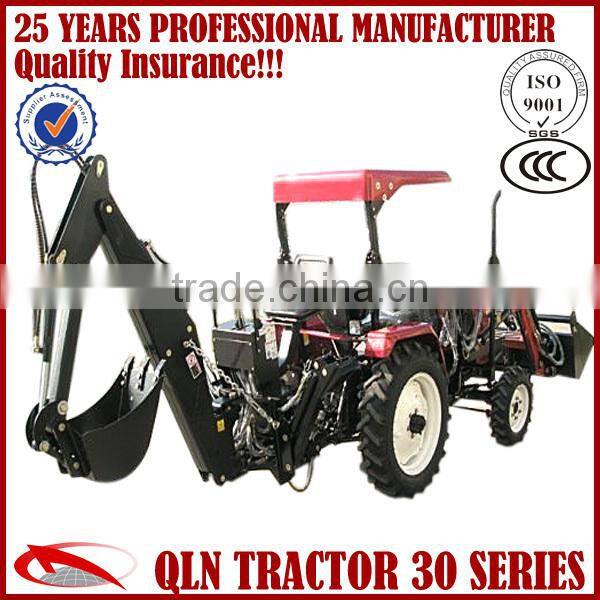

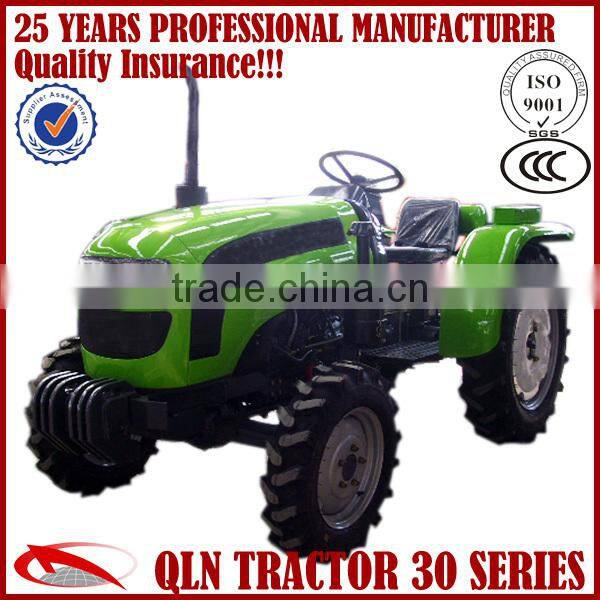

1.The pictures of mini tractors QLN254







2.25hp mini tractor parameters



Basic configuration of QLN254 mini tractor
Model	QLN-250/254
Dimensions	Length×Width×Height(mm)	3200×1500×1880
	Wheel Tread(mm)	Front Wheel(mm)	1065
		Rear Wheel(mm)	1200
	Min.Ground Clearance(mm)	265(4WD)     330(2WD)
Dry Mass	Complete tractor weight(KG)	1330(4WD)   1100(2WD)
Engine	Trade Mark or Brand	LAIDONG
	Engine Model	Vertical Water Cooled 3-stroke
		Directly Injection
	Number of Cylinder	3
	Cooling System Type	Water Cooled
	Rated Power(kw)	18.4KW
Fuel Tank	Volume(L)	41.3
Transmission System	Clutch	Single,Dry,Single Stage Type
	Gear Box	F8+R2
	Differential	Closed 4-planetary Gears
	Differential Lock	Mechanical Sliding Sleeve
Braking System	Mechanical,dry type
Running System	Tyre Model	F/R(2WD)	5.5—16/9.5—24
		F/R(4WD)	6.0—16/9.5—24
Steering System	Mechanical for 2wd tractor and Hydraulic steering for 4wd tractor
Working Device	Hydraulic System Type	Partial seperated lifter
	Linkage Type	I Rear Mount 3-point Linkage
	PTO(Standard)	Φ35×6
	PTO Speed(r/min)	720
	Drawbar Type	Fixed Drawbar
Optional configuration for QLN254 mini tractor
Cab with Heater	Cab with AC	ROPS	Sunvisor
Adjustable Comfort Seat	Multiple Unit Valve	Hydraulic steering for 2WD	Dual-stage clutch
Double PTO Speed(r/min): 540/720   540/1000 720/1000
Bob-weight	Frontballest	6×10=60kg 10kg/pcs
	Rearballast	2×25=50kg 25kg/pcs

3.Options of Chinese 25hp 4wd QLN254 mini tractor



1.Cab with heater,cab with AC



2.ROPS,Sunvisor



3.Multiple valve



4.Dual-stage clutch



5.Double PTO Speed 540/720   540/1000  720/1000



6.Bob weight

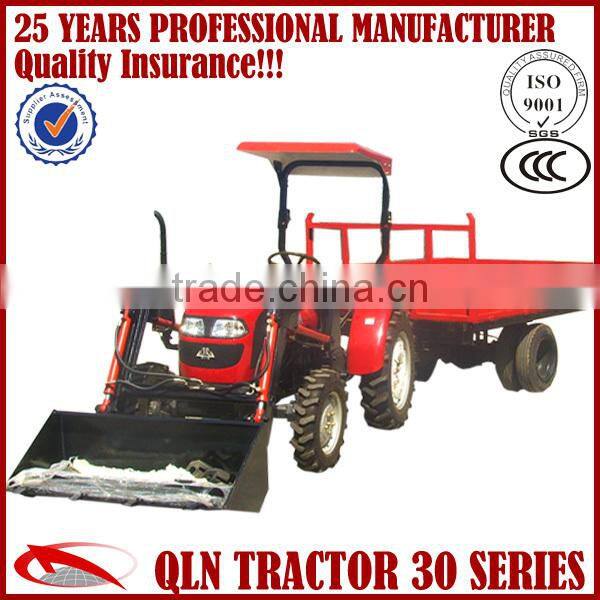

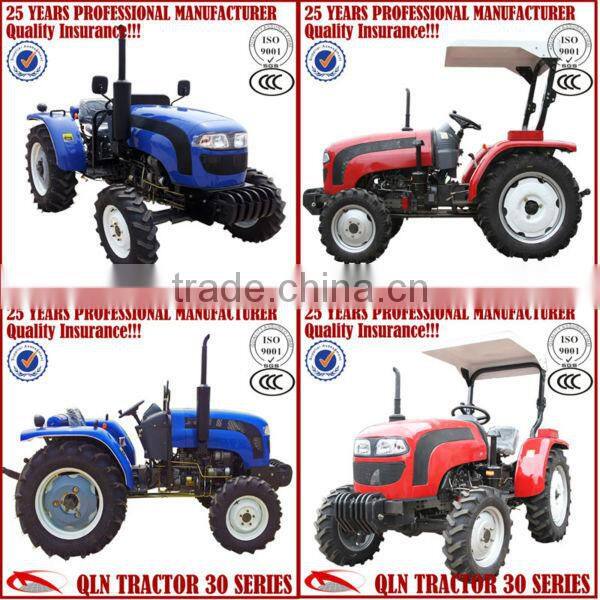

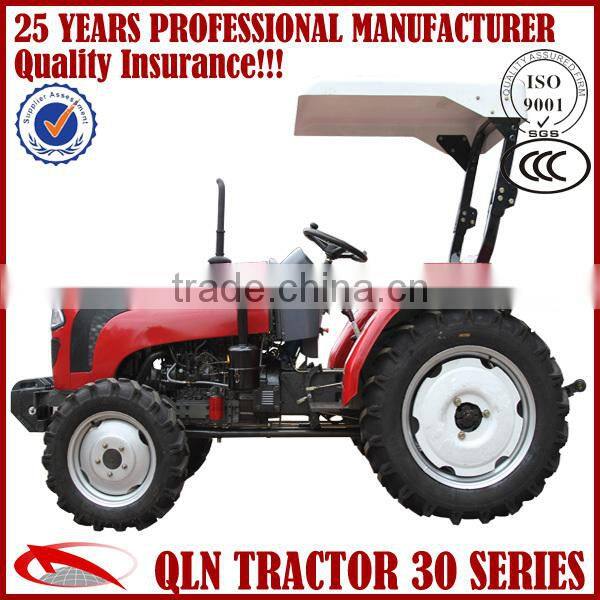

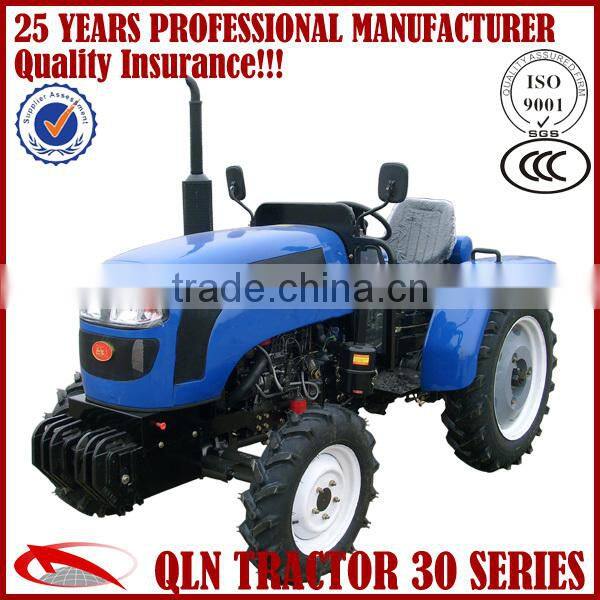

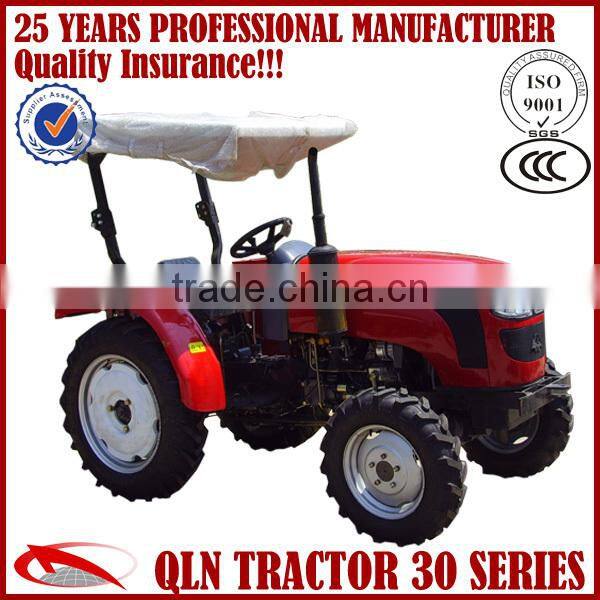

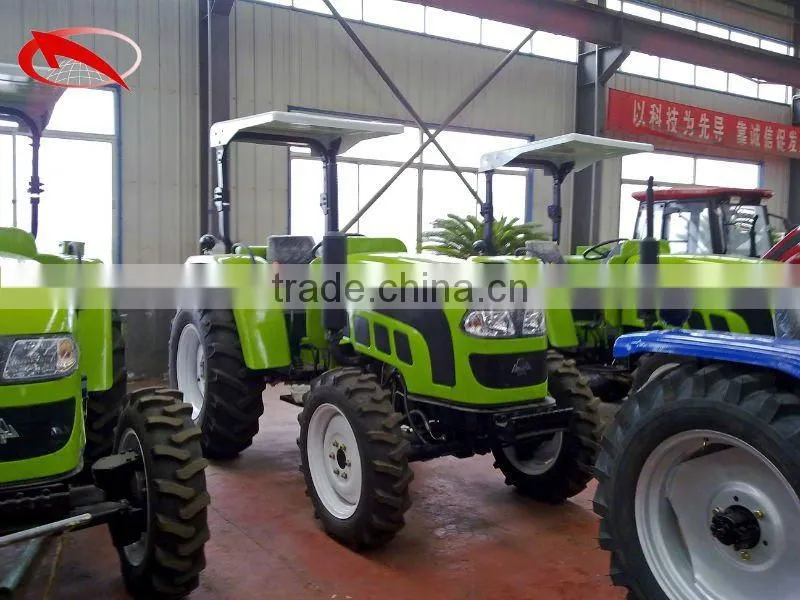

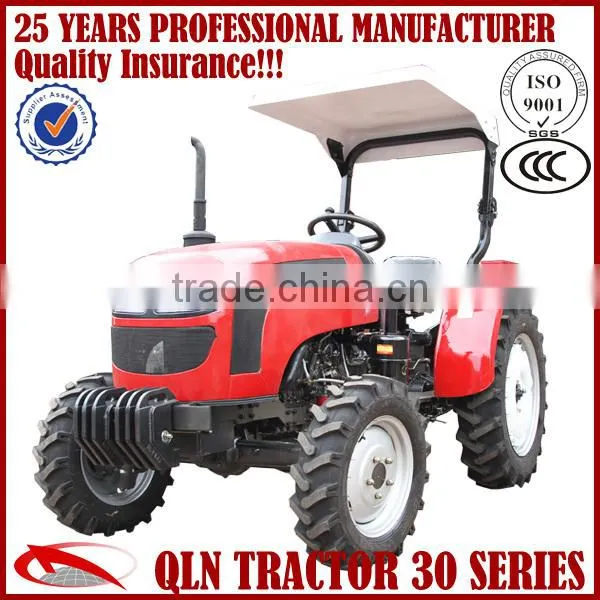

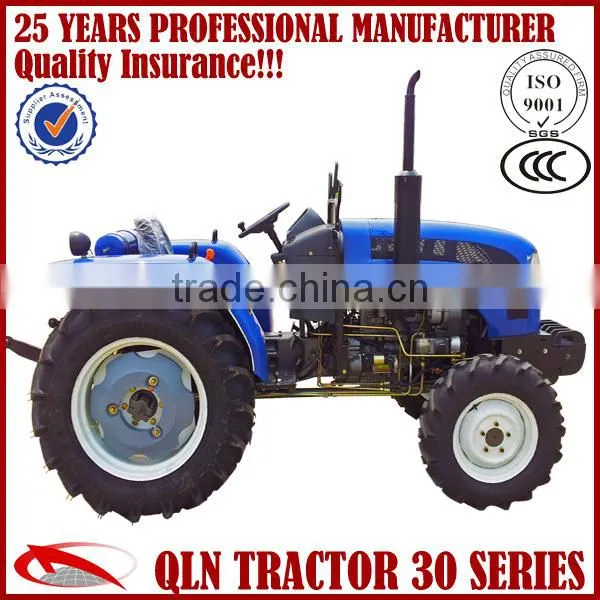

4.Other pictures of QLN254 mini tractor
