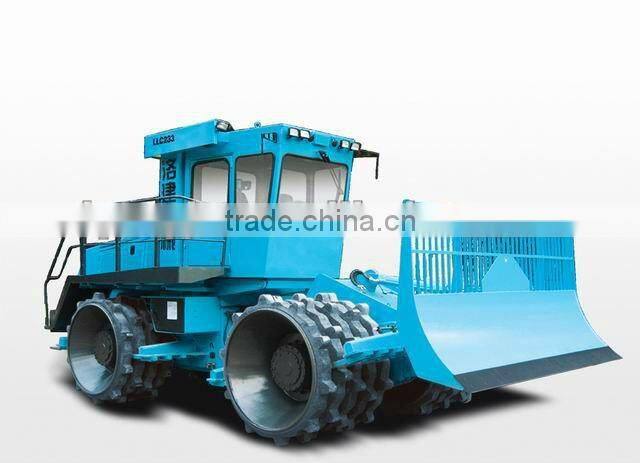

LLC223 Landfill Compactors in Low Price

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

YTO

Model Number:

LLC223

Luoyang Mingyang Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

According to the contract

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name YTO

Model Number LLC223

Place of Origin Henan, China

Power(W) 147kw

Weight 23000kg

Certification ce

Warranty 1 year

After-sales Service Provided Overseas service center available

LLC223 Landfill Compactors

MODEL		LLC223
Mass
Operating mass		kg		23000
Axle load (front)		kg		11000
Axle load (rear)		kg		12000
Dimensions
Overall length		mm		7355
Overall width at dozer blade		mm		3000
Overall width at front wheel		mm		2910
Overall width at rear wheel		mm		2705
Overall height		mm		3590
Wheelbase		mm		3350
Clearance		mm		435
Compacting wheel
Wheel width		mm		1040/835
Wheel diameter (front / rear, out teeth)		mm		1500/1500
Wheel diameter (front / rear, inner teeth)		mm		1200/1200
Teeth No. per wheel (front / rear)				50/40
Drive
Diesel engine manufacture				SHANGCHAI
Diesel engine model				D6114ZG
Diesel engine power		kW		147
Diesel engine rated speed		r/min		2000
Electrical system		V		24..
Number of driven wheels				4
Forward travel speed (1)		km/h		0-4.2
Forward travel speed (2)		km/h		0-15.7
Backward travel speed		km/h		0-5.8
Gradeability		%		100
Dozer blade
Dozer blade height		mm		1650
Dozer blade width		mm		3000
Dozer blade height over ground		mm		1000
Dozer blade depth below ground		mm		150
Brake
Serve brake	Air-over-oil, caliper disk brakes
Parking/Emergency brake	Mechanical, expanding hoofed brake
Steering
Steering method	Hydraulic central articulation with oscillation
Steering angle		±°	40
Oscillating angle		±°	15
Steering radius (outer front wheel)		mm	6085
Capacities
Fuel tank		L	450
Hydraulic oil		L	236
