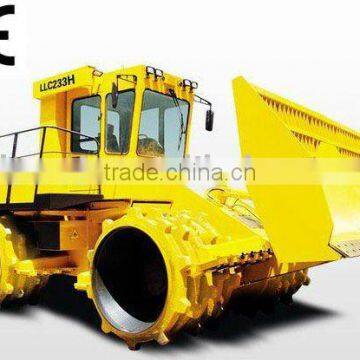

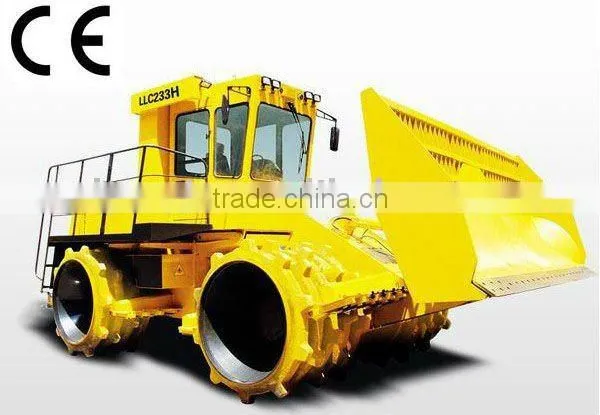

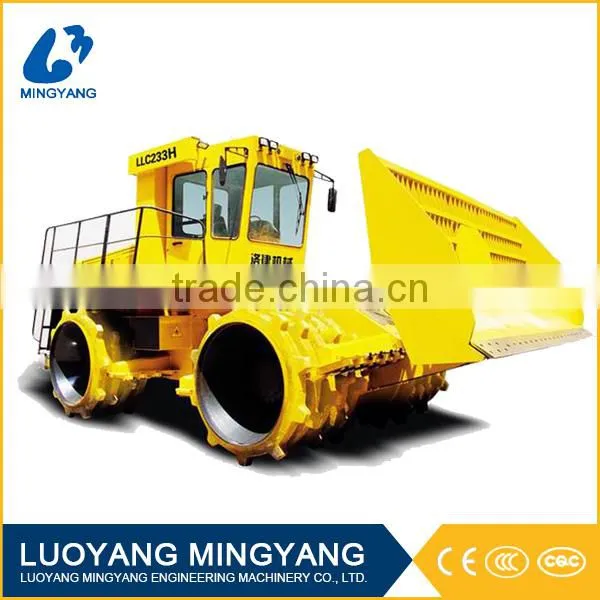

Refuse Compactor LLC233H
Main Features:
1 American CUMMINS Tier2 emission or WEICHAI Guo3 emission electronic-controlled diesel engines with reliable and powerful performance features environmental friend with low fuel consumption, low voice and low emission.The cooling air is sucked from top point of the entire machine,falling down maintenance cost with less radiator cleaning.
2 Hydrostatic travel drive system,four separate hydrostatic transmission circuits of four sets of variable hydraulic pumps and motors,solving traction problem while clipping or hanging of the driving wheels.
3 Hydraulic steering and blade lifting system is driven by a piston pump with load sensing system, provides smooth and light control,high efficiency and energy economy.
4 Service brake of the hydrostatic brake on the four wheels,parking brake and emerging brake of the hydraulic-applied spring-released brakes integrated in four wheel gear reducers will guarantee most reliable safety.
TECHNICAL SPECIFICATIONS:
MODEL |
LLC233H |
||||
Mass | |||||
Operating mass |
kg |
33000 |
|||
Axle load (front) |
kg |
16500 |
|||
Axle load (rear) |
kg |
16500 |
|||
Dimensions | |||||
Overall length |
mm |
8250 |
|||
Overall width at dozer blade |
mm |
4000 |
|||
Overall height |
mm |
3750 |
|||
Wheelbase |
mm |
3500 |
|||
Clearance |
mm |
610 |
|||
Compacting wheel | |||||
Wheel width (front / rear) |
mm |
1350/1130 |
|||
Wheel diameter (front / rear, out teeth) |
mm |
1620/1620 |
|||
Wheel diameter (front / rear, inner teeth) |
mm |
1200/1200 |
|||
Teeth No. per wheel (front / rear) |
|
60/50 |
|||
Drive | |||||
Diesel engine manufacture |
|
Cummins/Weichai |
|||
Diesel engine model |
|
QSM11/WP12N |
|||
Diesel engine power |
kW |
250/276 |
|||
Diesel engine rated speed |
r/min |
2100/1900 |
|||
Electrical system |
V |
24 |
|||
Number of driven wheels |
|
4 |
|||
travel speed (1) |
km/h |
0-4 |
|||
travel speed (2) |
km/h |
0-8 |
|||
Gradeability |
% |
100 |
|||
Dozer blade | |||||
Dozer blade height |
mm |
1980 |
|||
Dozer blade width |
mm |
4000 |
|||
Dozer blade height over ground |
mm |
1200 |
|||
Dozer blade depth below ground |
mm |
200 |
|||
Brake | |||||
Serve brake |
Air-over-oil, caliper disk brakes |
||||
Parking/Emergency brake |
Mechanical, expanding hoofed brake |
||||
Steering | |||||
Steering method |
Hydraulic central articulation with oscillation |
||||
Steering angle |
±° |
40 |
|||
Oscillating angle |
±° |
15 |
|||
Steering radius (outer front wheel) |
mm |
6800 |
|||
Capacities |
|
|
|||
Fuel tank |
L |
500 |
|||
Hydraulic oil |
L |
300 |
|||
