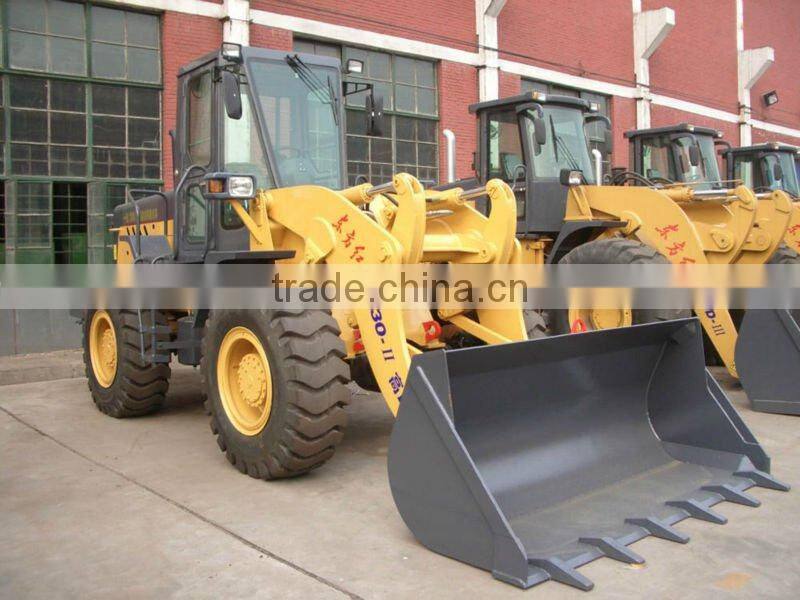

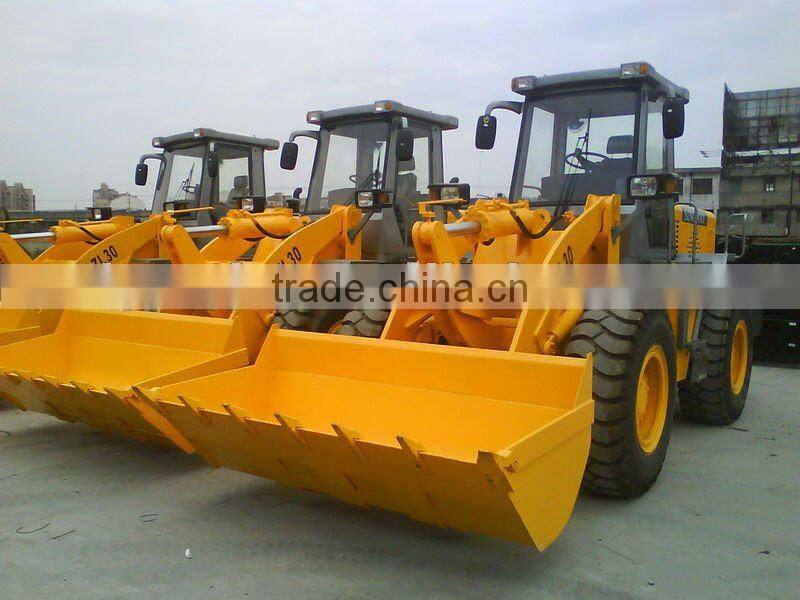

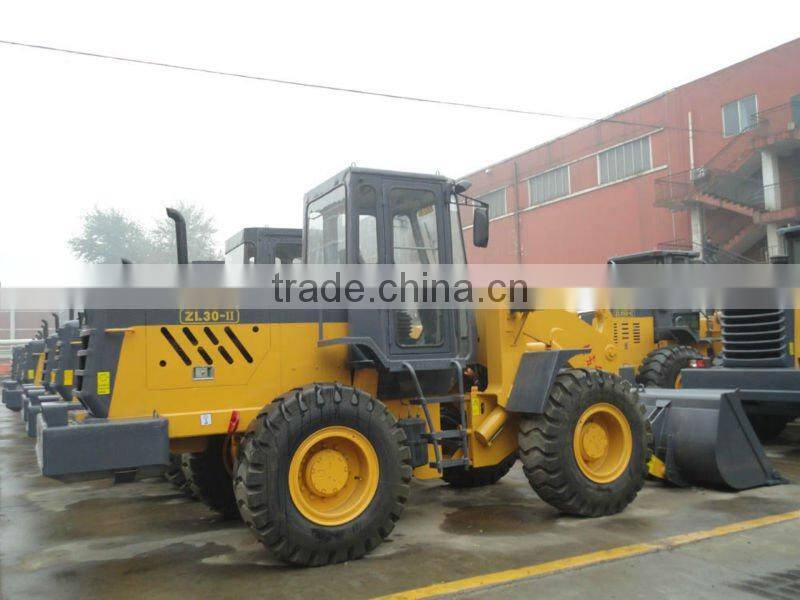

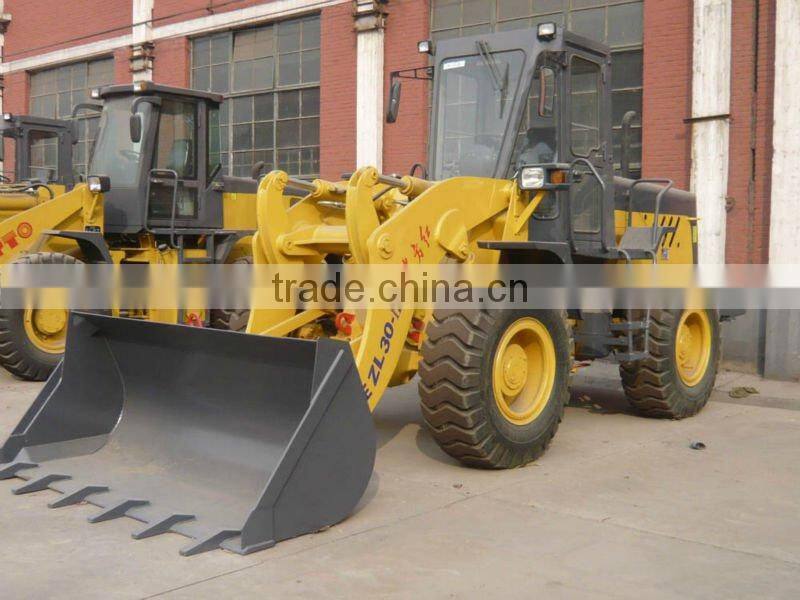

Best Seller ZL30-II Wheel Loader in Construction and Real Estates
MAIN FEATURES:
Dongfanghong LR6108G6FIA or YC6108g diesel engine is applied as it features bigger power reserve ,stronger power , bigger torque reserve coefficient ,and fuel features economical and environmentally protected.
Torque-varied device features high efficiency and big torque-varied coefficient ; as it equips with higher reliable gear-box and drive axis , it comes with bigger traction and longer life.
As rear car rack is applied to single-plate T-shaped girder , so it features more stability , higher reliability , bigger interior space and easier maintenance.
As fully hydraulic turning system equips with equidistant hinged car rack , frontal and rear wheel have the same track , eliminating hermit power loss while turning , and it features easier and more flexible operation , and has more stable performance.
Double-pipe tie rod construction features bigger up-growth force , hither unloading position and bigger unloading distance . More flexible turning at the corner road and more time saving and higher efficient operation .
Z-type connection rod , high digging force , and high shovel efficiency .
Luxurious car is sound insulated , heat insulated , broad visual field ; seat chair specialized for engineering machinery features superior damping performance and comfort while driving and riding .
Expand torque-varied oil heat radiator and water one , make it high efficiently radiated , so as to suit for heavy load and high temperature operation environment .
Integral operation platform , streamline design , and humanized operation layout equipped with new type of electronic instrument , capable of quickly monitoring the working condition of the whole unit .
Standard heating and ventilation equipment , air conditioner optional . All specialized operation devices should be selected out and configured with.
TECHNICAL SPECIFICATIONS:
Model |
|
ZL30-II |
Total weight |
kg |
10200 |
Bucket capacity |
m3 |
1.7 |
Rated load |
kg |
3000 |
Movable arm lifting time |
S |
≤5.5 |
Three item time |
S |
≤10.5 |
Max digging force |
kN |
92 |
Min turning radius |
mm |
5175 |
Wheelbase |
mm |
2750 |
Max steering angle |
o |
36 |
Minimum ground clearance |
mm |
395 |
Forward I-IV gears |
km/h |
7.7~40 |
Reverse I-II gears |
km/h |
9.5~33 |
Max slope angle |
o |
28 |
Damping height |
mm |
3160 |
Damping reach |
mm |
1052 |
Overall length |
mm |
6950 |
Overall width |
mm |
2420 |
Overall height |
mm |
3300 |
Engine model |
|
LR6B3-22 |
Engine rated power |
kW |
92 |
Fuel tank capacity |
L |
140 |
Hydraulic oil tank capacity |
L |
160 |
