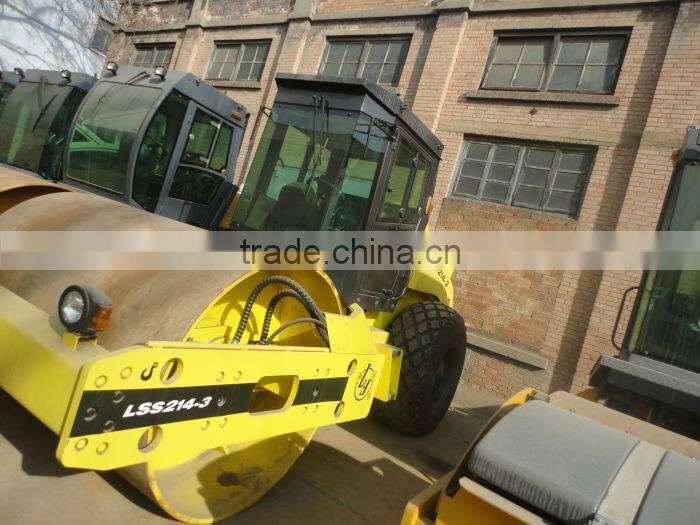

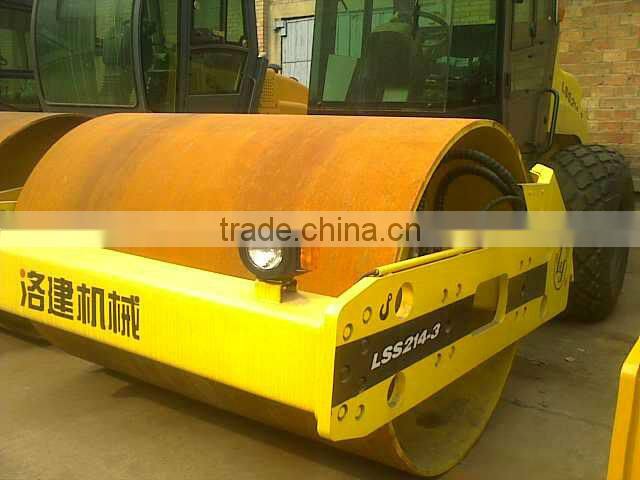

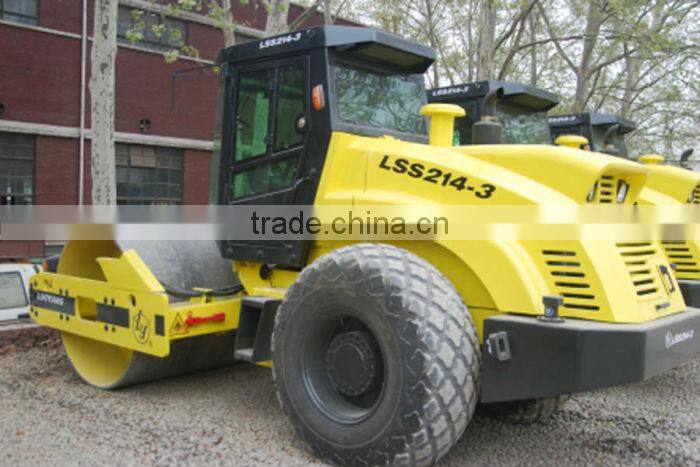

LSS214-3 Single Drum Vibrating Road Compactor
APPLICATIONS:
Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.
FEATURES:
1. Powerful water cooled turbocharged diesel engine, suited for compaction work even in the areas of plateau.
2. Heavy-duty gearbox and driving axle assure reliability and smoothness of travel transmissions.
3. Proper frequency and dual amplitude setting of vibration for various soils and variable course depth.
4. Unique stream-line shape appearance, engine hood turned over 80 degree for convenience of engine maintenance.
5. Comfortable and spacious operator’s cab with enhanced service space. Accessible control elements reduce down operator tiredness.
Technical parameters:
MODEL |
|
LSS214-3 |
Operating mass |
kg |
14000 |
Static linear load |
N/cm |
325 |
Vibration amplitude |
mm |
1.8/0.9 |
Vibration frequency |
Hz |
30 |
Centrifugal force |
kN |
290/160 |
Travel speed |
km/h |
11 |
Grade ability |
% |
35 |
Turning radius |
mm |
7000 |
Drum width |
mm |
2130 |
Drum diameter |
mm |
1500 |
Wheelbase |
mm |
3080 |
Ground clearance |
mm |
410 |
Diesel engine model |
SC5D130 |
|
Diesel engine power |
kW |
95 |
Overall dimensions |
mm |
5800×2290×2970 |
