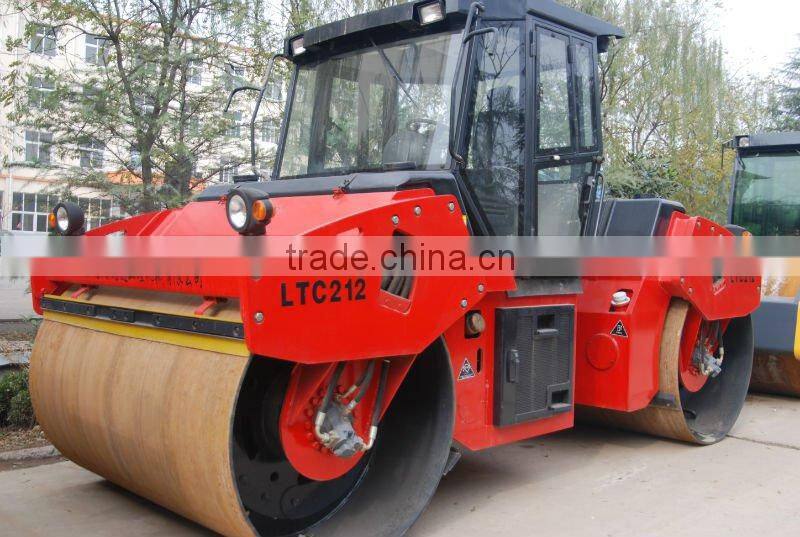

LTC212 12t Hydraulic Road Roller Compactors
Main features:
Full hydraulic two wheel drive and Vibration.
Dual frequencies and dual Vibration amplitudes.
Hydrostatic center articulated steering, patented crab mechanism.
The driver's cabin is spacious and comfortable,equipped with rotary working seat,making the operation more flexible and convenient.
The driver's cabin can be turned on one side as a whole, to facilitate maintenance.
Fork-type frame,good hold-down property.
Main technical parameters:
MODEL |
|
LTC212 |
Operating mass |
kg |
12000 |
Static linear load |
N/cm |
286 |
From of frame |
|
Fork-type |
Crabwise movement distance |
mm |
±170 |
Vibration amplitude |
mm |
|
High amplitude |
|
0.8 |
Low amplitude |
|
0.4 |
Vibration frequency |
Hz |
|
High amplitude |
|
40 |
Low amplitude |
|
46 |
Centrifugal force |
KN |
|
High amplitude |
|
160x2 |
Low amplitude |
|
90x2 |
Travel speed |
Km/h |
0-12 |
Turning speed |
mm |
7000 |
Grade ability |
% |
40 |
Steering angle |
° |
±35 |
Drum diameter |
mm |
1350 |
Drum width |
mm |
2100 |
Wheelbase |
mm |
3717 |
Overall length |
|
5062 |
Overall width |
|
2250 |
Overall height |
|
3000 |
Diesel model |
|
Cummins 6BT5.9 |
Diesel power |
KW |
110 |
Diesel speed |
r/min |
2300 |
