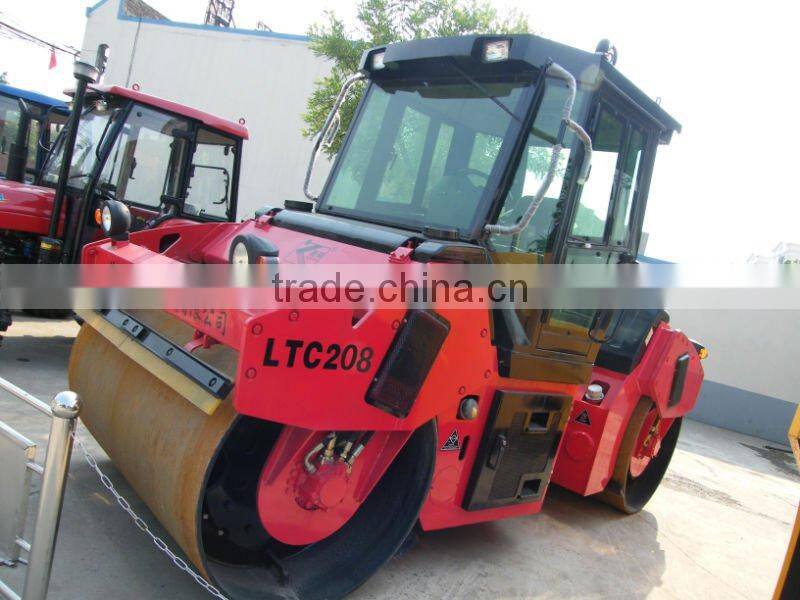

LTC208 Double Drum Vibratory Road Compactor
LTC208 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad.The machine is a double drum tandem vibratory roller.It is primarily used for the compaction of road asphalt concrete,sand g ravel mixtures and RCC material,being a universal compaction equipment for highway,municipal road,park area and industry g round etc.
Main features:
1.Full hydraulic two wheel drive and Vibration.
2.Dual frequencies and dual Vibration amplitudes.
3.Hydrostatic center articulated steering, patented crab mechanism.
4.The driver’s cabin is spacious and comfortable,equipped with rotary working seat,making the operation more flexible and convenient.
5.The driver’s cabin can be turned on one side as a whole, to facilitate maintenance.
6.Fork-type frame,good hold-down property.
Main technical parameters:
MODEL |
|
LTC208 |
Operating mass |
kg |
8000 |
Static linear load |
N/cm |
231 |
From of frame |
|
Fork-type |
Crabwise movement distance |
mm |
±170 |
Vibration amplitude |
mm |
|
High amplitude |
|
0.67 |
Low amplitude |
|
0.34 |
Vibration frequency |
Hz |
|
High amplitude |
|
45 |
Low amplitude |
|
50 |
Centrifugal force |
KN |
|
High amplitude |
|
90x2 |
Low amplitude |
|
69x2 |
Travel speed |
Km/h |
0-11.1 |
Turning speed |
mm |
6000 |
Grade ability |
% |
40 |
Steering angle |
° |
±35 |
Drum diameter |
mm |
1150 |
Drum width |
mm |
1730 |
Wheelbase |
mm |
3217 |
Overall length |
|
4558 |
Overall width |
|
1840 |
Overall height |
|
2674 |
Diesel model |
|
4BT3.9 |
Diesel power |
KW |
75 |
Diesel speed |
r/min |
2400 |
Our products will be continuously improved with the progressing of the technique. So please indicate the difference between the listed parameters in the sample shit and structure features and the objects when ordering.
