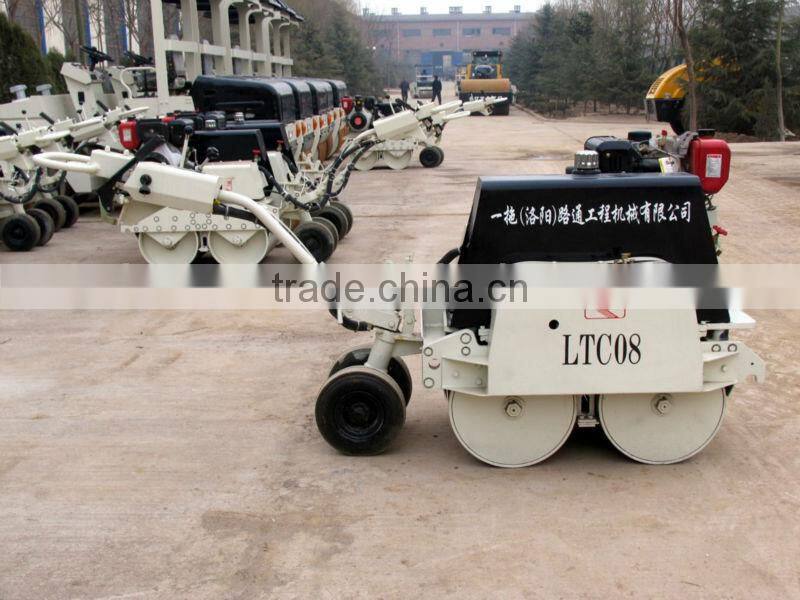

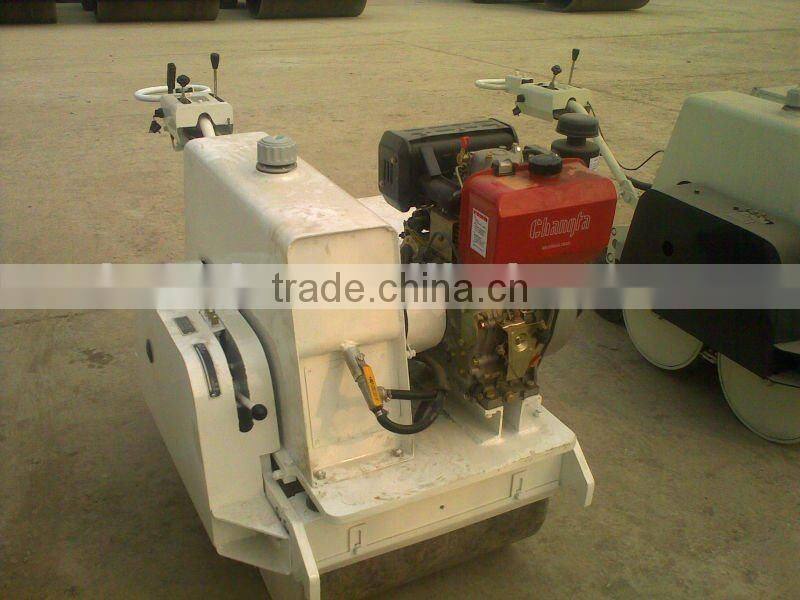

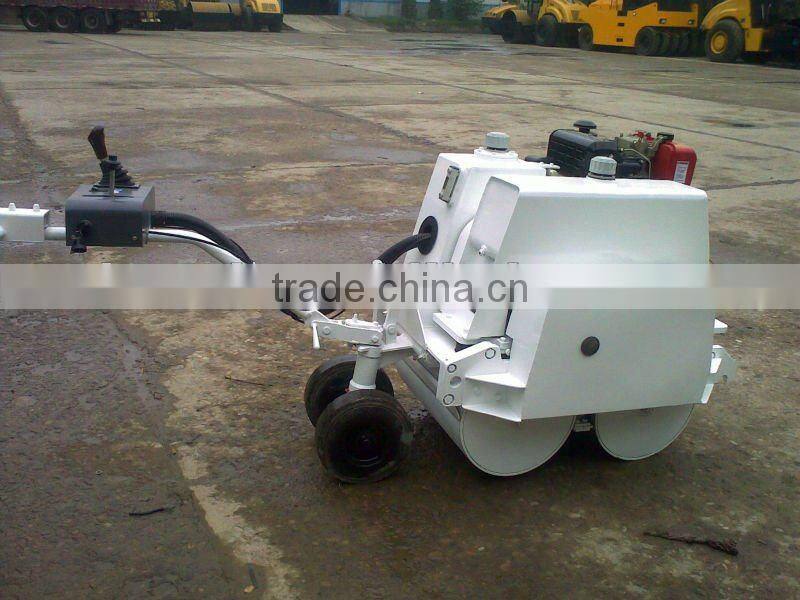

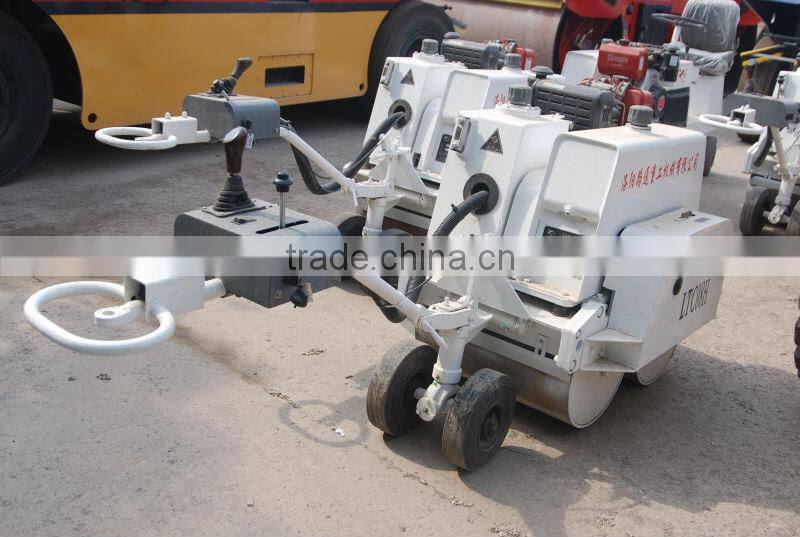

Compact and Utility LTC08H Pedestrian Road Roller

Compact and Utility LTC08H Pedestrian Road Roller photo-1
US$ 3,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Double Drum Roller
Static Linear Pressure:
62/67 N/cm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Tianjin/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Double Drum Roller
Static Linear Pressure 62/67 N/cm
Travel Speed 4 Km/h
Grade Ability 40 %
Place of Origin Henan, China
Brand Name LuYang
Model Number LTC08H
Power(W) 5.68 Kw
Dimension(L*W*H) 1950*880*1290
Weight 800 Kgs
Certification CE & ISO 9001 Certification
After-sales Service Provided Overseas service center available

Compact and Utility LTC08H Pedestrian Road Roller





Compact and Utility LTC08H Pedestrian Road Roller

Compact and Utility LTC08H Pedestrian Road Roller

Compact and Utility LTC08H Pedestrian Road Roller

Compact and Utility LTC08H Pedestrian Road Roller





LTC08H Hydraulic walking behind vibratory road roller can be used for municipal road construction, highway maintenance, and rolling work at narrow road surface, such as foundation of groove wider than 0.8m, building construction, backfilling for pipeline and stadium ground.

Main features:

1. The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;

2. All wheel drive, strong climbing ability;

3. Using CF186F vertical direct-spray air-cooled engine, with both electrical and manual startup devices;

4. Designed with guide wheel and joystick, it is labor saving and easy to control;

5. Hydraulic travel, adopt imported pump & starting motor, CVT.

Main technical parameters:

Model

Unit

LTC08H

Operating mass

kg

770

Static linear load

Front wheel

N/cm

62

Rear wheel

N/cm

62

Vibration amplitude

mm

0.25

Vibration frequency

Hz

48

Centrifugal force

KN

12

Travel speed

Km/h

0-4

Grade ability

%

40

Turning radius

mm

2700

Turning angle

°

+30

Vibration drum diameter

mm

400

Drum width

mm

600

Wheelbase

mm

470

Overall dimension (LXWXH)

mm

2400X880X1100

Diesel model



CF186F

Diesel power

KW

5.68
