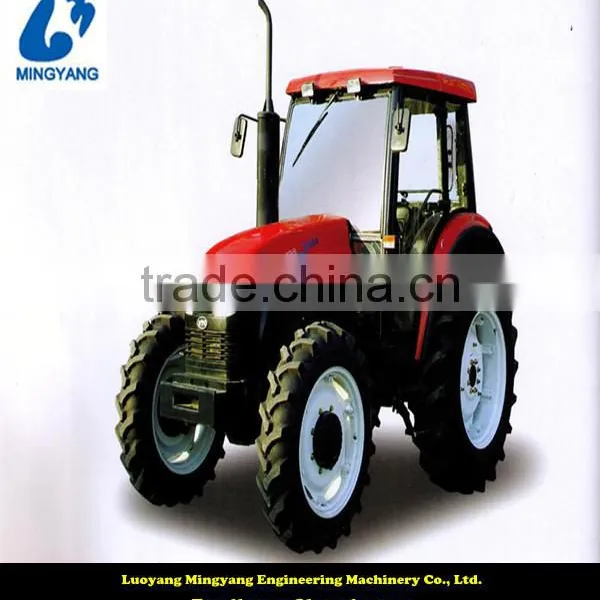

X804 Wheel Tractor in low price

Model

YTO-X804

Tractor

Type

4×4

Overall dimensions(L×W×H)(mm)

4350×2170×2740

Wheelbase(mm)

2314

Min ground clearance(mm)

430

Min. operating mass(with safety stand)(kg)

3675

Tyre spec,front/rear

11.2-28/13.6-38

Wheel tread,front/rear

1569~1960/ 1500~2100

Steering

Full hydraulic

Brake

Oil immersed, disk type

Diesel engine

Model

LR4B5-23

Type

Four cylinder, vertical, water cooled, four stroke, direct injection combustion

Displacement(L)

4.95

Rated.power/speed (kw)(r/min)

58.8/2300

Max .torque(N.M)speed(r/min)

270/1500-1700

Bore ×stroke(mm)

108×125

Transmission

Gear shift,forward/backward

12/4

Speed range(km/h)forward/backward

1.63~26.82/

4.230~12.69

PTO power(kw)

50

PTO rotation speed(r/min)

540/720 or 540/1000

Clutch

11-inch,dry,double action

Implement

Three-point linkage category

Three-point linkage category II

Tilling depth control mode

Combined draft,position control and floating control

Lifting force(kn)

16

Options

OECD.anti-turnover bar

OECD certified anti-turnover bar or anti-turnover bar with awning

Transmission with shuttle-type gear

12+12

Transmission with creeper gear

24+8

Hydraulic output

2 or 3 group
