10 Ton Crane With 5 Section Telescopic Boom Amd Truck

Name: 10 Ton Crane With 5 Section Telescopic Boom Amd Truck
Brand: WOLWA
SKU: 140742074
Availability: InStock

US$ 30,000 - 35,000 MOQ: 1 Set

Key Specifications

Condition:

New

Rated Loading Capacity:

10 ton

Max. Lifting Load:

10ton

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao or tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 10 ton

Max. Lifting Load 10ton

Max. Lifting Height 26meter

Span 4.2/4.95m

Place of Origin Shandong, China

Brand Name WOLWA

Model Number GNQY-C10

Certification iso

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

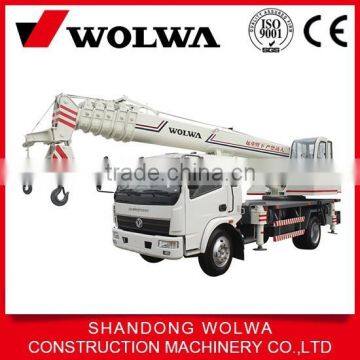

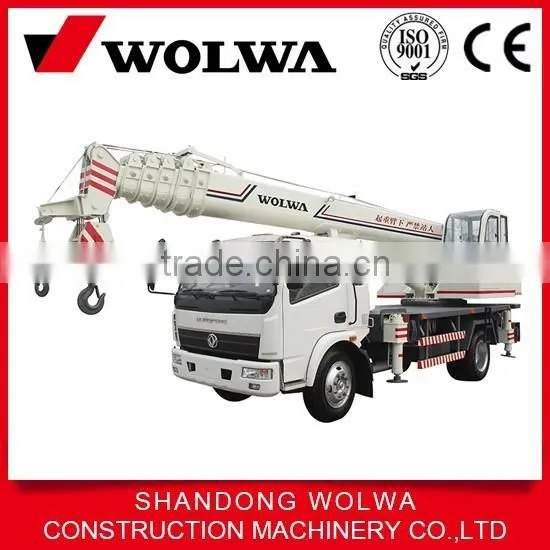

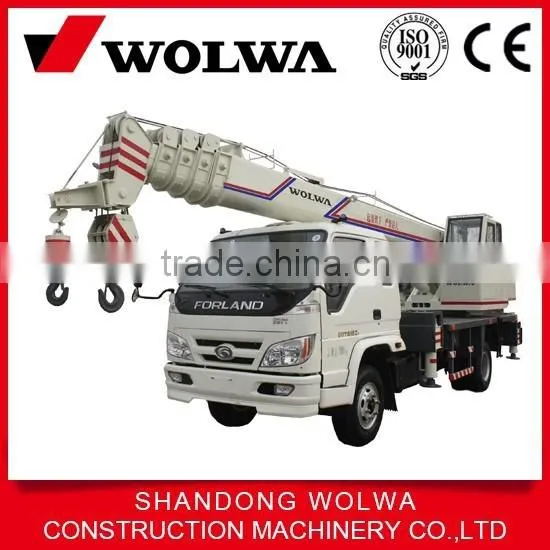

PRODUCTS PHOTO:

1.drect manufacturer factory.

2.lifting weight 10 ton,truck chassis t-king or foton,dongfeng truck.

3.5 section,lifting height 26 meter.

4.white color or yellow color for choose.

SPECIFICATION:

Specification				unit
Max. rated total lifting capacity				T	10
Min. rated working radius				M	3
Turning radius at turntable tail				mm	2500
Max. lifting torque		Base boom		kN·m	300
Land leg		Longitudinal outrigger span		m	4.20
		Lateral outrigger span		m	4.92
Lifting height		Base boom		m	8.5
		The extension boom		m	25
Boom length		Base boom		m	6.5
		The extension boom		m	27.10
Boom lifting time				s	43
Boom full extension time				s	52
Max. swing speed				r/min	2
Lifting mechanism	Max. speed of main winch (single rope)		No load	m/min	92
	Max. speed of aux. winch (single rope)		No load	m/min	76
