12 Ton Lorry Mounted Crane With Lifting Height 30 Meter

Name: 12 Ton Lorry Mounted Crane With Lifting Height 30 Meter
Brand: WOLWA
SKU: 140741976
Availability: InStock

US$ 30,000 - 35,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Engineering

Rated Loading Capacity:

12 ton

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao or tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Engineering

Rated Loading Capacity 12 ton

Max. Lifting Load 12ton

Max. Lifting Height 32meter

Span 5.1/4.95m

Place of Origin Shandong, China

Brand Name WOLWA

Model Number GNQY-C12

Certification iso

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

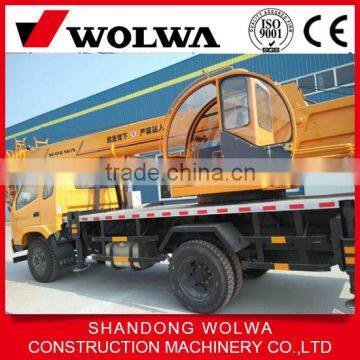

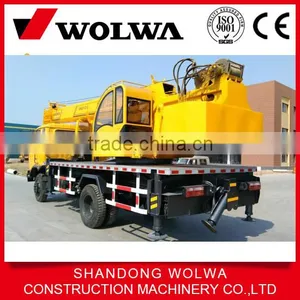

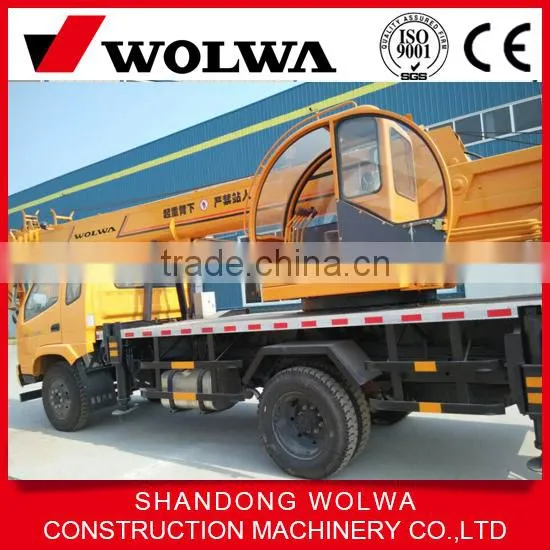

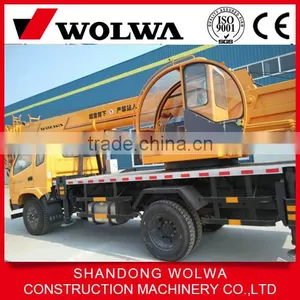

PRODUCTS PHOTO:

SPECIFICATION:

	Specification	units
Dimension	Overall length	mm	9730
	Overall width	mm	2160
	Overall height	mm	3150
	Wheel shaft diameter	mm	3900
WEIGHT	Weight in travel	kg	9150
POWER	Engine model	WEICHAI	4102
	Rated Power	kw/	95
	Rated torque	N.m/(r/min)	320/1800
TRAVEL	Max travel speed	km/h	75
	Min torsion diameter	m	13.8
	Min. ground clearance	mm	320
	Front Angle	°	23°
	End Angle	°	15°
	Max Grade ability	%	24
	Max. rated total lifting capacity	T	10
	Min. rated working radius	M	3
Land leg	Longitudinal outrigger span	M	4.20
Land leg	Lateral outrigger span	M	4.92
Lifting height	Base boom	M	8.5
Lifting height	The extension boom	M	25
	Total height	m	29
Boom length	Base boom	M	6.5
	Sections		5 sections
	The extension boom	M	27.10
