Product Introduction
Specifications
1)Type:4*2
2)Tractor Model: GN121H
3)Wheel base(mm):: 680-685
Specification
Item |
unit |
value |
|
whole machine |
|
/ |
|
type |
/ |
GN121H |
|
model |
/ |
drive and pull |
|
dimension |
mm |
2520×980×1250 |
|
wheelbase |
mm |
680-785 |
|
min ground clearance |
mm |
210 |
|
min use weight |
kg |
336 |
|
bob-weight |
kg |
/ |
|
gear number |
/ |
6/2 |
|
Engine and clutch coupling mode |
/ |
triangle type |
|
start way |
/ |
manual |
|
engine |
brand |
/ |
wolwa |
model |
/ |
single cylinder,horizontal type,water cooling,four travel,votex shedding |
|
type |
/ |
GN196 |
|
company name |
/ |
wolwa |
|
cylinder number |
/ |
1 |
|
cylinder diameter×travel |
mm |
96×100 |
|
discharge capacity |
L |
0.723 |
|
compression ratio |
/ |
17:1 |
|
calibration power |
kW |
9.00 |
|
calibration rotate speed |
r/min |
2200 |
|
fuel injection pump model ,type |
/ |
monomer rack pump /BF1AK |
|
fuel spray nozzle model type |
/ |
long porous type /PF68S |
|
air filter type model |
/ |
two section oil bath type |
|
cooling system model |
/ |
evaporation water cooling |
|
Hand starting anti-reverse device model type |
|
handle start equipment 185-S0000 |
|
headlight |
type |
/ |
SJ18418 |
fuel tank |
type |
/ |
195A-11100 |
work pressure |
kPa |
100-120 |
|
volume |
L |
11 |
|

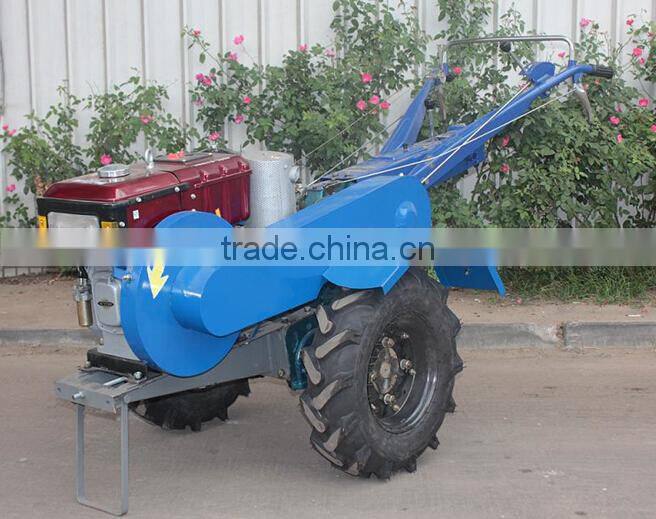

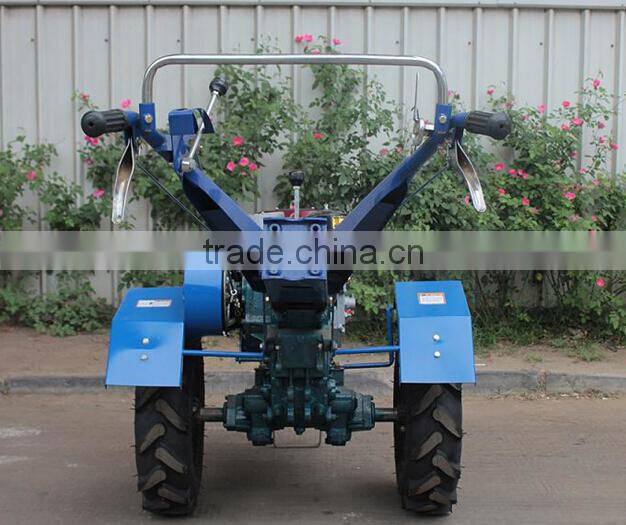

Figure Photos
Company Information
Shandong Wolwa Construction Machinery Co., Ltd is an advanced technology industry integrating research and development, production and sales. For ten years, Wolwa Group, with the goal of "Forging the first class brand, Being the pioneer of the industry", adheres to scientific and technological innovation, and walks on the way to different development. Relying on its advantage in talent, technology and capital, the Wolwa has also opened a new chapter in high-end equipment manufacturing.
