2t Agricultural Mini Tractor With Dual-stage Clutch for Sale in China

2t Agricultural Mini Tractor With Dual-stage Clutch for Sale in China thumbnail-1
2t Agricultural Mini Tractor With Dual-stage Clutch for Sale in China photo-1
US$ 5,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 44.1KW
Certificate Other, ISO,CE
Brand Name WOLWA
Model Number GN600
Place of Origin Shandong, China
After-sales Service Provided Overseas service center available


Product Introduction

Quick Details

Condition:

New

Type:

Wheel Tractor

By wheel:

2WD

Usage:

Farm Tractor

Brand Name:

GN

Model Number:

GN600

Place of Origin:

Shandong China (Mainland)











Packaging & Delivery

Packaging Detail:

Nudes packing

Delivery Detail:

30 Days

Specifications

1)Type:4*2
2)Tractor Model:GN600
3)Wheel base(mm):2044

Specification

Model

GN600

General Specifications

Type

4x2

Overall dimensions LxWxH(mm)

3829×1708×2200/2550

Constructional weight(kg)

1875/2255

Rated traction force(kn)

9.7

Wheel base(mm)

2044

Front wheel tread(mm)

1270(1270-1670)Adjustable

Rear wheel tread(mm)

1320(1220-1620)Adjustable

Min.land clearance(mm)

420

Min.quality in use(kg)

2109/2415

Front wheel tyre size

6.5-16

Rear wheel tyre size

13.6-28

Min.turning radius(mm)Unilateral Braking/Unilateral Nonbraking)

4.1/3.4



Engine

Model

YTR4105T91A

Type

Straight line,upright,water-cooled,4-stroke



12 hours power(kw)

44.1

Rated Speed(r/min)

2300

Fuel consumption(g/kw.h)

≤242

Max.torque(N.m)

≥232.1

Speed of Max.torque(r/min)

≤1500

BorexStroke(mm)

Φ105×120

Diesel Consumption(g/kW.h)

≤2.04

Starting mode

  Electric

Break System

Service Brake

 mechanical,wet,disk

Parking Brake

 locking pedaltype

Transmission

Clutch

 Dry type,single disk,two stage,constant mesh

Gear box

8F+4R,direct gear compound shaft,creeper gear and shuttle gear optional

Steering

 Hydraulic steering

Steering type

  Wheelsteering

Main Drive

 Spiral bevel gear

Differential Mechanism

 Dowel pin type,two planetary gearing,closed

Final Drive

 Single stage,external,planetary gearing

Operating System

Lifter tilling depth control

 Draft & position adjustable lifter

Max.lifting capacity(kn)

≥9.9

Suspension type

 postposition, Three- point,I category

Speed of P.T.O.(r/min)

(540,1000);or (720,1000),or (540,720)

Type of P.T.O.

Six splines, postpositional, semiindependent

Traction Equipment

 Swing draw bar

Optional Devices

 creeping gear,shuttle gear,air brake,rollbar and canopy,sealed luxury cabin and multi-way hydraulic output

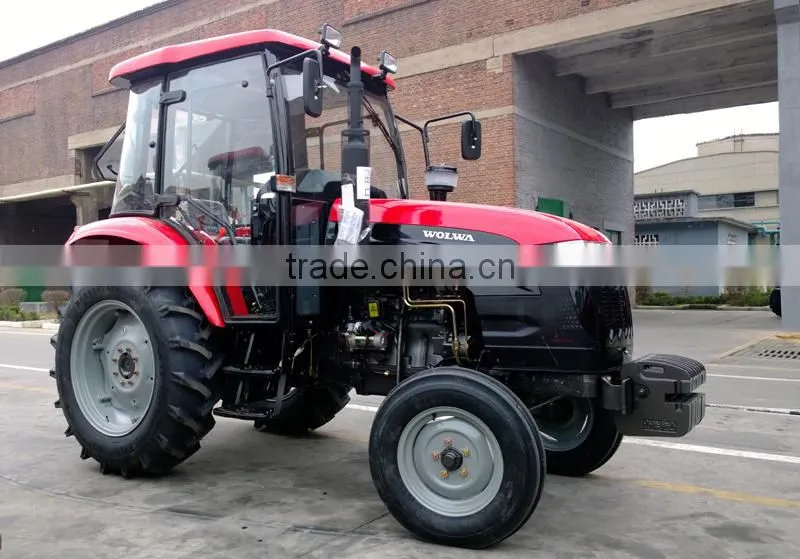

Figure Photos

2t agricultural mini tractor with dual-stage clutch for sale in china

Company Information

Shandong Wolwa Construction Machinery Co., Ltd is an advanced technology industry integrating research and development, production and sales. For ten years, Wolwa Group, with the goal of "Forging the first class brand, Being the pioneer of the industry", adheres to scientific and technological innovation, and walks on the way to different development. Relying on its advantage in talent, technology and capital, the Wolwa has also opened a new chapter in high-end equipment manufacturing.

Customers Visiting

2t agricultural mini tractor with dual-stage clutch for sale in china

Qualification&Certification

2t agricultural mini tractor with dual-stage clutch for sale in china

Our Factory

2t agricultural mini tractor with dual-stage clutch for sale in china

Our Service

2t agricultural mini tractor with dual-stage clutch for sale in china2t agricultural mini tractor with dual-stage clutch for sale in china2t agricultural mini tractor with dual-stage clutch for sale in china2t agricultural mini tractor with dual-stage clutch for sale in china
