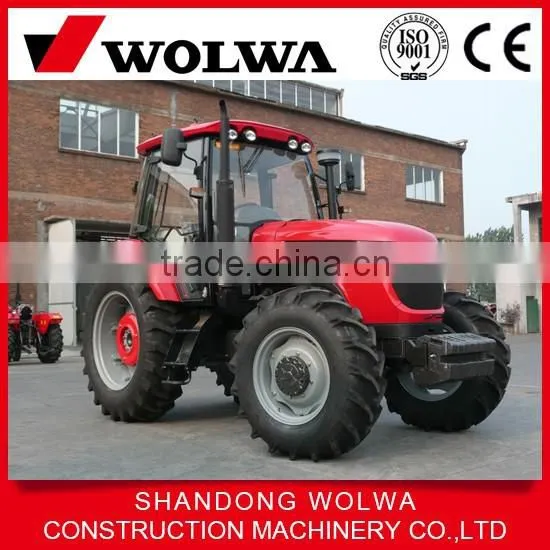

4.4t Agriculture Mini Tractor With Dual Stage Clutch

4.4t Agriculture Mini Tractor With Dual Stage Clutch thumbnail-1
4.4t Agriculture Mini Tractor With Dual Stage Clutch photo-1
US$ 5,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 88.2KW
Certificate Other, ISO,CE
Brand Name WOLWA
Model Number GN1204
Place of Origin Shandong, China
After-sales Service Provided Overseas service center available


Product Introduction

Specifications

1.120HP
2.Drive type:4WD

3.6 CYL engine

4.(F16+R8)gear box
5.dual stage clutch
6.Power steering
7.Synchromesh shift for main gearbox
8.Force & position consolidated adjustable hydraulic lifter with 2 forced cylinder
9.Differential lock
10.Dual speed PTO
11.Dual way hydraulic output valve
12.Front & rear ballast
13.Three-point suspension

14.Combined panel

15.Whole base plate & side handle

16.Cab with heater

17.Tire 14.9-26/18.4-38

Specification

Tractor Model

GN1204

General Specifications

Type

4 ×4

Overall Dimensions

L×W×H (mm)

4833 × 2080 ×2960 (with suspension)

Constructional weight (Kg)

4400

Traction force(KN)

42.00

Wheel base(mm)

2659

Front Wheel tread

1630-1960 for 4WD Adjustable

Rear Wheel tread

1504-2074 Adjustable

Land clearance (mm)

512

Engine

Type

LRC6105T51

Rated power (KW)

88.20

Fuel consumption (g/Kw.h)

240

Transmission

Clutch

LUK clutch (ingle disc, dry-type, dual stage, butterfly's shape spring is compressed tightly,independent operation)

Steering gear

The all hydraulic power steering

Working device

Max lifts capacity

25

PTO Shaft type

Independent and Synchronous P.T.O

 (R/min)

PTO Shaft Rated Speed

540/1000 (can choose720/1000)



Figure Photos

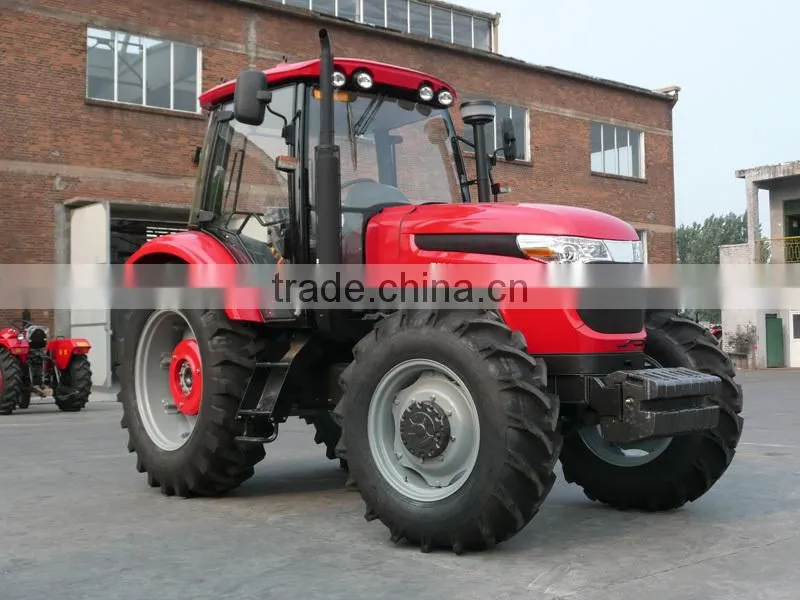

4.4t agriculture mini tractor with dual stage clutch
