Cane Grapple Wheel Loader With Sugar Cane Loader

Name: Cane Grapple Wheel Loader With Sugar Cane Loader
Brand: wolwa
SKU: 140741674
Availability: InStock

US$ 33,000 - 35,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

wolwa

Model Number:

DLS880-9AG

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao or tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name wolwa

Model Number DLS880-9AG

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 6300mm2000mm2700mm

Rated Load 500kg

Certification iso ce

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

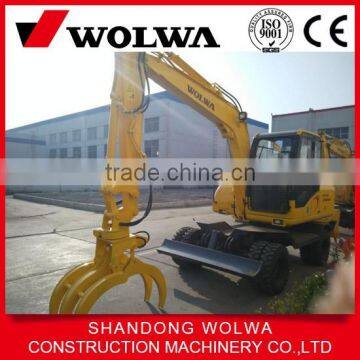

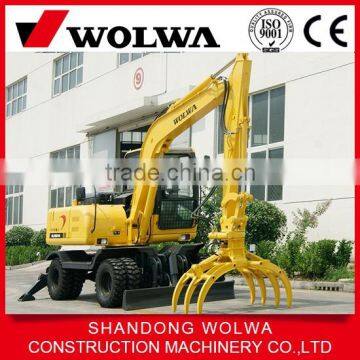

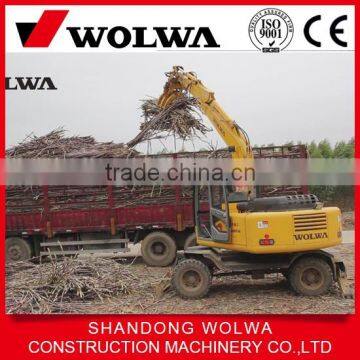

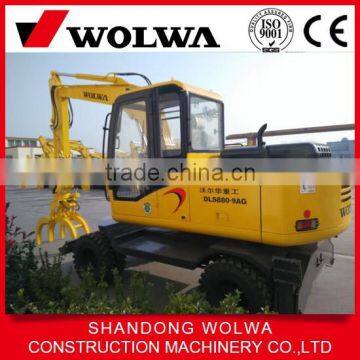

PRODUCTS PHOTO:

1.A strong energy-saving power system

2.operation environment is comfortable,safe,convenient.

3.intelligent operation and display the humanized design,convenient for maintenance and repair.

4.imported international brands of hydraulic components,small power loss,rapid operation.

5.boom,arm and bucket work device,strengthening,can ensure large mining force in bad working condition.

PRODUCTS SPECIFICATION:

The Parameter of DLS880-9A Loader
wheel hydraulic loader		unit	DLS880-9A
motor		model	Xinchai
hydraulic pump		model	SHIMADZU Japan
main val		model	Korea imported
Operating weight		kg	7200
power		kw/rpm	48/2300
Dimensions	overall width	mm	2000
	machine height (the top of the device)	mm	2710
	overall length	mm	6321
	machine height (the top of the swing arm)	mm	2730
	ground clear ance(bob-weight)	mm	985
	min.ground clearnce	mm	280
	tyre gauge	mm	1560
	wheel shaft diameter	mm	2310
	mouldboard width	mm	2024
	mouldboard height	mm	310
	outline dimension	mm	150010201600
	opening width	mm	1266
	grab weight	kg	390
Operating scope	boom length	mm	3500
	arm length	mm	2000
	max.loading range	mm	7439
	max.loading weight	kg	460
	max.dischargging height	mm	6639
Specifications	working pressure	Mpa	22
	rated flow	L/min	55*2
	swing speed	rpm	9.2
	travel speed	Km/h	0~30
	buckte digging force	KN	#
	arm digging force	KN	#
	max.hauling force	KN	43.2
	max.torque	N.m/rpm	230/1800
	gradeability	.	20
	fuel tank	L	125
	hydraulice oil tank	L	105
	rated acpacity	ml/r	2*25
