PRODUCT DESCRIPTION
Our factory wolwa is the professional manufacturer of small wheel excavator in china,the excavator range from 1.8 ton,2 ton,5 ton,8 ton,10 ton to 20 ton.

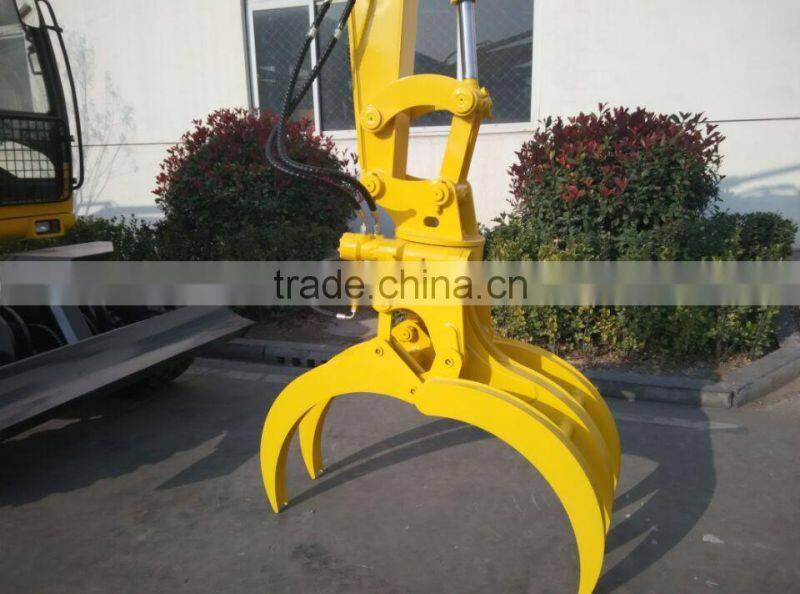

DLS880-9ag 8TON mini wheel excavator with grap specification
Working weight:7800KG
Bucket volume:0.3m3
grap loading weight:460kg
Power:55Kw/2300rpm
48Kw/2300rpm

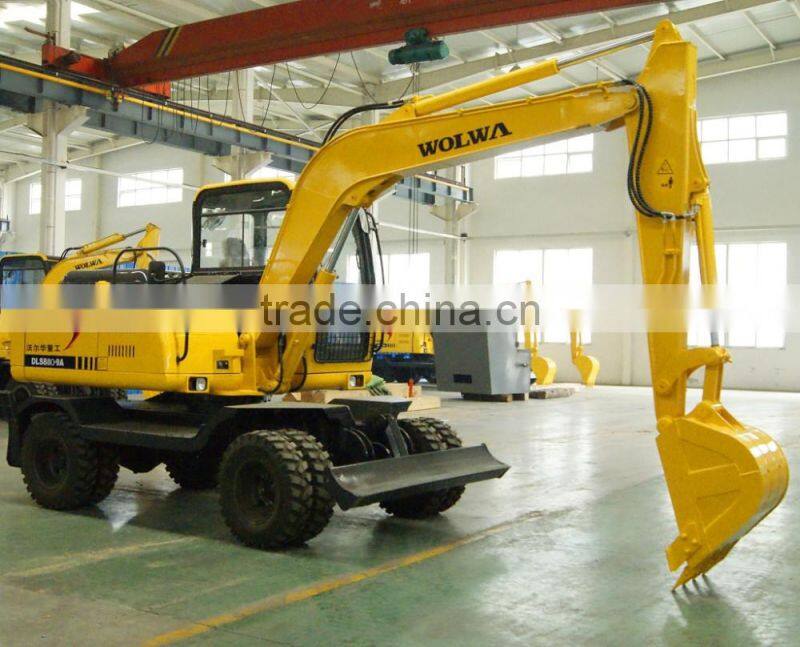

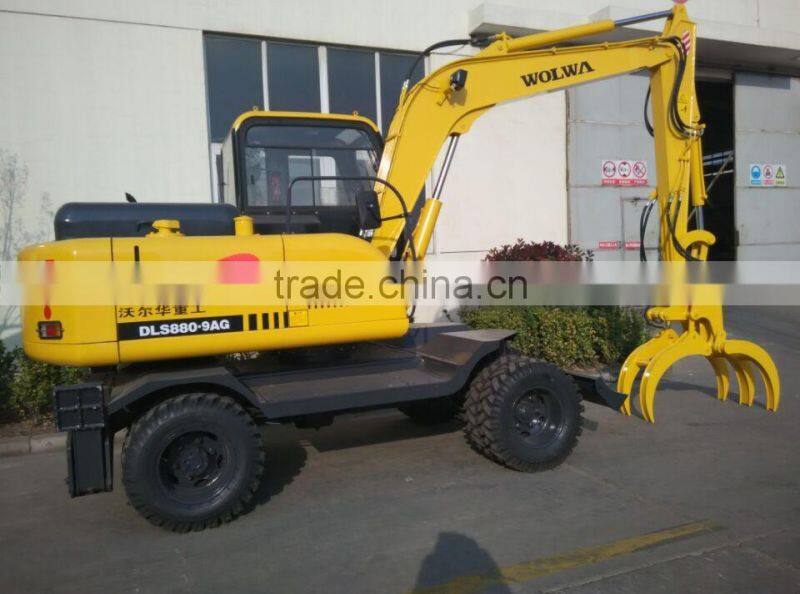

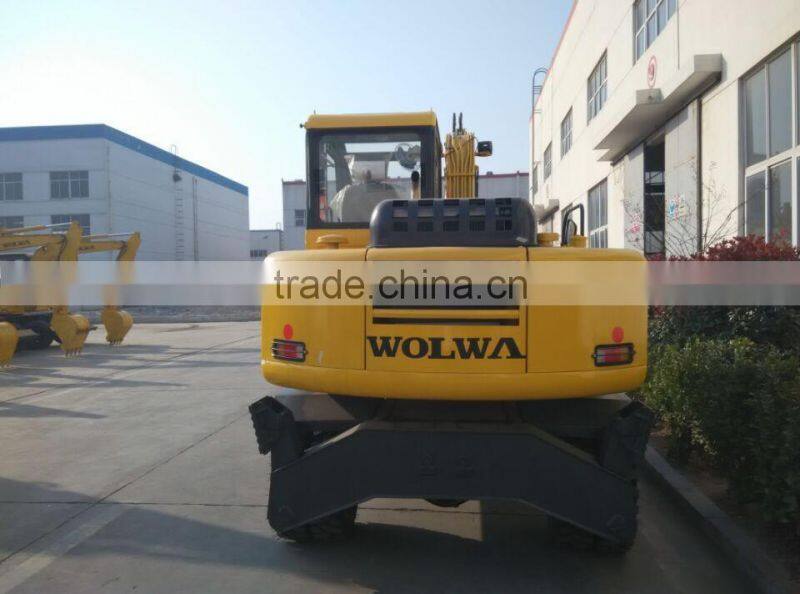

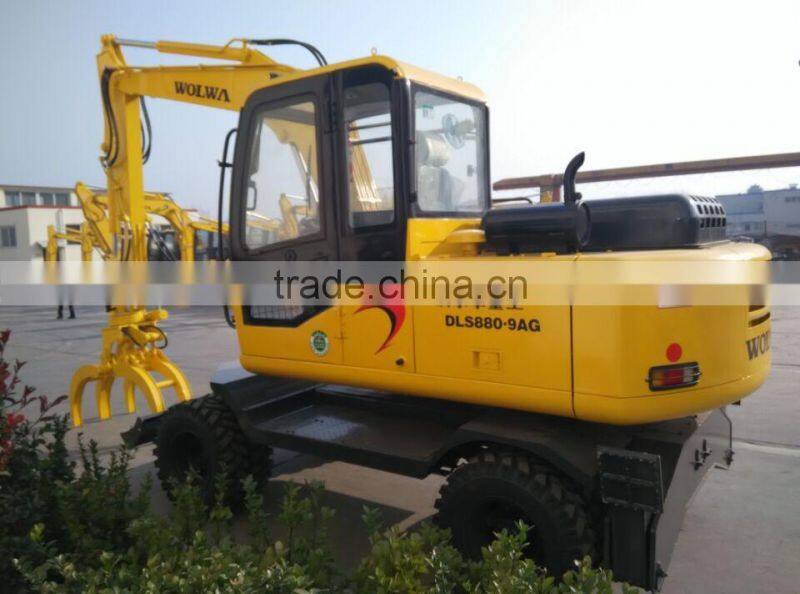

dls880-9ag wheel excavator photo
| The Parameter of DLS880-9A Loader | |||
| wheel hydraulic loader | unit | DLS880-9A | |
| motor | model | Xinchai | |
| hydraulic pump | model | SHIMADZU Japan | |
| main val | model | Korea imported | |
| Operating weight | kg | 7200 | |
| power | kw/rpm | 48/2300 | |
| Dimensions | overall width | mm | 2000 |
machine height (the top of the device) | mm | 2710 | |
| overall length | mm | 6321 | |
machine height (the top of the swing arm) | mm | 2730 | |
| ground clear ance(bob-weight) | mm | 985 | |
| min.ground clearnce | mm | 280 | |
| tyre gauge | mm | 1560 | |
| wheel shaft diameter | mm | 2310 | |
| mouldboard width | mm | 2024 | |
| mouldboard height | mm | 310 | |
| outline dimension | mm | 1500*1020*1600 | |
| opening width | mm | 1266 | |
| grab weight | kg | 390 | |
| Operating scope | boom length | mm | 3500 |
| arm length | mm | 2000 | |
| max.loading range | mm | 7439 | |
| max.loading weight | kg | 460 | |
| max.dischargging height | mm | 6639 | |
| Specifications | working pressure | Mpa | 22 |
| rated flow | L/min | 55*2 | |
| swing speed | rpm | 9.2 | |
| travel speed | Km/h | 0~30 | |
| buckte digging force | KN | # | |
| arm digging force | KN | # | |
| max.hauling force | KN | 43.2 | |
| max.torque | N.m/rpm | 230/1800 | |
| gradeability | . | 20 | |
| fuel tank | L | 125 | |
| hydraulice oil tank | L | 105 | |
| rated acpacity | ml/r | 2*25 | |
|
packing and shpping
certification iso and ce
customer visit
pls contact with me
