Small Wheel Grapple Loader With Back Fixed Leg and Front Blade

Small Wheel Grapple Loader With Back Fixed Leg and Front Blade thumbnail-1
Small Wheel Grapple Loader With Back Fixed Leg and Front Blade thumbnail-2
Small Wheel Grapple Loader With Back Fixed Leg and Front Blade thumbnail-3
Small Wheel Grapple Loader With Back Fixed Leg and Front Blade thumbnail-4
Small Wheel Grapple Loader With Back Fixed Leg and Front Blade photo-1
Small Wheel Grapple Loader With Back Fixed Leg and Front Blade photo-2
Small Wheel Grapple Loader With Back Fixed Leg and Front Blade photo-3
Small Wheel Grapple Loader With Back Fixed Leg and Front Blade photo-4
US$ 33,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
wolwa
Model Number:
DLS880-9AG
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao or tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name wolwa
Model Number DLS880-9AG
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 6300mm2000mm2700mm
Rated Load 500kg
Certification iso ce
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

PRODUCTS PHOTO:

1.A strong energy-saving power system

2.operation environment is comfortable,safe,convenient.

3.intelligent operation and display the humanized design,convenient for maintenance and repair.

4.imported international brands of hydraulic components,small power loss,rapid operation.

5.boom,arm and bucket work device,strengthening,can ensure large mining force in bad working condition.

small wheel grapple loader with back fixed leg and front bladesmall wheel grapple loader with back fixed leg and front bladesmall wheel grapple loader with back fixed leg and front bladesmall wheel grapple loader with back fixed leg and front blade

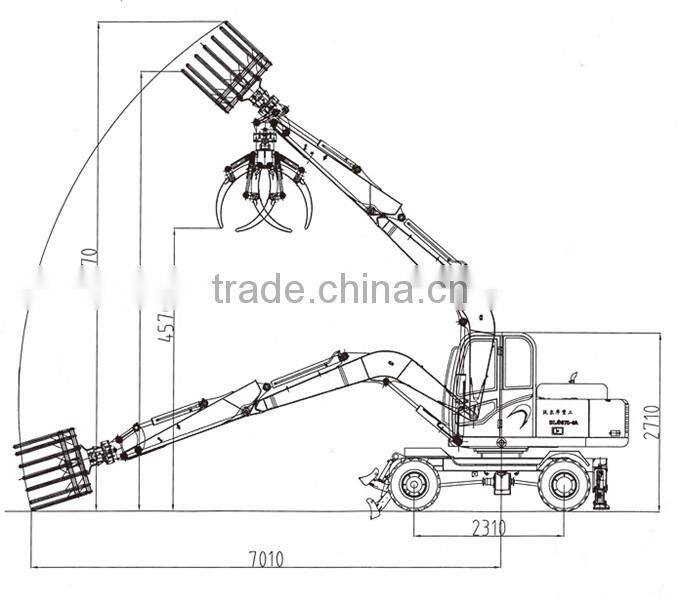

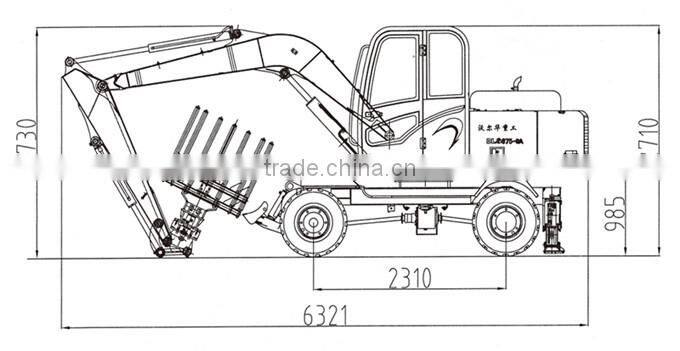

PRODUCTS SPECIFICATION:

small wheel grapple loader with back fixed leg and front bladesmall wheel grapple loader with back fixed leg and front blade

The Parameter of DLS880-9A Loader
wheel hydraulic loaderunitDLS880-9A
motormodelXinchai
hydraulic pumpmodelSHIMADZU Japan
 main valmodelKorea imported
Operating weightkg7200
powerkw/rpm48/2300
Dimensionsoverall widthmm2000

machine height

(the top of the device)

mm2710
overall lengthmm6321

machine height

(the top of the swing arm)

mm2730
ground clear ance(bob-weight)mm985
min.ground clearncemm280
tyre gaugemm1560
wheel shaft diametermm2310
mouldboard widthmm2024
mouldboard heightmm310
outline dimensionmm1500*1020*1600
opening widthmm1266
grab weightkg390
Operating scopeboom lengthmm3500
arm lengthmm2000
max.loading rangemm7439
max.loading weightkg460
max.dischargging heightmm6639
Specificationsworking pressureMpa22
rated flowL/min55*2
swing speedrpm9.2
travel speedKm/h0~30
buckte digging forceKN#
arm digging forceKN#
max.hauling forceKN43.2
max.torqueN.m/rpm230/1800
gradeability.20
fuel tankL125
hydraulice oil tankL105
rated acpacityml/r2*25




 small wheel grapple loader with back fixed leg and front bladesmall wheel grapple loader with back fixed leg and front bladesmall wheel grapple loader with back fixed leg and front blade
small wheel grapple loader with back fixed leg and front blade
