Small Wheel Skid Steer Loader With Breaker

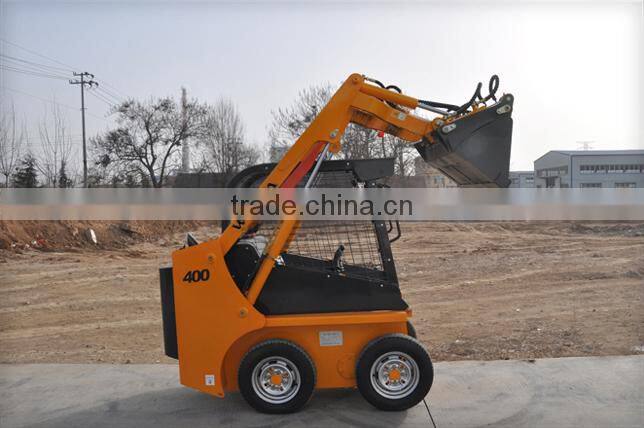

Small Wheel Skid Steer Loader With Breaker photo-1

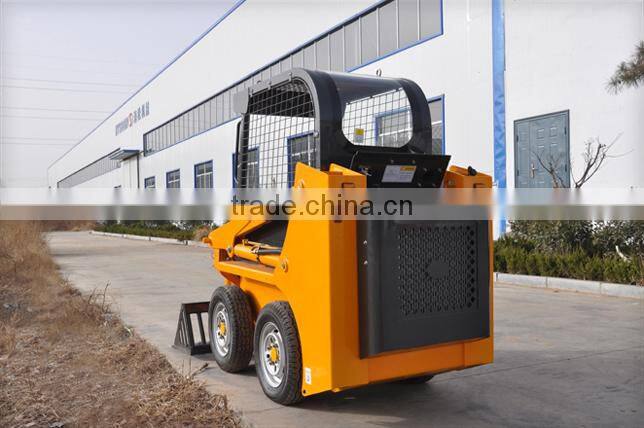

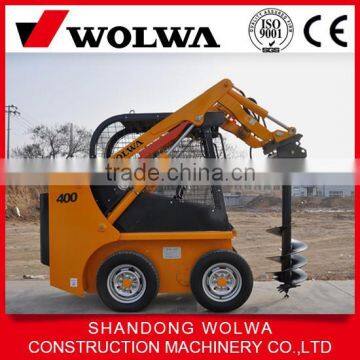

Small Wheel Skid Steer Loader With Breaker photo-2

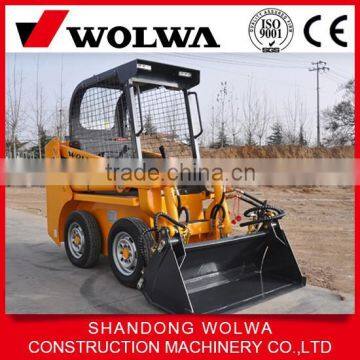

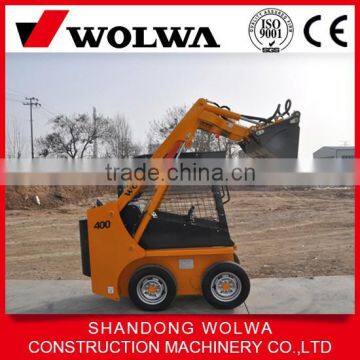

Small Wheel Skid Steer Loader With Breaker photo-3
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
WOLWA
Model Number:
GNHC35
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name WOLWA
Model Number GNHC35
Type Skid Steer Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 2900mm2000mm1300mm
Rated Load 500 KG
Certification ce iso
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Products specification:

Achieved a special chassis vehicle steering wheel equipment, wheel running gear, all-wheel drive, skid steer, random job site can be quickly replaced or mount devices using a variety of work on both sides of the wheel speed difference, to adapt to different working environment and job content.





small wheel skid steer loader with breakersmall wheel skid steer loader with breaker



Specifications



Rated operating capacity(kg)

500

Tipping load(kg)

1000

Bucket capacity(m3)

0.25-0.4

Operationg weight(kg)

2200

Max. travel speed(km/h)

12

Hydraulic pump flow(L/min)

75

Fuel tank capacity(L)

50

Tires

27*8.5-15-8NHS

Overall dimensions(mm)

2900mm2000mm1300mm

Dimensions



Height at maximum extension(mm)

3300

Height to bucket hinge pin(mm)

2725

Width with bucket(mm)

1300

Track width(mm)

1080

Wheelbase(mm)

891

Ground clearance(mm)

150

Dump angle

40°

Dumping height(mm)

2050

Maximum reach(mm)

790

Rollback at ground

26°

Angle of departure

20°

Engine



Maker/Model

YND485G

Net power

40hp/2600rpm

Type



4Cylinder in-line, Water cooled, 4 stroke, Diesel engine

Displacement(L)

2.156

Standard



dard bucket



Open-type operator cab



Hydraulic joystick controls



Auxiliary hydraulic couplers



Optional





Enclosed operator cab



Prehest starting assist system for extreme cold weather



Cab fitted with a heater as standard



Air conditioner



Introduction:

Achieved a special chassis vehicle steering wheel equipment, wheel running gear, all-wheel drive, skid steer, random job site can be quickly replaced or mount devices using a variety of work on both sides of the wheel speed difference, to adapt to different working environment and job content.


Product features:



1) World famous hydraulics, precision processing equipment, high quality quick coupler and with different attachments available



2) Attachments: 4 in 1 bucket, tooth bucket, pallet fork grapple, auger, hammer, fork, excavator, angle blade, mixer, grass cutter ,hedge trimmer, drum scraper ,etc.



3) Produced according to CE standard, with EPA engine



4) Cab (open and closed cab), colors as per clients' request






 small wheel skid steer loader with breaker
