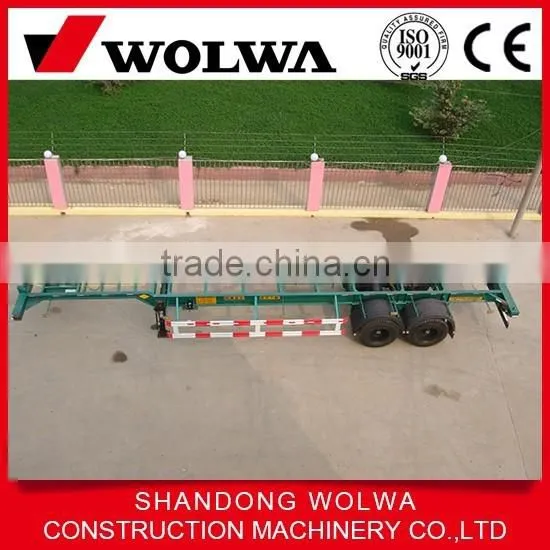

High Quality Cheap Skeleton Semi Trailer

US$ 1 - 15,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, iso

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, iso

Max Payload 45000

Place of Origin Shandong, China

Model Number skeleton semi trailer

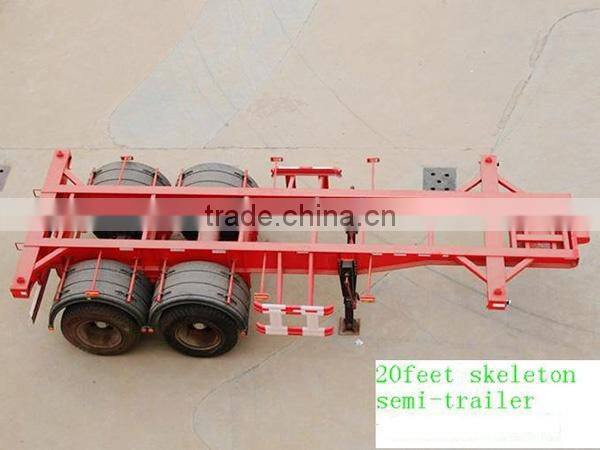

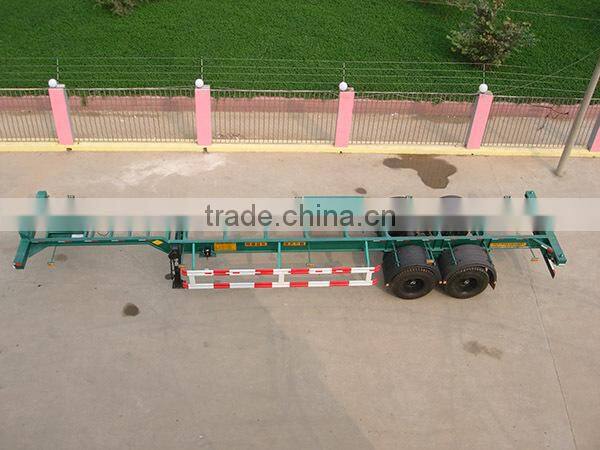

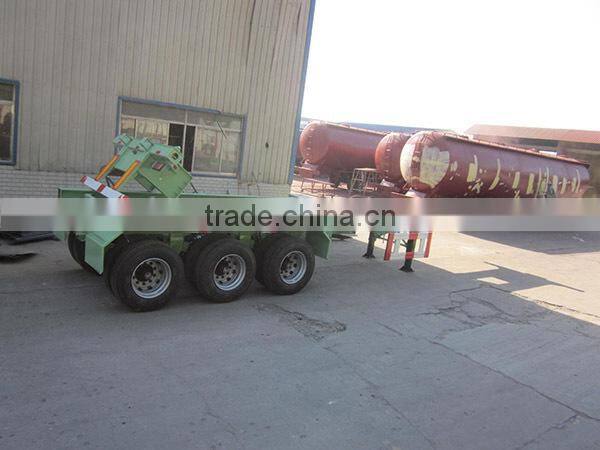

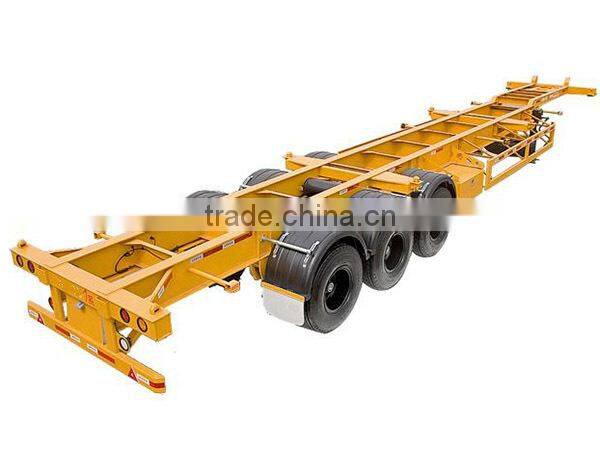

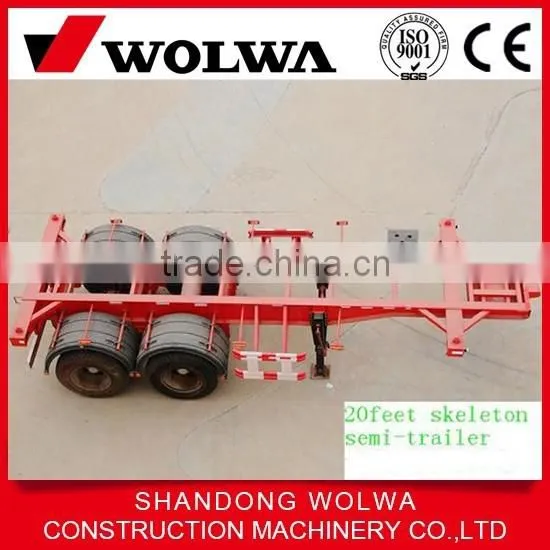

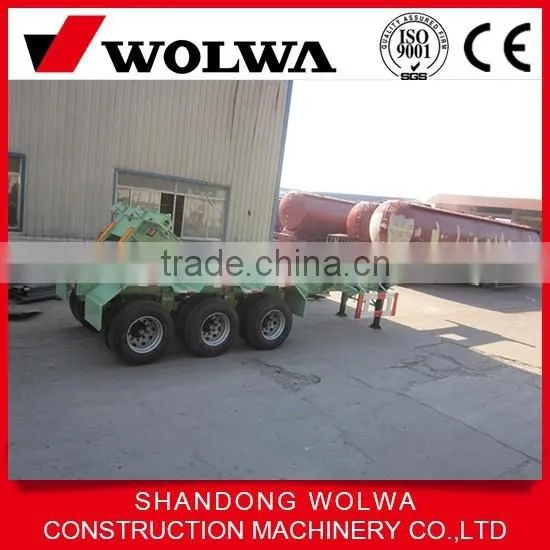

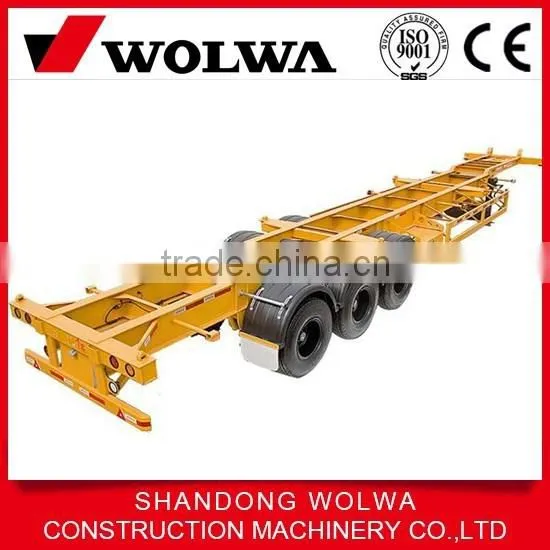

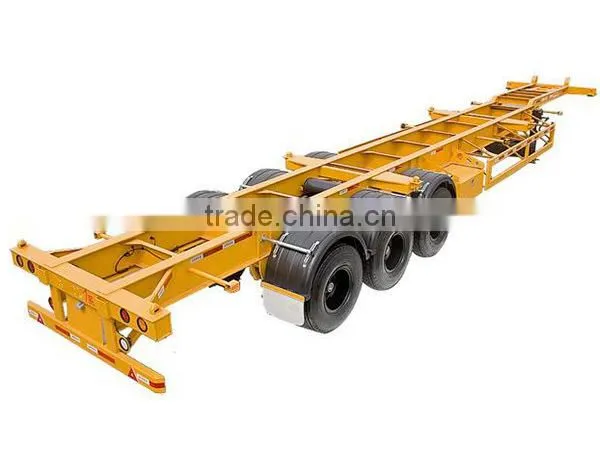

high quality cheap skeleton semi trailer

Tare Weight	About 7.5T
Dimension	*13560mm2490mm1575mm*
Loading Capacity (T)	≤ 45 T
Axle	3 axles, 13 T FUWA /Huajing Brand
Rim	9.00-22.5
Tire	12.00R22.5 Chengshan Brand 12pieces
Suspension	Mechanical suspension (America Type)
Spring leaf	*90(W)mm13(Thickness)mm10 Layer*
King pin	JOST brand 3.5inch bolts type
Support leg	China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm,Down plate is 16mm; Material is Q345B Steel.
Side wall	Height is 800mm, you can choose freely.
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); One piece of 45L air tanks
ABS	Without
Twist Locks	Eight pieces (Lifting type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely) (equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
