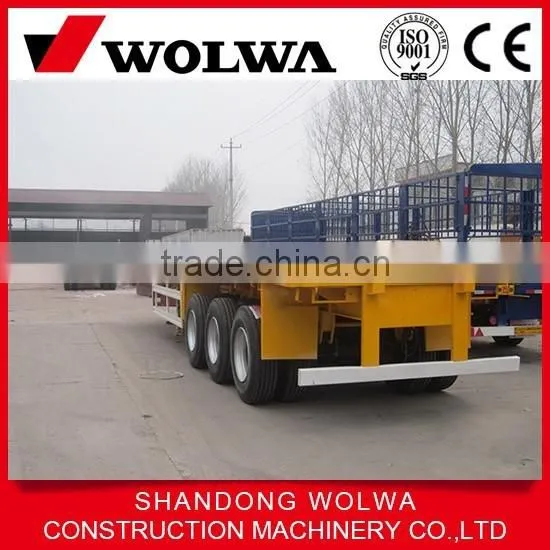

Hot Sale China Manufacturer Flat Bed Semi Trailer

US$ 1 - 15,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Size:

12450mm*2490mm*1575mm

Max Payload:

45000

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Size 12450mm*2490mm*1575mm

Max Payload 45000

Place of Origin Shandong, China

flat bed semi trailer

Tare Weight	About 7.1T
Dimension	12450mm2490mm1575mm
Loading Capacity (T)	≤ 45 T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	9.00-22.5 or 9.75-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 (especial for exporting market )
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm or 18mm channel steel (Material is Q235steel).
Bottom platform	3mm diamond steel plate
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) (especial for exporting market )
Valve	WABCO valve (especial for exporting market )
Light	LED light (especial for exporting market )
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
