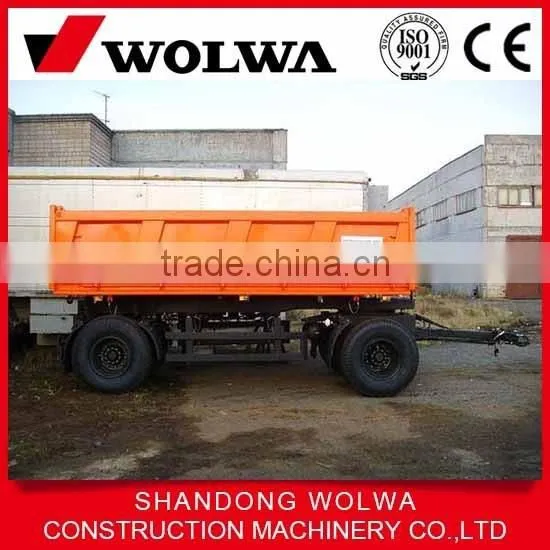

Dolly Full Trailer

US$ 1 - 10,000 MOQ: 1 Set

Key Specifications

Type:

Full Trailer

Material:

Steel

Size:

12450x2490x1575mm

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Full Trailer

Material Steel

Size 12450x2490x1575mm

Max Payload 45000

Place of Origin Shandong, China

dolly full trailer

Tare Weight	About 5.6-8T
Dimension	12450mm2490mm1575mm (Size can be choose freely)
Loading Capacity (T)	≤ 45 T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	9.00-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type (Optional) Or use turntable (diameter is 1.1m)
Draw Bar	44 or 46mm square tube (length is 1.4m )
Tractor Hook	DN50
Support leg	Without
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Platform	3mm diamond platform
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tank.
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
