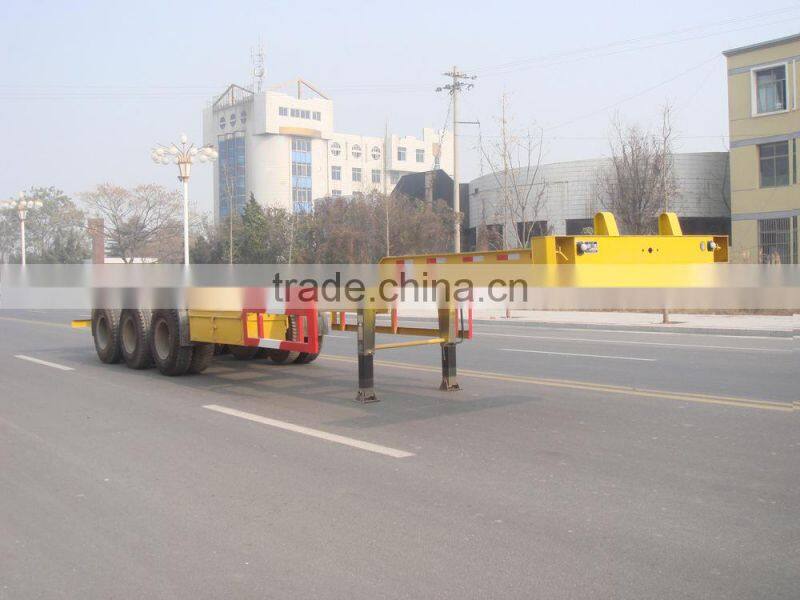

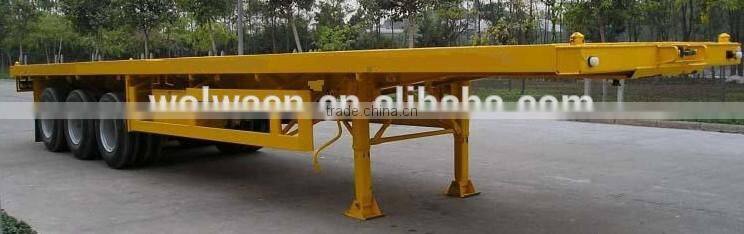

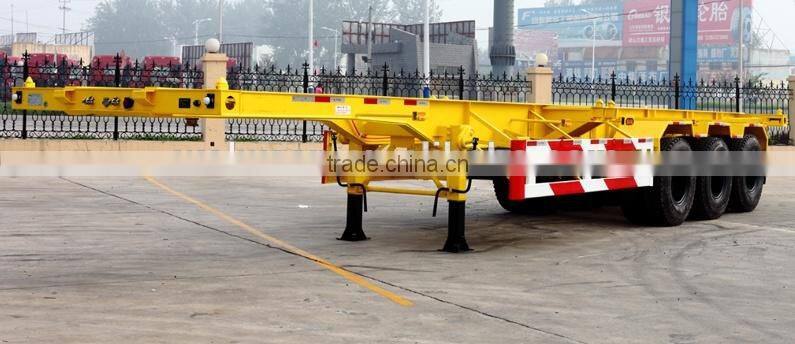

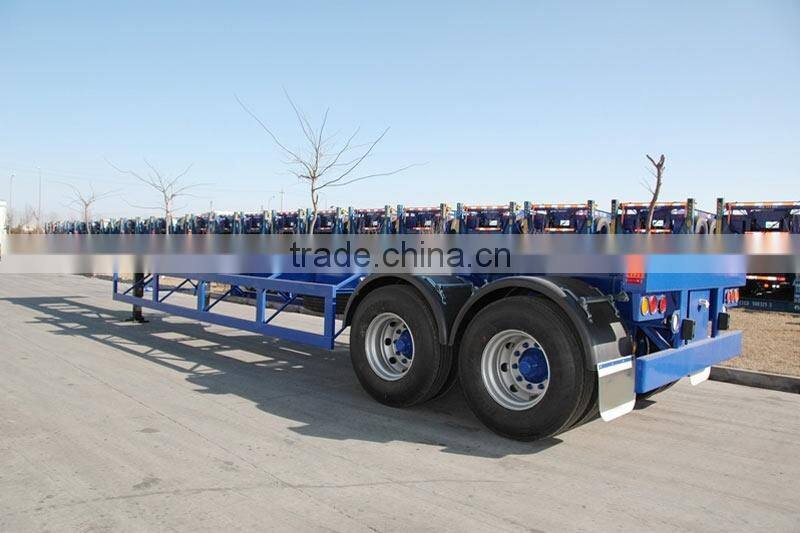

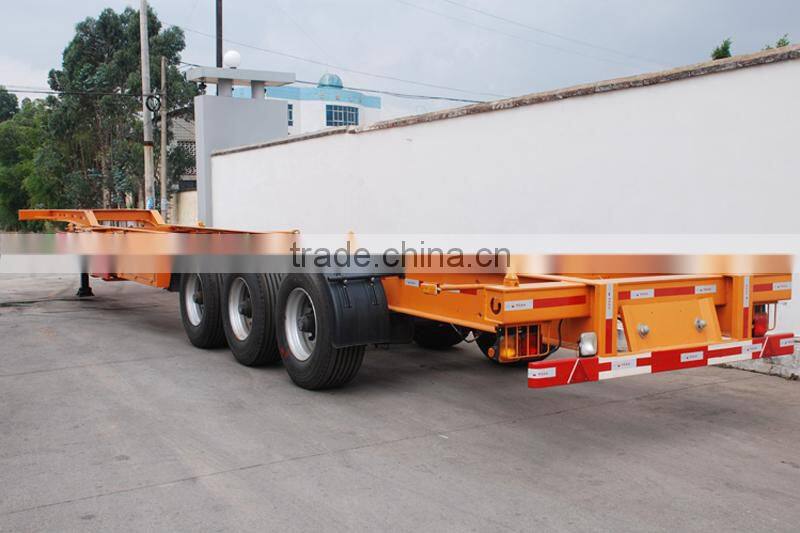

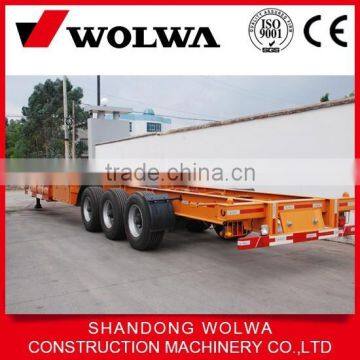

China Manufacturer Supply Skeleton Semi Trailer With High Quality

Name: China Manufacturer Supply Skeleton Semi Trailer With High Quality
Brand: wolwa
SKU: 140740934
Availability: InStock

US$ 1 - 15,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, iso

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, iso

Max Payload 4000kg

Place of Origin Shandong, China

Brand Name wolwa

Model Number skeleton semi trailer sale

skeleton semi trailer sale

Tare Weight	About 5.5 tons
Dimension	*12450mm2490mm1575mm (three or two axles)40FT*
Loading Capacity (T)	≤ 45 T(40FT)
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	9.00-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	*90(W)mm13(Thickness)mm10 Layer or* *100mm12mm12*
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm,own plate is 16mm ; Material is Q345B Steel .
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
